Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research

Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research
Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research

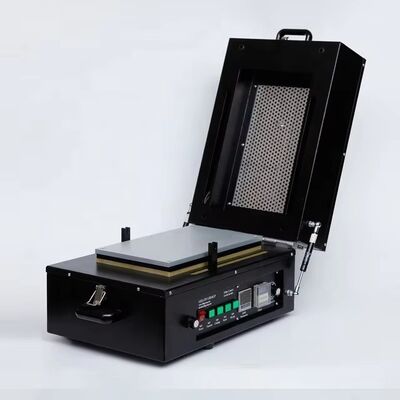

Large Image :  Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE,ISO9001
Model Number: GN-VC-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3606
Packaging Details: standard packing
Delivery Time: 25 Days
Payment Terms: T/T
Contact Now

Gelon Lab Electrode Coating Machine with Speed and Temperature Control for Battery Research

Description
Voltage: 110 V, 220 V Gas Source: 0.5~0.8MPa Argon
Machine Type: Coating Machine Power(w): 1.9KW
Dry Temperature: 100°C Or To Be Request
Highlight:

Electrode Coating Machine with Speed Control

,

Lab Coating Machine with Temperature Control

,

Pouch Cell Electrode Coating Equipment

Specification
GN-VC-10 automatic coater is designed to produce consistent thick film with heating cover. It has a unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet on plate faster and easy, which is particularly useful when coating on thin substrate and make uniform tape casting.
One 100 mm width micrometeradjustable applicator is included for immediate use. Heating cover with digital temperaturecontroller can dry film after coating up to 200°C within +/-1°C. This machine is being used for research for ceramic tap casting and Li-Ion battery electrode coating.
Power
1KW
Dry Temperature
100°C or to be request
Vacuum pump
Contains
Speed
10-100mm/sec variable
Coating Length
250mm --1000mm
Max. Coating Width
300mm
Products Features:
1. Coating width can be customized from 100mm to 300mm,coating strength is from 250mm to 1000mm.
2. Oilless vacuum pump is included.
3. Traverse Speed:10-100mmc variable.
4. Heating device can be inside cover,can be bottom or both with heating.
