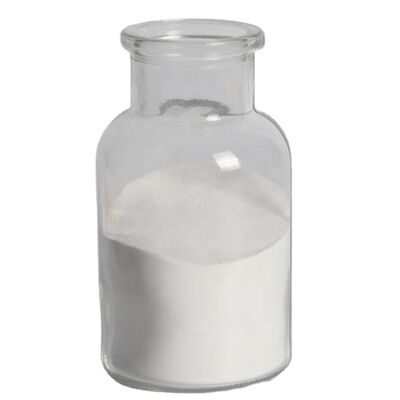

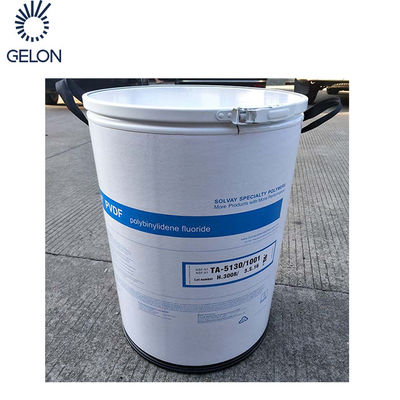

100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity

100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity
100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity 100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity 100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity 100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity 100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity

Large Image :  100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-5130
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 33 USD — 60 USD
Delivery Time: 15 — 20 Working Days
Payment Terms: T/T
Contact Now

100% PVDF Resin Polyvinylidene Fluoride Powder with High Thermal Stability and High Electrical Resistivity

Description
Product Type: Polyvinylidene Fluoride (PVDF) Ingredient: 100% PVDF
Melting Point: 164–174°C Shore Hardness: D 76–80
Strength At Break:: 34–43% Flexural Modulus At 23°C:: 1360–2210 MPa
Highlight:: 100% PVDF PVDF Resin, High Thermal Stability Polyvinylidene Fluoride, High Electrical Resistivity PVDF Powder Material Form: Powder
Density: 1.77–1.79 Melt Viscosity (230°C, 100 S⁻¹): 4450–5450 Pa·s
Strength At Yield: 40–55 MPa Elongation At Break: 50–250%
Highlight:

PVDF resin high thermal stability

,

polyvinylidene fluoride powder high resistivity

,

PVDF powder battery material

Product Overview

GN-5130 is a polyvinylidene fluoride (PVDF) material supplied in powder form. Its documented physical, mechanical, thermal, and electrical properties make it suitable for evaluation in applications requiring a fluoropolymer material with good thermal stability and high electrical resistivity.

Key Features
  • PVDF polymer material
  • Low water absorption
  • High thermal stability
  • High surface and volume resistivity
  • Technical properties provided for material evaluation
Technical Specifications
Property Typical Value
Model GN-5130
Material Polyvinylidene Fluoride (PVDF)
Density 1.75–1.78 g/cm³
Water Absorption (23°C, 24 h) <0.20%
Tensile Modulus 1000–1500 MPa
Glass Transition Temperature -40°C
Melting Temperature 160–168°C
Peak Crystallization Temperature (DSC) 135–140°C
Heat Stability >375°C
Heat of Fusion 40–48 J/g
Surface Resistivity >1.0 × 10¹⁴ Ω
Volume Resistivity >1.0 × 10¹⁴ Ω·cm
About Gelon

Gelon supplies materials and equipment for lithium battery manufacturing and related applications. Please contact us for product information and technical documentation.

For inquiries, please specify your intended application, required quantity, and any relevant material requirements so we can help assess suitability.
