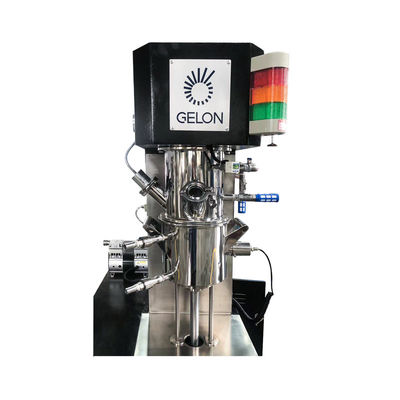

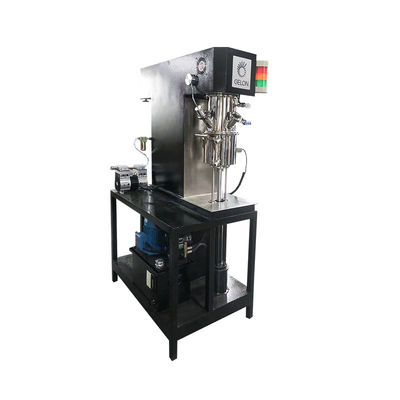

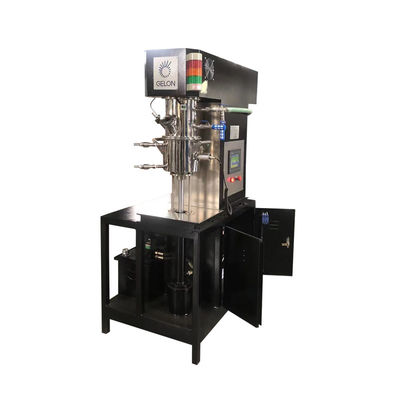

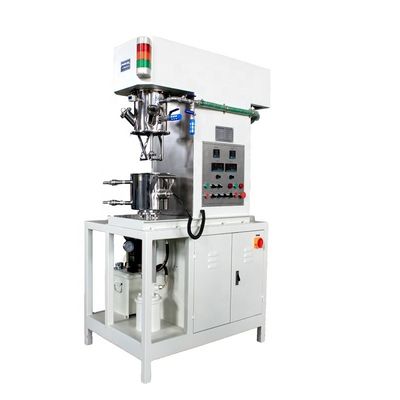

Double Planetary Mixer for Mixing Cathode Slurry of Laboratory Lithium Battery 2L 5L 10L

Double Planetary Mixer for Mixing Cathode Slurry of Laboratory Lithium Battery 2L 5L 10L

Main equipment parameters:

• Mixing tank
• Material: 304SS
• Design volume:8L
• Working volume:2.7-5L
• Design environment temperature:-10～+120°C
• Move mode: caster moving

• Mixing unit
• Working frequency: 5-50hz
• Power of mixing: 1.5kw
• Stirring paddler speed: 10-98rpm
• Stirring paddler diameter: 124mm
• Materials of stirring paddler: 304SS
• Line speed of stirring paddle:0.06-0.6m/s
• Stirring paddler quantity: 2

• Dispersed part
• Dispersed power: 2.2kw
• Dispersed speed: 610-6100rpm
• Diameter of dispersion disk:70mm
• Dispersed line speed:2.2-22m/s

• Vacuum design requirement: customer must provide vacuum system exhaust 2L/S (2X-2)
• Vacuum holding:-0.098Mpa, Keep pressure higher than -0.085 Mpa24 hours, do not leak into the barrel
• Total mainframe power:＞4kw
• Whole machine weight:about 700kg
• Equipment size:1463mm L x 610mm W x 1770mm H
• Appearance color:Black
• Ground bearing:900kg/㎡
• Power: AC 3 x 220V±5%, 50Hz
