Product Details:
|
PProduct Name: | Pneumatic Cylinder Cell Crimping Machine | Sealing Pressure: | Min.80Kg, Max.1400Kg |
---|---|---|---|
Mold Life: | ≤300,000 Times | Sealing Efficiency: | 60 Seconds /pc |
Weight: | About 42Kg | Equipment Size: | Approx. L280 * W280 * H470mm |
Sealing Stroke: | 30mm |

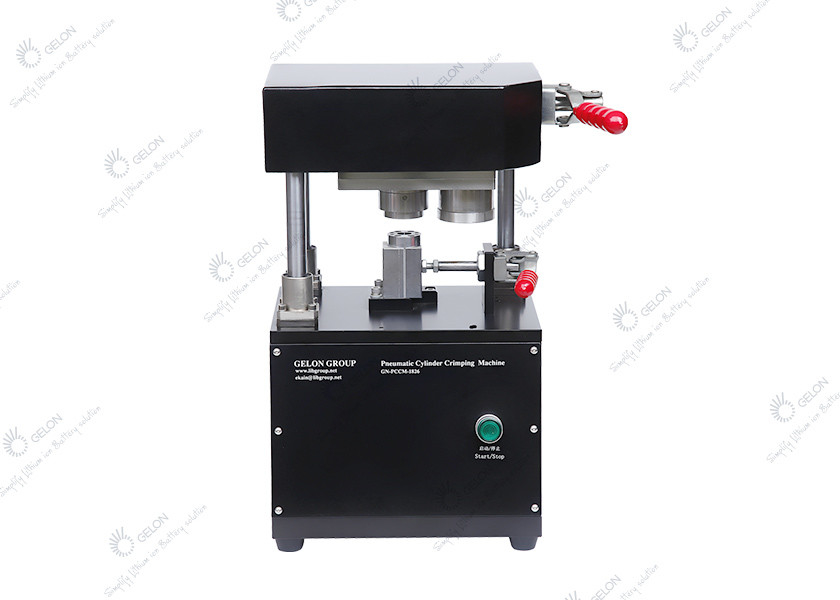

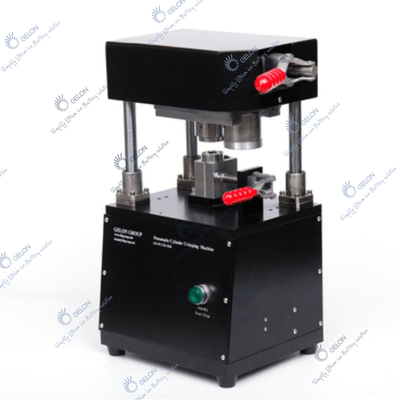

The pneumatic cylinder sealing machine is used for the sealing process of cylinder batteries and is driven by a cylinder. It is mainly used for laboratory research, and can also be used for small batch trial production in factories. The standard mold is used to seal the 18650 battery. After changing the mold, other size cylindrical batteries (such as 21700, 26650, 32650, etc.) can be sealed.
Features:
1. Pure pneumatic operation, no need for electricity, convenient and easy to use.
2. Smooth operation and stable sealing.
3. The built-in pressure gauge can observe and accurately control the sealing pressure.
4. Pneumatic high-pressure drive is adopted, and the battery seal has no vibration and no air leakage.

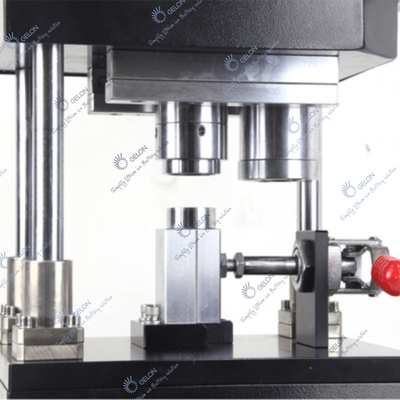

5. Precise mold design ensures accurate and reliable sealing molding, firm steel structure design.
6. The Φ360 transition compartment of the glove box can pass directly if there are no obstacles (slides), with small size and convenient operation.
Product name |
Lab Cylinder Cell Crimping Machine |
Power supply |
AC220V/50Hz.AC110V/60Hz |
Sealing stroke |
30mm |
Sealing pressure |
Min.80Kg, Max.1400Kg |
Pressure accuracy |
±1.5% |
Mold life |
≤300,000 times |
Sealing efficiency |
60 Seconds /pc (Reference to the 18650 Battery) |
Equipment size |
approx. L280 * W280 * H470mm |
