60mm/sec Small Coating Machine With Automatic Drying Function

60mm/sec Small Coating Machine With Automatic Drying Function
60mm/sec Small Coating Machine With Automatic Drying Function 60mm/sec Small Coating Machine With Automatic Drying Function 60mm/sec Small Coating Machine With Automatic Drying Function 60mm/sec Small Coating Machine With Automatic Drying Function 60mm/sec Small Coating Machine With Automatic Drying Function

Large Image :  60mm/sec Small Coating Machine With Automatic Drying Function

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: GN-VC-25H
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD$4800
Packaging Details: woodbox
Delivery Time: 30~45 day
Payment Terms: T/T, L/C
Supply Ability: 50 pc/ month

60mm/sec Small Coating Machine With Automatic Drying Function

Description
Coating Speed: 0~60mm/sec Maximum Stroke: 300mm
Vacuum Plate: Aluminum Vacuum Suction Plate Adjustable Range Of Scrape: 0.02~3.5mm
Power Supply: 220V/50Hz Weight: About 90KG
Dimensions: 1076mm * 495mm * 390 Mm
High Light:

automatic small coating machine

,

60mm/sec lab coater machine

,

drying small coating machine

Laboratory Coating machine

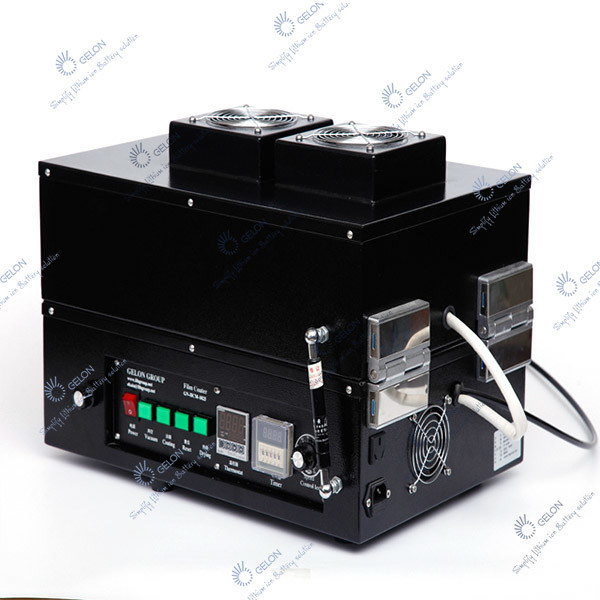

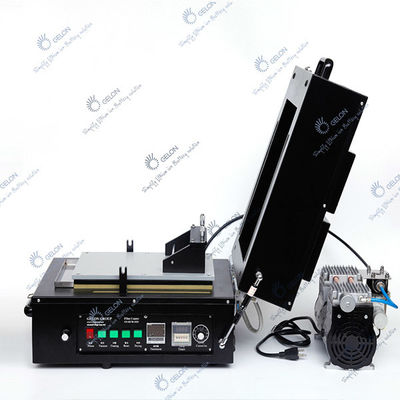

60mm/sec Small Coating Machine With Automatic Drying Function 0

                                  (The picture is just for reference)





1. Overview of equipment characteristics

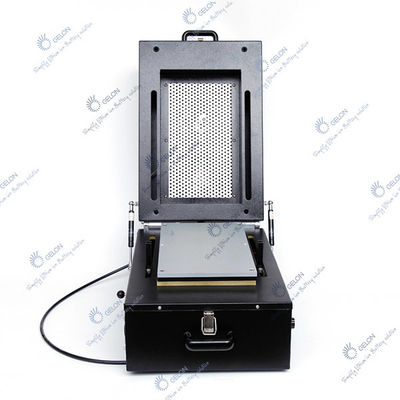

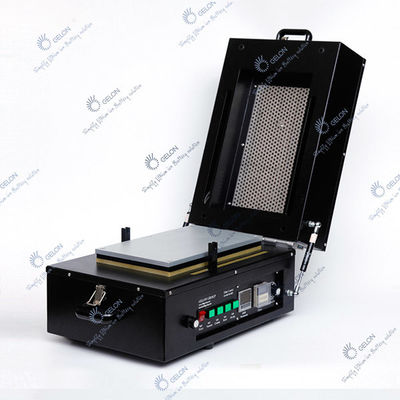

This product is a small coating machine with automatic drying function. The precision film maker is pushed at a uniform speed to achieve a smooth and uniform coating effect. The equipment uses vacuum suction to fix the substrate, so that the substrate will not be wrinkled during the coating process, so that the coating is smoother. After coating, the sample can be heated and dried by closing the upper cover of the instrument. The maximum temperature can reach 180°C, and the temperature control accuracy is ±2°C. This device is particularly suitable for the preparation of solid electrolytes and lithium battery pole pieces. It is widely used in the research of various high-temperature coating films, such as battery material films; it can adapt to the development of film-forming technology under high-temperature conditions in the future.



2. Technical parameters



(1). Film coating speed: 060mm/sec;
(2). Maximum stroke: 300mm;
(3) Vacuum plate: Aluminum vacuum suction plate;
(4) Adjustable range of scraper: 0.023.5mm;
(5)Heating drying system: RT180℃, digital display temperature controller, accuracy ±3℃
(6)Power supply: 220V/50Hz;
(7) Power: 1200W
(8) Weight: about 90KG;



3. Maintenance methods and precautions

(1). After each use, clean the vacuum plate and various parts of the body with a dust-free cloth dipped in alcohol.

(2). Regularly check the screws, nuts and other fasteners on each part of the coating machine to prevent loosening and prevent safety accidents.

(3). During operation, it is strictly forbidden to extend hands and other moving parts into the working dangerous area to cause personal injury. During operation, two or more persons are not allowed to operate to avoid accidental injury.

(4). Non-technical personnel and non-designated personnel cannot disassemble and debug the equipment arbitrarily.

(5). Do not disassemble circuit components without authorization.

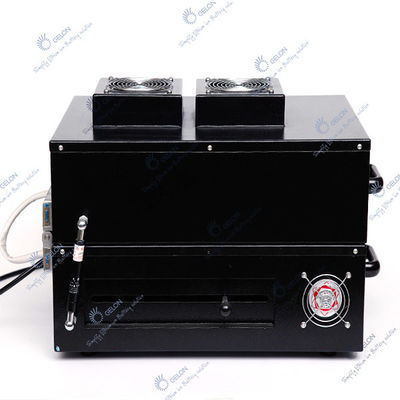

60mm/sec Small Coating Machine With Automatic Drying Function 160mm/sec Small Coating Machine With Automatic Drying Function 2
