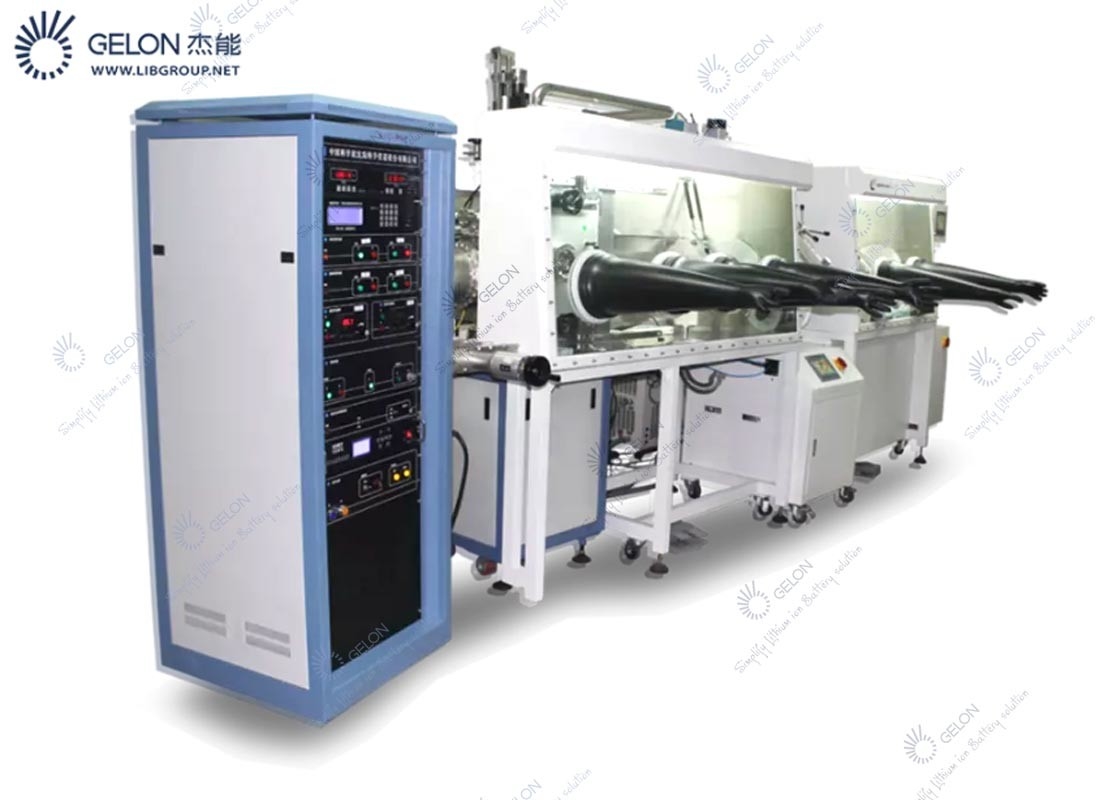

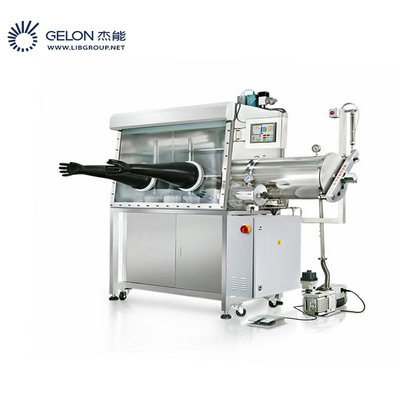

One Side Double Working Station Glove Box

One Side Double Working Station Glove Box
One Side Double Working Station Glove Box One Side Double Working Station Glove Box One Side Double Working Station Glove Box One Side Double Working Station Glove Box

Large Image :  One Side Double Working Station Glove Box

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-GN-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 30000-40000
Packaging Details: standard wooden box
Delivery Time: 30-45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500pcs /month

One Side Double Working Station Glove Box

Description
Function: For Battery Electrolyte Filling And Other Related Research H2O: <1ppm
O2: <1ppm Materials: Stainless Steel 304
Oxygen Analyzer: Range 0-1000ppm Water Analyzer: Range 0-500ppm
Antechamber: 4
High Light:

1ppm Pouch Cell Assembly Equipment

,

double working Station Glove Box

,

electrolyte filling Pouch Cell Assembly Equipment

1ppm One Side Double Working Station Glove Box For Pouch Cell Electrolyte Filling Pouch Cell Assembly Equipment




 Product name

Glove Box  (customize solution )
Voltage
AC220V / 50HZ or  customize
Vacuum pump
Degree less than 2x10-3pa
Oxygen Analyzer
Range 0-1000ppm
Water Analyzer
Range 0-500 ppm
Size
2440*800*1900mm
Weight
950kg
Control System
Siemens PLC
Purifier
Single Column



From Single to Multiple workstation systems, to be operated either side by-side or face to face. with integrated Gas purification system(1 Purifier), PLC controller and HMI, incl. sealed box, In and outward transfer antechamber, inclined operation sides with replaceable sight glass and vacuum pump etc. Attainable purity, H2O<1ppm., O2<1ppm.

Closed loop gas circulation
Inert gas closed loop, gas circulation by blower and purifier, H2O, O2 can be removed continuously.

Auto purging
The replacement of atmosphere inside glove box can be achieved automatically by purging valves.

Automatic regeneration
H2O and O2 removal material can be regenerated. The regeneration process can be program-controlled.

Pressure control in box
The pressure in glove box is controlled automatically by PLC. Working pressure can be set between +10mba and -10mba, in case of pressure over +/- 12mbar the system will be protected automatically.

Automatic vacuum pump control
The vacuum pump will be activated automatically when necessary and will turn off after a period of idle time.



Main antechamber
* 1 Big Cylindrical type antechamber, made of stainless steel 304 ;
    Dia.360mm, length =600mm, right or left side;
* With sliding tray inside the antechamber;
* Spindle lock door, vertical operation with lifting mechanism;
* Touch screen automatic operation via solenoid.


Mini antechamber
* 1 Mini Cylindrical type chamber , make of stainless steel 304;
   Dia. 150mm, length=300mm(100 mm access into the glove box ),
right or left side;
* Screw-lock door;
* Manual operation via hand valve.







One Side Double Working Station Glove Box 0

One Side Double Working Station Glove Box 1One Side Double Working Station Glove Box 2One Side Double Working Station Glove Box 3



One Side Double Working Station Glove Box 4One Side Double Working Station Glove Box 5One Side Double Working Station Glove Box 6One Side Double Working Station Glove Box 7
