|Production Name:||Lithium Ion Battery Production Equipment Roll To Roll Slot Die Coating Machine||Usage:||Lithium Ion Battey Research And Production|
|Shipping:||By Sea/Air/Express/Land||Supply 1:||Lithium Ion Battery Raw Material|
|Supply 2:||Lithium Ion Battery Production Equipment||Supply 3:||Lithium Solid Battery Raw Material|

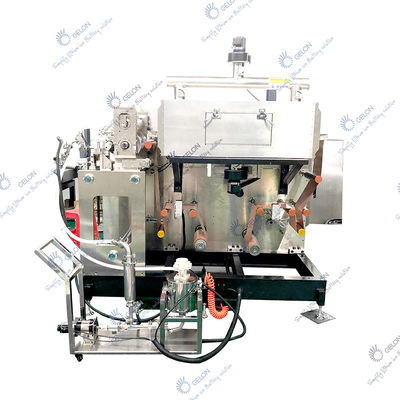

Lithium Ion Battery Production Equipment Roll To Roll Slot Die Coating Machine
The GN-360S is an all-in-one machine with a variety of coating options to meet different coating process needs. It is mainly used for the surface coating process for l i thium battery Cathode and Anode, and it is an experimental coating equipment with high precision and stability. The device can realize two methods of slot die extrusion coating and comma bar coating by switching the coating mode and the coating head assembly,continuous coating and intermittent coating can be achieved. Reserve test communication interface or test system with thickness/surface density; Electrode tension control, constant tension unwinding, constant tension coating, drying; System parameters are centrally controlled, the man-machine interface adopts touch screen and keystroke mode, and hierarchical control, and process parameters can be l ocked, stored and called.
I . Features
Modular structure can achieve two different coating methods
(1) Comma bar coating method
1 . Continuously coating is ok, and its with a wider coating window;
2. Use comma bar with precision adjustment mechanism and micrometer to achieve thickness adjustment;
3. Feeding with trough;
(2) Slot die coating method
1 . Coating valve cooperating with die gasket, user can achieve continuous coating,intermittent coating, Strip coating, grip coating, etc;
2. Metering pump feeding, slurry closed operation, user can adjust the feeding amount according to the coating speed;
3. Slot die coating with high coating precision and good coating consistency;
1 . The system uses EtherCAT bus control;
2. Substrate closed-loop tension control;
3. Equipped with infrared, unwinding correction, winding correction, and high correction precision;
4. Baking method, hot air oven, hot air circulation, air blowing up, user can get good dry effect;
|Effective Coating Width||<380mm|
|Weight range of single coated film||35 ～ 300g/ ㎡|
|Power supply||380V x 50Hz,3 phase (control power supply 220 V x 50Hz, single phase) voltage fluctuation range 10%~-10% voltage fluctuation range|
|Total power||Maximum 15KW (When electric heating, the normal working power is about 40% of the maximum starting power.) Control heating with a power amplifier.|
|Gas source||0.6MPa~0.8MPa, air pressure fluctuation ±1%(clean air after water removal, no oil, filtration, steady pressure, )compressed air consumption 0.5 m3/h; compressed air is divided into two ways one for coating valve, equipped with special gas storage tank (0.3 m3/h), the other way to feed pressure belt cylinder, clamping cylinder and so on (0.2 m3/h).|
|Appearance Color||Nickel plated nose, box part stainless steel, black or customer specified|
|Ground requirements||The foundation is cement ground or terrazzo ground, flatness ±5 mm/ ㎡ , bearing capacity 1500 ㎏ / ㎡|
|Coating Part temperature||23 ± 4 ℃|
|Coating part humidity||45 ％ RH (No condensation)|
Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
