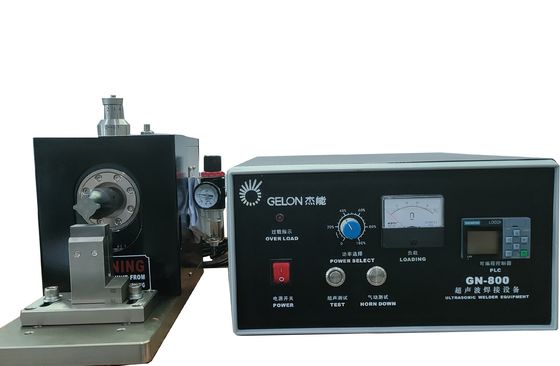

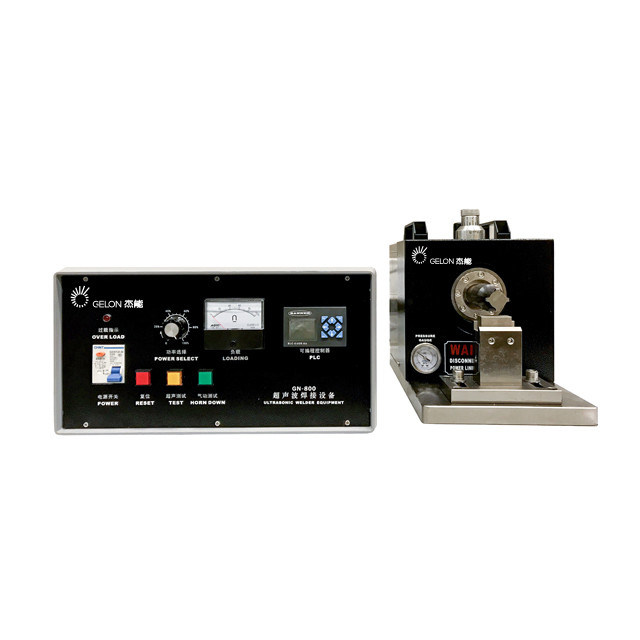

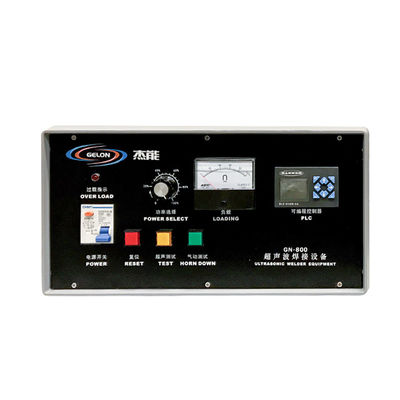

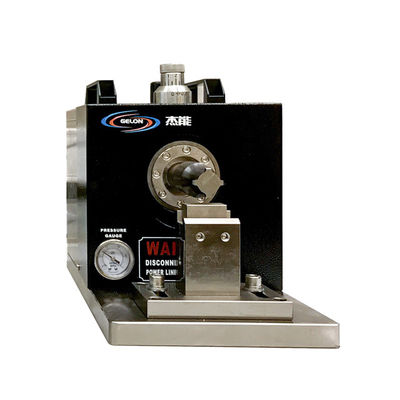

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine
Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine

Large Image :  Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD3520/set
Packaging Details: Standard wooden box for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 50 sets per month

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine

Description
Production Name: Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic Welding Machine Usage: Lithium Ion Battey Research And Production
MOQ: 1 Pc Customzie: YES
Shipping: By Sea/Air/Express/Land Supply 1: Lithium Ion Battery Raw Material
Supply 2: Lithium Ion Battery Production Equipment Supply 3: Lithium Solid Battery Raw Material

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine



Ultrasonic welding Machine as a clean,high efficency ,precise and economic welding technology , ultrasonic welding has been widely used in many industries such as battery production ,electronics ,appliances and auto manufacture etc.





ITEM  VALUE
Max output power 1000VA
frequency: 5KHZ±10%
input voltage 220V±10%
air supply pressure 0.4~0.6Mpa,humidity less than 48%,high temperature not exceed 45 ℃ .
control way CPU
working stroke 15mm
welding time l ess than 1S
welding ability multilayer copper and aluminum below 0.3mm
Welding Head Size 420mm x180mm x290mm (L*W*H)
Main Case size 480mm x365mm x202mm(L*W*H)































Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 0





COIN CELL Application for cathode and anode

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 1

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 2

POUCH CELL application for cathode and anode

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 3

PRISMATIC CELL application for cathode and anode

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 4

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 5

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 6Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 7

Lithium Ion Battery Pouch Cell Production Equioments Tabs Ultrasonic welding Machine 8
