Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine

Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine
Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine

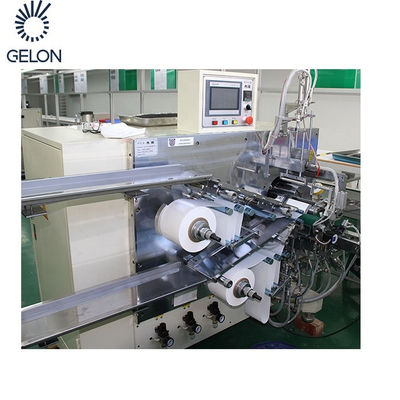

Large Image :  Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-WS70
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $19500-$22500/set
Packaging Details: Standard wooden box for export.
Delivery Time: 15-25 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 30 sets per month

Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine

Description
Production Name: Semi-auto Winding Machine Usage: Lithium Ion Battey Research And Production
MOQ: 1 Pc Customzie: YES
Power: 4KW Voltage: 380V 50HZ
Applicable Industries: Lithium Ion Battery, New Energy Warranty Of Core Components: 1 Year
Machinery Test Report: Provided Control: PLC
High Light:

Semi Auto Pouch Cell Assembly Equipment

,

380V battery winding machine

,

4KW Pouch Cell Assembly Equipment

Battery Winding Machine Semi-Auto Machine Pouch Cell Assembly Equipment

1. Equipment overview:

Cylindrical lithium battery semi-automatic winding machine is a special winding machine for cylindrical lithium battery. The equipment integrates the advantages of domestic and foreign winding equipment, and is prominent in practicability, stability and product consistency, and is especially suitable for precision winding of small and medium-sized cells.



2. Main technical parameters:

A. Rolling needle diameter: φ4 (standard), φ3.5;
B. Winding diameter: φ14-26 mm;
C. Diaphragm roll installation diameter: φ76 mm (3 inches), maximum diameter of diaphragm: φ250 mm;
D. Diaphragm width: 35-65 mm;
E. Width of positive and negative electrodes: 33-60 mm;
F. Termination tape width range: 10-40mm;
G. Termination tape winding range: 0.2-1.5 circles;
I. The diaphragm working tension is constant and adjustable;
J. Working tension of positive and negative electrodes: vacuum adsorption is adopted;



ITEM VALUE

Power

4KW

Voltage

380v 50hz

Work efficiency

50-60ppm

Sealing height precision

±0.05mm

Sesling Diameter precision

±0.03mm

Working pressure

6kgf/cm2



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

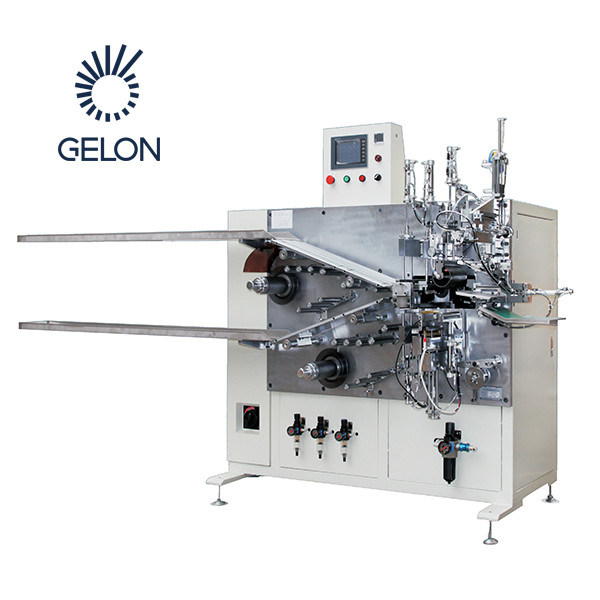

Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine 0Semi Auto Pouch Cell Assembly Equipment Battery Winding Machine 1
