Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure

Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure
Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure

Large Image :  Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-330A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD6521-7921/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 500pcs/month
Contact Now

Battery Pneumatic Spot Welder with Microcomputer MCU Control for Lithium Battery Welding and 0.1-0.8MPa Input Air Pressure

Description
Product Name: Battery Pneumatic Single Spot Welder Surface Treatment: Painted
Maximum Power Output: 10KVA Input Air Pressure: 0.1-0.8MPa
The Welding Current: 00-99 Application: Lithium Battery Welding
Weight: 45KG

Battery Pneumatic Single Spot Welder Mini Needle Welding Battery Production Equipment
GELON precision spot welding utilizes widely popular AC pulse spot welding technology, specifically designed for the production of high-grade batteries (nickel-cadmium, nickel hydrogen, lithium batteries) required in today's market. Featuring microcomputer MCU control for enhanced stability and reliability.
Key Features
  • Beautiful appearance with compact design
  • Excellent joint appearance with minimal sparking, no blackening, stable welding current, and uniform spot size
  • Completely eliminates low pressure and water phenomenon in lithium battery spot welding
  • Ideal battery production assembly equipment
  • Microcomputer MCU control enables single pulse, double pulse, and multi-pulse welding
  • Digital parameter settings for intuitive and accurate adjustments
  • SWA-2208/2408 models (foot pedal and pneumatic) feature accurate positioning, suitable for welding cap batteries with high yield
  • Independent pressure adjustment for two solder pins with easy adjustment for stable and reliable welding pressure
  • Photoelectric welding switch eliminates the need for switch replacement
Technical Specifications
Model GN-330A
Power AC 220V ± 10% 50Hz ± 2Hz
Input Air Pressure 0.1-0.8MPa
Welding Current 00-99
Scope Suitable for 0.03mm - 0.5mm in a variety of welding pieces
OEM China
Weight 45KG
Product Images

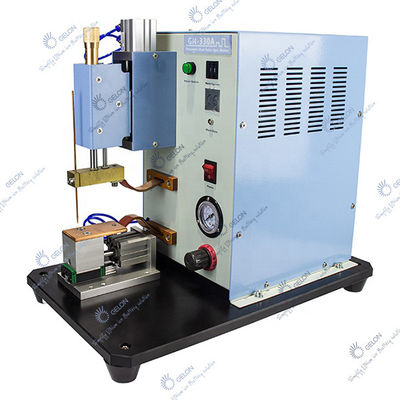

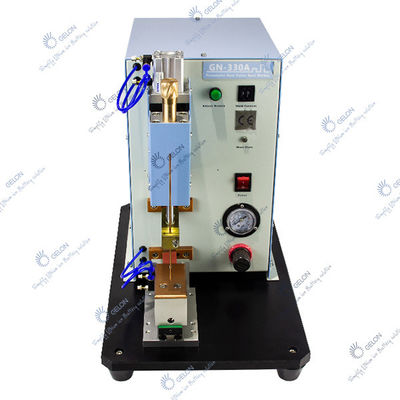

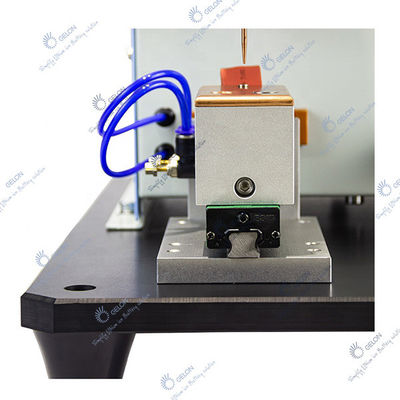

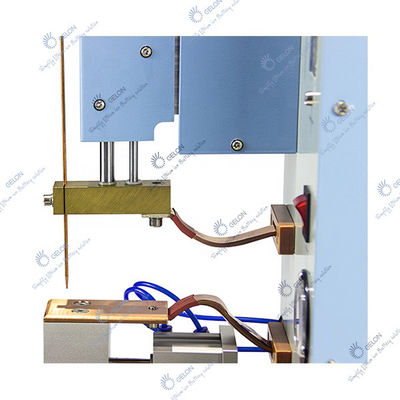

Battery Pneumatic Single Spot Welder front view Battery Pneumatic Single Spot Welder side view Battery Pneumatic Single Spot Welder close-up Battery Pneumatic Single Spot Welder operation view
Related Products
Related lithium battery equipment Additional battery production equipment Battery manufacturing machinery Industrial battery equipment Complete battery production line
Certifications
Industry certifications and quality standards
Additional Supply Capabilities
  • Full set of lithium battery materials including: LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, Graphite (MCMB) and other cathode & anode battery materials; Aluminum foil, copper foils, battery separator, etc.
  • Full set of lithium battery equipment for example: mixing machine, coating machine, oven, rolling machine, welding machine, slitting/cutting machine, winding machine, sealed machine, etc.
  • Full set of lithium battery technology - we can design laboratories and production lines according to customer requirements
