High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4

High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4
High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4 High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4 High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4

Large Image :  High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: ROHS CE
Model Number: GN-LMFP64
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 45-75usd/kg
Packaging Details: carton and pallet
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000T/month

High Energy Density LFP LMFP Powder Lithium Ion Battery Materials with 99.9% Purity and 170mAh/g Capacity LiFePO4

Description
Materials: LFP And LMFP Cathode Materials Color: Gray Black Powder
Packing: 20kg/carton Purity: 99.9%
Tap Density: Tap Density Compaction Density: 2.4 G/cm3
Particle Size: 1.3 Ratio: 64/73/82
Highlight:

LFP LMFP powder lithium ion battery

,

High energy density LFP battery material

,

LiFePO4 battery material 170mAh/g capacity

Lithium Ion Battery Materials LFP LMFP Lithium Manganese Ion Phosphate Powder LiFePO4

Lithium Ion Battery Materials LFP LMFP Lithium Manganese Ion Phosphate Powder LiFePO4

The theoretical capacity of lithium iron manganese phosphate is 170mAh/g, which is the same as that of lithium iron phosphate, but its electrode potential relative to Li+/Li is 4.1V, which is much higher than the 3.4V of lithium iron phosphate, and it is located in the stable electricity of the organic electrolyte system. The high potential of 4.1V gives lithium iron manganese phosphate the potential advantage of high energy density, which is the biggest advantage over lithium iron phosphate. In addition, the raw material cost of lithium iron manganese phosphate is low, environmentally friendly, and the material has a broad market prospect.

Technical Specifications
Item Technical Standard Classic Value
Particle size D50 um 1.0-2.0 1.300
Tap density g/cm³ ≥7 0.8
Compaction density g/cm³ ≥2.2 2.4
Specific surface area m²/g 12.0-22.0 17.5
Carbon content % 1.5-2.5 1.67
Specific capacity mAh/g (0.1C) ≥155 157
First discharge efficiency % ≥90% 92.5
Room Temperature Conductivity (S/cm) 1*10⁻⁴ 2.2*10⁻⁴
Product Images

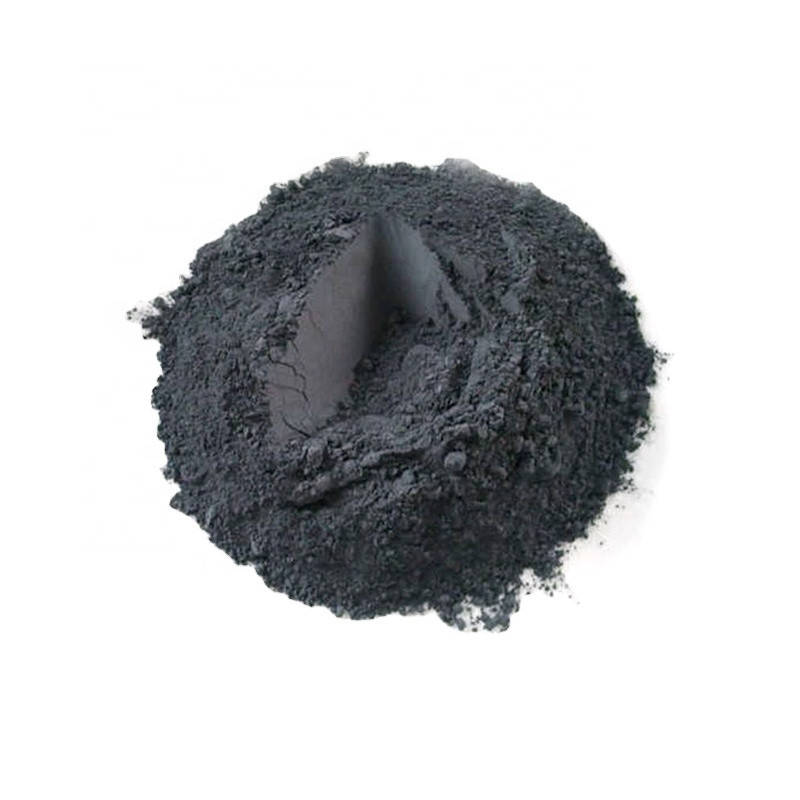

Lithium Ion Battery Material LFP LMFP Powder sample Lithium Manganese Ion Phosphate Powder technical analysis LiFePO4 battery material close-up view
