Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S100P
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1900-2500/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 PCS Per Month

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making

Description
Punching Size: Max. L80*W60mm Punching Thickness: Max. 0.5mm
Punching Precision: ±0.1mm Punching Pressure: Max. 1T,For Electrode 500Kg(0.5MPa)
Life Of Cutting Die: About30 Thousand Times(Normal Use) Punching Stroke: 12mm
High Light:

Pouch Cell cutting die Machine

,

Die Punching Machine Battery Making

,

Electrode cutting die Machine

Pouch Cell Electrode Cutting Machine Die Punching Machine Battery Making

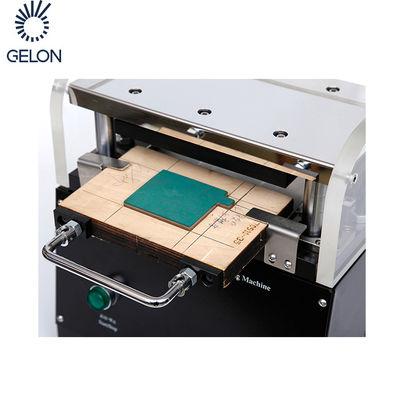

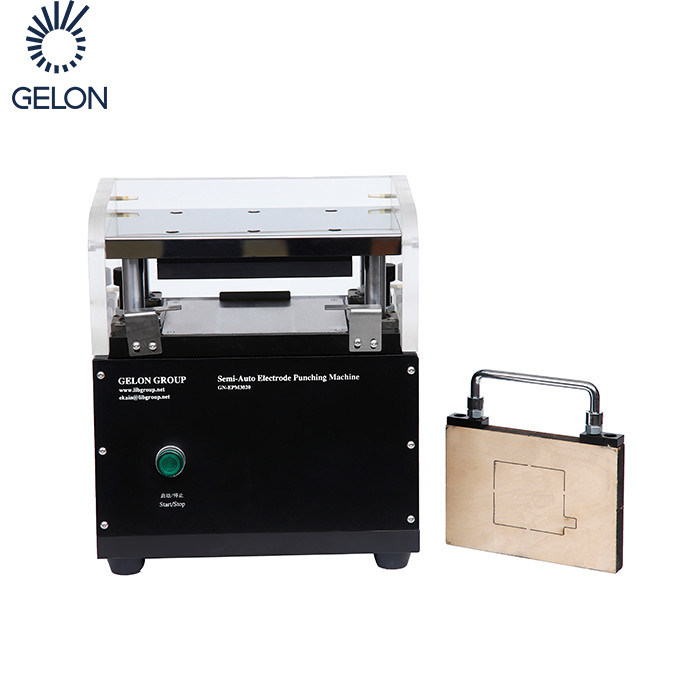

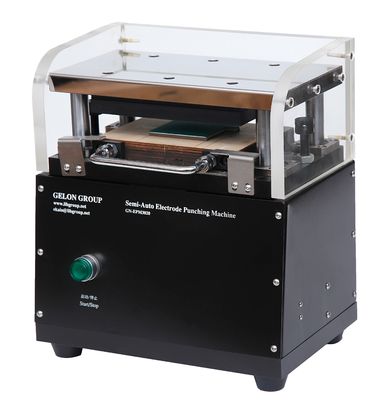

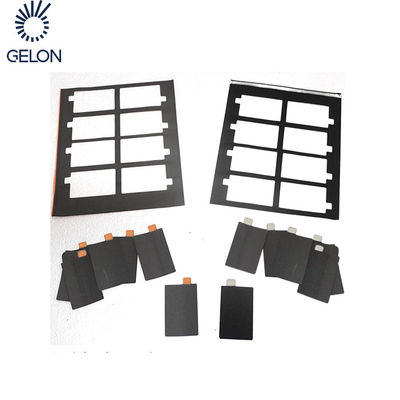

Semi-automatic electrode punching machine is used for cutting cathode &anode electrode of li ion battery.It can die sheet electrode by pneumatic,and can be put in the glove box,also offer customized any cutting die to make molding and die cutting with different size of electrodes .
1.Gas source:0.5~1.0MPa Argon /nitrogen,or 0.7MPa compressed air(No in glove box)
2.Punching size:Max. L80*W60mm

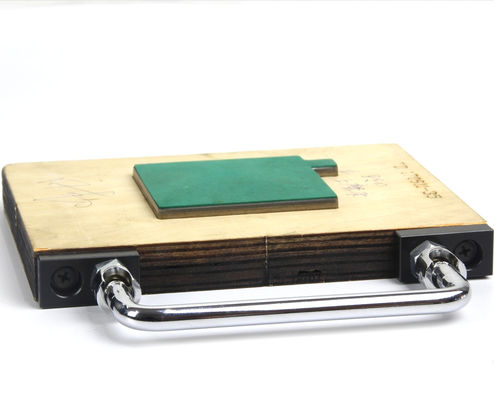

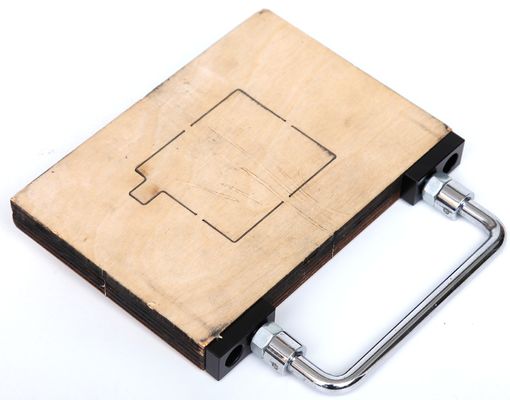

3.Standard die:Cathode56*43mm Anode58*45mm,customized as request

4.
Life of cutting die:About30 thousand times(Normal use)
5.
Punching pressure:Max. 1T,For electrode 500Kg(0.5MPa)
6.
Punching precision:±0.1mm
7.
Punching thickness:Max. 0.5mm(aluminum-plastic film)
8.
Punching stroke:12mm
9.
Installment size:L370mm*W245mm*H245mm
10.
Punching burr:Vertical burr≤12μm,level burr≤20μm
11.
Weight:32KG

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 0

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 1

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 2

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 3Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 4

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 5

Pouch Cell Electrode Cutting Die Machine Die Punching Machine Battery Making 6
