Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-50ML
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1400-1800/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS Per Month

Automatic Pouch Cell Battery Assembly

Description
Dimension(L*W*H): 34*30*14mm Machinery Capacity: 4000bph
Filling Accuracy: ±1% Capacity: 50-100ml
Speed: About 1minute Finish One Battery Air: 75psi
High Light:

Automatic Pouch Cell Battery Assembly

,

Digital Bottletop Battery Electrolyte Dispenser

,

4000bph Pouch Cell Battery Assembly

Lab Automatic Digital Bottletop Battery Electrolyte Dispenser

Product Application

This machine is a desktop electrolyte filler with speed and volume control console and injection pump for high-precision
dispensing purpose. The control console allows to customize the dispensing volume by driving the internal stepper motor. The injection pump adjusts the volume of each dispensation. is an ideal tool for preparing electrolyte in battery R&D.


1, A rack, made of stainless steel and alumina alloy;
2, Automatic lifting device 2 station,
Including pneumatic control of the spring lifting device;
3, Vacuum injection liquid 2 sets,
316 stainless steel pouring head container,
With double pneumatic lift off valve (double lift off valve structure).

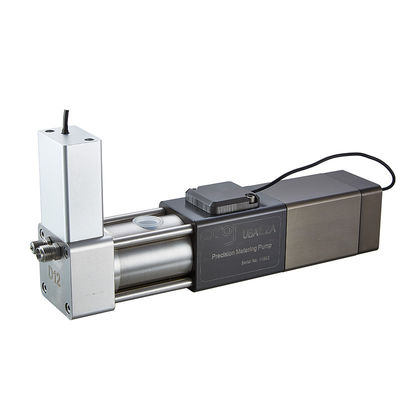

4, Precision metering pump 2, Model: E2-R12T;
The use of stepper motor-driven piston pump, precision ceramic rotary valve.
Injection volume can reach 7.2ML. (Refer to pump data)
5, Pneumatic control valve components, SMC pneumatic control valve module
6, Controller, PLC controller, color touch screen configuration
7, Pipe, all liquid piping using PFA plastic pipe

Capacity 0-7.2mL
Precision +-1%
Battery 18650
Speed about 1minute finish one battery
Power 220V
Air 75PSI
Vacuum and compressed air supply by customer



Automatic Pouch Cell Battery Assembly 0



Automatic Pouch Cell Battery Assembly 1

We also can supply others:
1.)full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foils,battery separator,etc.

2.)full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3)full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
