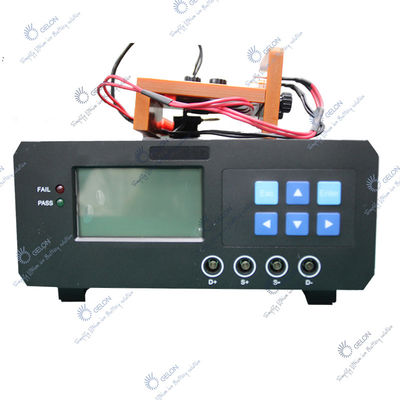

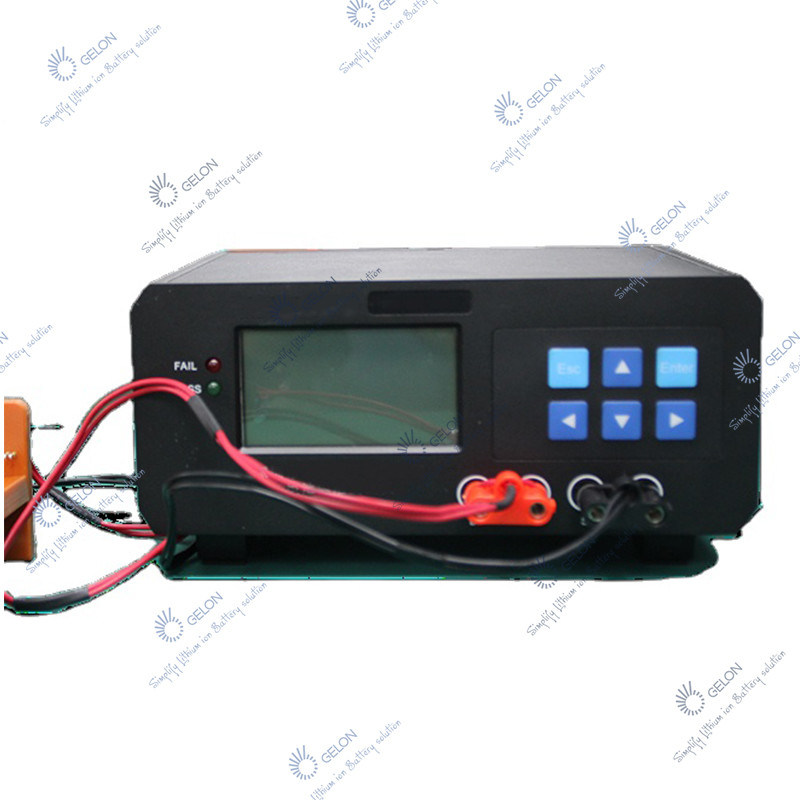

Lithium Ion Battery Testing Lab Internal Resistance Tester

Lithium Ion Battery Testing Lab Internal Resistance Tester
Lithium Ion Battery Testing Lab Internal Resistance Tester Lithium Ion Battery Testing Lab Internal Resistance Tester Lithium Ion Battery Testing Lab Internal Resistance Tester

Large Image :  Lithium Ion Battery Testing Lab Internal Resistance Tester

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-BK-300A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 560-910 set
Packaging Details: Standard export package
Delivery Time: 15-20 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

Lithium Ion Battery Testing Lab Internal Resistance Tester

Description
Product Name: Internal Voltage Resistance Tester Ac Current Frequency: 1KHZ±0.1KHZ
Calibration: Potentiometer Calibration(stand Box Additional) Test Alarming: Internal Resistance Pass Alarmor Fail Alarm
Holder: Air Plug,can Holder Box Or Testing Line Voltage: AC220V,50HZ,Power≤20W
Size(W×D×H): 340×380×110 Mm Working Temperature: Temperature:20℃±5℃,Humidity≤85%
High Light:

Lithium Ion Battery Testing Lab

,

Internal Voltage Resistance Tester

,

Lab Internal Resistance Tester

Battery Testing Lab Internal Resistance Tester BTS-100 For Lithium Ion Battery Tester Battery Equipment Gelon



Product Application

Applied environment:
1) Temperature: 0~40℃
2) Height application: less than 2KM elevation
3) RH: 40~80%RH
Measurement range:
1)voltage measurement range:
0-5V minimum resolution:1mV
0-50V minimum resolution:10mV
2)internal resistance measurement range:
0-40mΩ minimum resolution:0.01mΩ
0-400mΩ minimum resolution:0.1mΩ
0-4000mΩ minimum resolution:



Specification:

Testing speed
0.5seconds
Electric source
220V±10% 50Hz
Consume power
max 50W
Tester size
L(190mm)Xw(153mm)xH(90mm)
Net weight
1.5kg
Gross weight
2.0kg



Lithium Ion Battery Testing Lab Internal Resistance Tester 0Lithium Ion Battery Testing Lab Internal Resistance Tester 1

Lithium Ion Battery Testing Lab Internal Resistance Tester 2

Lithium Ion Battery Testing Lab Internal Resistance Tester 3






Lithium Ion Battery Testing Lab Internal Resistance Tester 4Lithium Ion Battery Testing Lab Internal Resistance Tester 5Lithium Ion Battery Testing Lab Internal Resistance Tester 6



Lithium Ion Battery Testing Lab Internal Resistance Tester 7



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
