Product Details:
|
| Product Name: | Internal Voltage Resistance Tester | Ac Current Frequency: | 1KHZ±0.1KHZ |
|---|---|---|---|
| Calibration: | Potentiometer Calibration（stand Box Additional） | Test Alarming: | Internal Resistance Pass Alarmor Fail Alarm |
| Holder: | Air Plug，can Holder Box Or Testing Line | Voltage: | AC220V，50HZ，Power≤20W |
| Size（W×D×H）: | 340×380×110 Mm | Working Temperature: | Temperature：20℃±5℃，Humidity≤85% |
| High Light: | li ion battery tester 1KHZ,battery internal resistance tester 50HZ,li ion battery tester 220V |
||

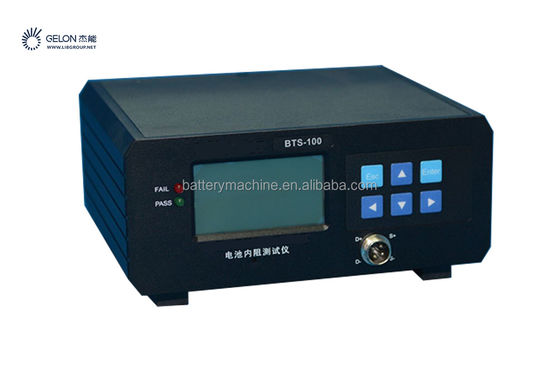

Gelon Lithium Ion Battery Tester Internal Voltage Resistance Tester Battery Research Battery Assembly Line
Description:
1) simplicity of operator
2) practical and reliable
3) high performance
4) high quality
5) lower price
Index:
| Technicle parameters | ||||
| Type of tester | Ac internal resistance tester | |||
| Way of tester | four-line measurement | |||
| Ac current frequency | 1KHZ±0.1KHZ | |||
| Voltage | Voltage: Two selectable ranges | |||
| DC0～5.000V, | resolution 1 mV,Accuracy±(0.2%rdg+5dgt). | |||
| DC5.00v～20.00V, resolution 10mV,Accuracy±(0.2%rdg+5dgt) | ||||
| internal resistance | Battery internal resistance: Two selectable ranges | |||
| Low range: 3mΩ~300.0mΩ | Current 10mA | ±0.3%rdg+5dgt. | ||
| High range: 300mΩ~3000mΩ | Curent 1mA | ±0.3%rdg+5dgt. | ||
| Calibration | Potentiometer calibration(stand box additional) | |||
| Test alarming | internal resistancepass alarmor fail alarm | |||

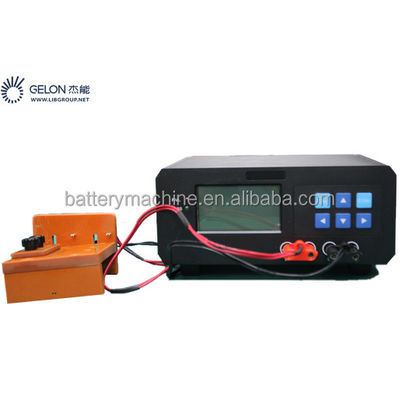

| Holder | Air plug,can holder box or testing line | |||
| Specs | ||||
| woltage | AC220V,50HZ,Power≤20W | |||
| Size(W×D×H) | 340×380×110 mm | |||
| Working temperature | temperature:20℃±5℃,Humidity≤85% | |||
What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.
2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
