Product Details:
|
| Production Name: | Pouch Cell Production Machine Customized Battery Automatic Stacking Machine | Usage: | For Pouch Cell Production Line |
|---|---|---|---|
| Customzie: | Yes | MOQ: | 1 Pc |
| Video Outgoing-inspection: | Provide | Machinery Test Report: | Provide |
| Warranty: | 1 Year | Installation Guiding: | Provide |
| Supply 1: | Lithium Ion Battery Raw Material | Supply 2: | Lithium Ion Battery Production Equipment |
| Supply 3: | Lithium Ion Solid State Battery Raw Material | ||
| High Light: | Customized Pouch Cell Production Machine,AC220V Automatic Stacking Machine,Battery Pouch Cell Production Machine |
||

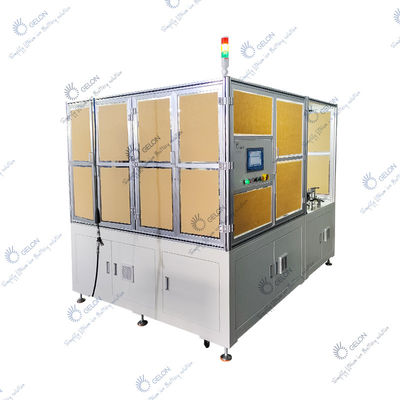

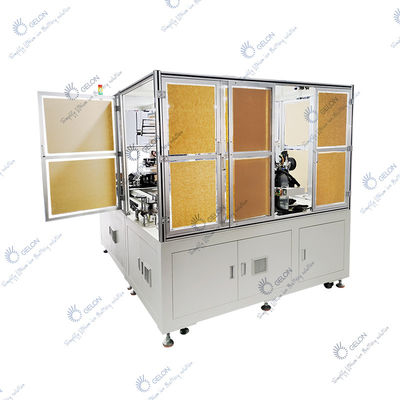

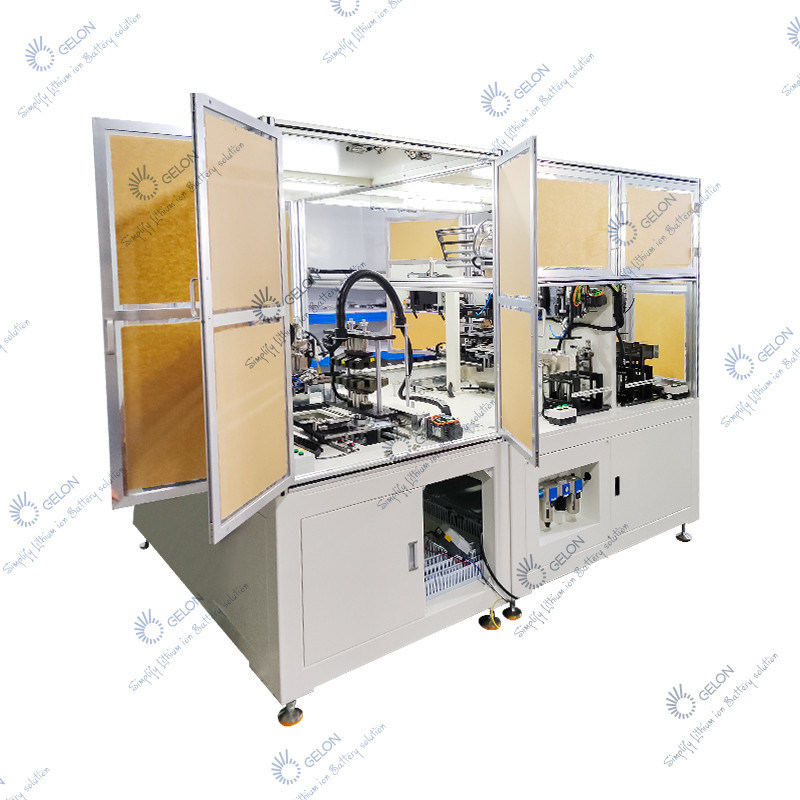

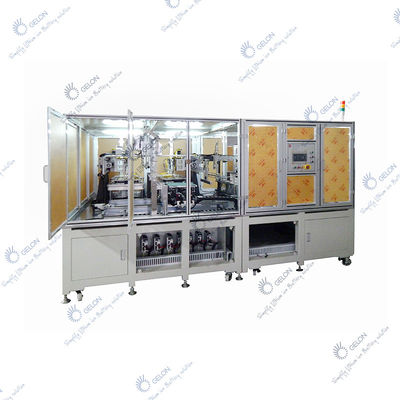

Pouch Cell Production Machine Customized Battery Automatic Stacking Machine
This device uses the manipulator left and right to move, in the two poles limit to pick up the electrode material, in the middle position alternately put the materials to stack,and simultaneously completes the Z-shaped folding of separator during the left and right movement. So back and forth to finish the entire core’s stacking and assembling. The manipulator adopts linear servo motion module achieving high speed, smooth and accuracy.Separator put materials with constant tension, and in the process of putting materials, there is a correction mechanism to control the neatly consistent discharge. The electrode silo adopts linear servo motion module to convert different electrode sheets.
| Cell Szie Thickness H(mm) | 8-20 |
| Cell Szie Width W(mm) | 200-280 |
| Cell Szie Length L(mm) | 200-280 |
| Tab length Q(mm) | Q ≤ 30 |
| Reference Shape Size | 2500×2100×1900 mm ( L×W×H ) |
| Reference Weight | 1 600Kg |
| Power source | AC220V single phase ； voltage pulsation±10% ； |
1 . Electrode displacement Precision servo motor control ensures accurate positioning of stacking.
2. Electrode bending double-chip device for polar bending can avoid multi-sucking and strip images at a time
3. Electrode secondary re-preposition. The alignment device ensures accurate positioning of the pole
4. The separator rectifying device can ensure the accurate alignment of the separator
5. Material Box automatic air blowing device allow the pole to drift away automatically ensures that the pole does not absorb much.
6. Secondary counter-position blowing dust removal device make sure the laminated stacking electrodes are free of dust
7. Positive and negative electrode lifter guarantee the positive and negative electrodes are always at the same height;
8. The separator unwinding has the function of constant tension, which ensures that the separator tension is basically constant when stacking.
9. The separator is cut off automatically;
10. No tail coil;
11. Battery core automatic taping.
