Product Details:
|
| Product Name: | Industrial Dehumidifiers System | Application: | Lithium Ion Battery Production Line |
|---|---|---|---|
| Usage: | Dehumidify | Warranty: | 1 Year |
| After-sales Service Provided:: | Video Technical Support | Core Components: | Engine, Gear, Pump |
| High Light: | R22 Industrial Dehumidifiers,Lithium Battery Production Line,Dehumidify Pouch Cell Assembly Equipment |
||

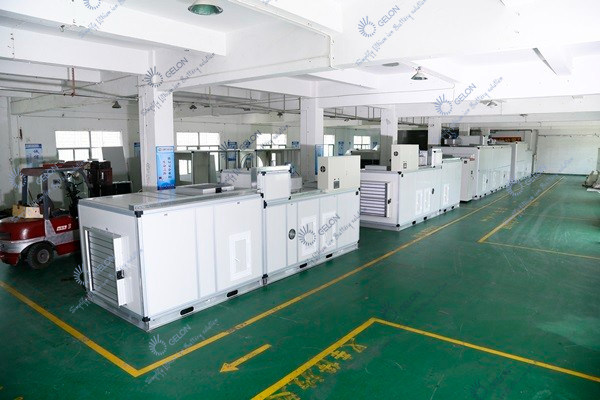

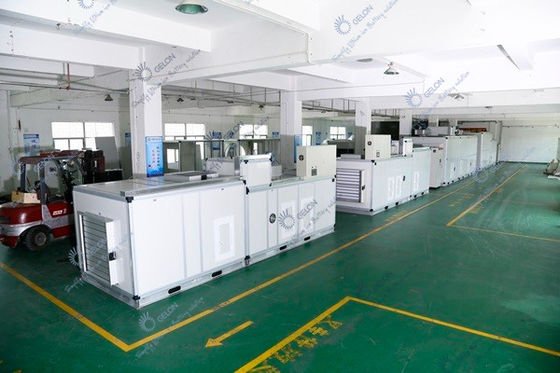

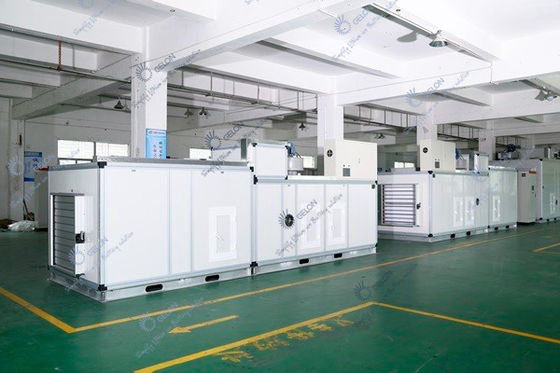

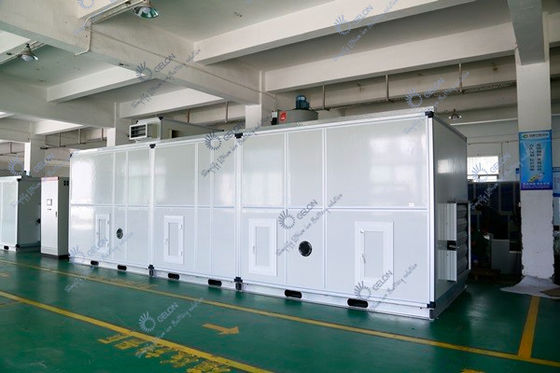

Industrial Dehumidifiers for Polymer Pouch Cell Assembly
Overview
This product is frozen wetted. Fan pumped in moist air and by freezing evaporator condenses into water. Collecting into container or drainage discharged by the pipe.Dry air is being exhausted from outlet, humidity gradually decline.Plastic steel design, beautiful and easy and practical.Left blow type outlet, positive into the wind.Install the universal wheel can move freely.Humidity digital automatic control, real-time, according to the random freely humidity control.Under ambient temperature below 18 ℃ will automation cream.
| Volt./Freq | ～380V/50Hz |
| Input power | 5500W/11A |
| Refrigerating fluid | R22 |
| Nominal capacity (30℃80%RH) | 240L/D(338Uspints/24hrs) |
| Dehumidification area (storey height is 2.6 meter) | 190-300square meter |
| Drainage way | External drainage, tube continuous drainage |
| Scope of application | Rotary, under-voltage three minutes time delay |
