CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research

CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research
CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research

Large Image :  CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: CR2032
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 0.15 pcs
Packaging Details: Carbon box
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000 pcs per month

CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research

Description
Product Name: CR2032 Stainless Steel Coin Cell Case For Lithium Battery Lab Research Material: SS304/SS316
Sealing Gasket: PP Dimension: 20mm*3.2mm

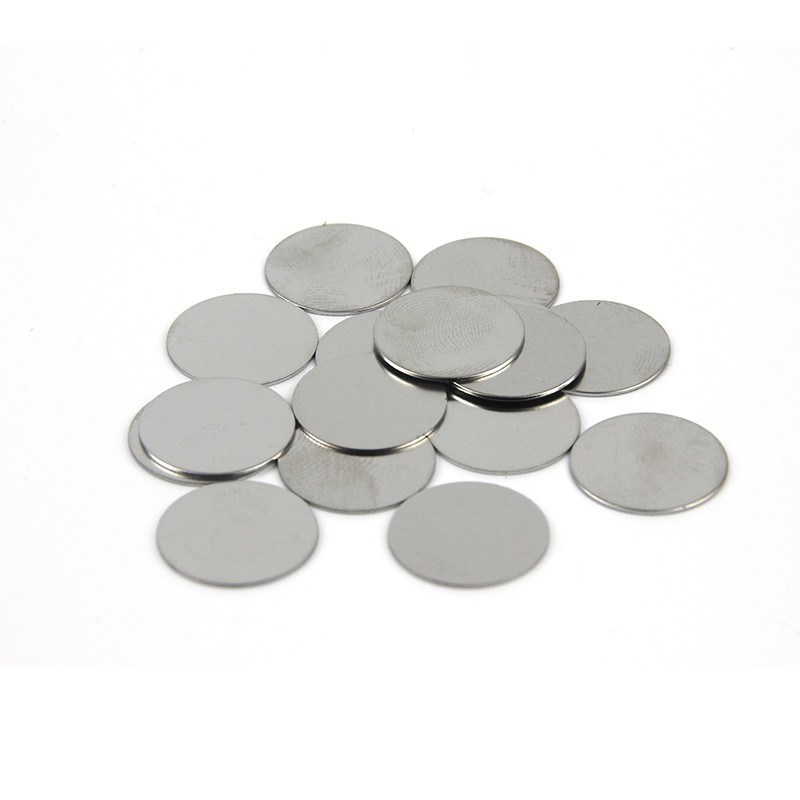

Thickness Of Case: 0.25±0.02mm Spacer:: 0.2/0.5/0.8/1.0mm
Spring: Funnel Shape,wavy Shape Package: 100pcs/bag
High Light:

CR2032 Coin Cell Case

,

Lab cr2032 battery case

,

Stainless Steel Coin Cell Case

CR2032 Stainless Steel Coin Cell Case for Lithium Battery Lab Research

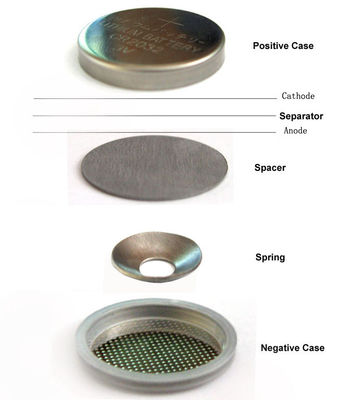

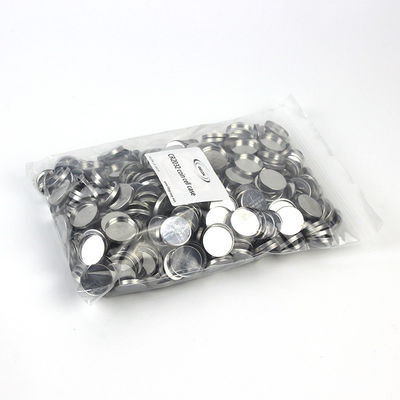

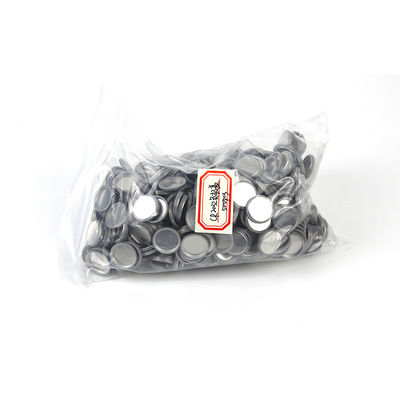

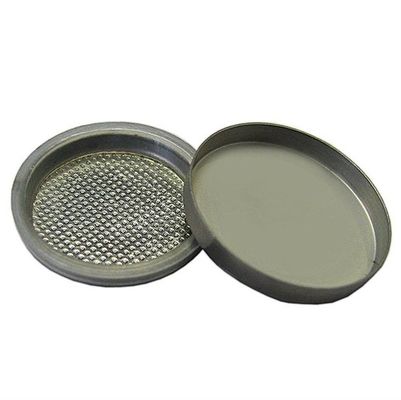

100 pairs of CR2032 button cell cases, made of 304 or 316 stainless steel with sealing o-ring.

( Qty discount )

Dimensions (Dia x Height)
20 mm x 3.2 mm
Weight
1.71g
Materials
1.Casing: SS304 or SS316
2.Sealing Gasket: PP
3.The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm.
Application Note
1.After perfectly crimping, the External Height should be around 3.0mm.
2.The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
3.Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)




We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
