Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode

Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode
Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode

Large Image :  Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode

Product Details:
Place of Origin: Gelon
Brand Name: Gelon
Certification: CE
Model Number: GN-CC20
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD 750-850/pc
Packaging Details: Standard wooden package
Delivery Time: 7-15 days
Supply Ability: 500pcs/month

Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode

Description
Machine Type: Manual Type Function: Electrode And Separator Punching
Die Materials: SKD11 Punching Die Diameter: Ø8-Ø24mm
High Light:

Manual Battery Disc Cutter

,

Battery Anode Electrode Punching Machine

,

Battery Disc Cutter CR2016

Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Machine Battery Anode Electrode Punching Machine

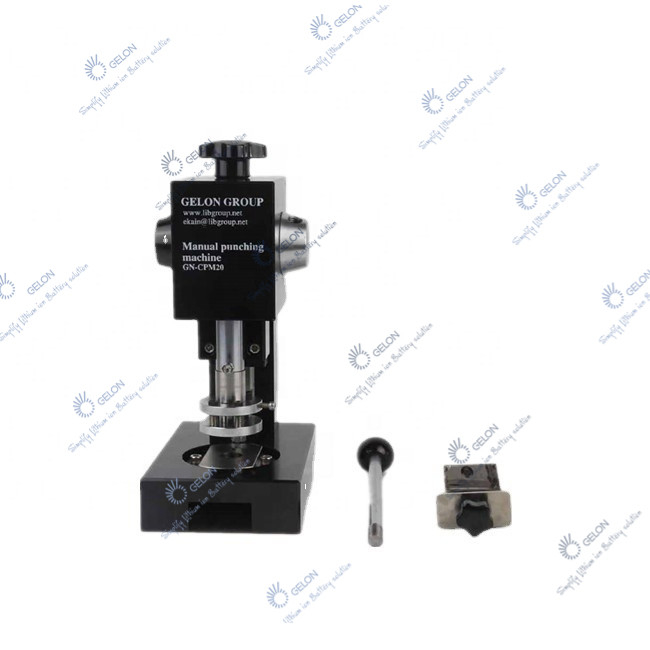

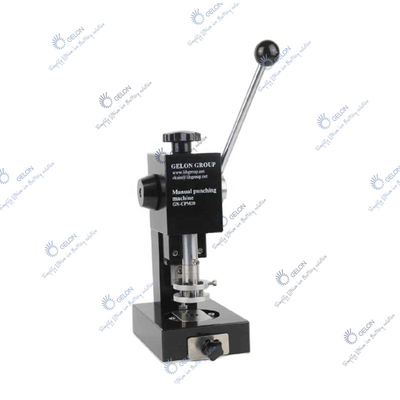

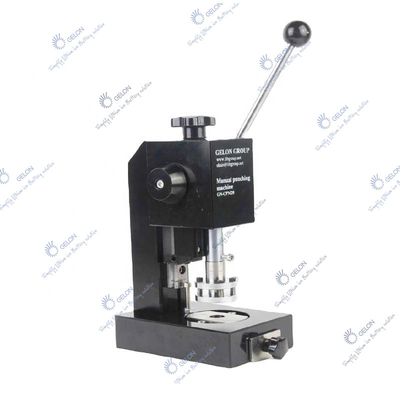

   The manual disc cutter is cutter developed by our company for punching various materials in the battery industry. Put the lithium battery materials cathode&anode electrode,separator on the lower knife platform, press the handle down, and punch it out.
The equipment has fine workmanship, small burrs and no indentation on the products after punching, and it can match different punching dies to realize various sizes and types of products punching.



Name Parameter Remark
Punching pressure Max150KG
Press axie stroke Max. 20mm
Punching materials 0.01mm-0.5mm The battery materials of electrode and separator
Workbench L100mm x W90mm
Punching die diameter Ø8-Ø24mm Normal size of φ10/12/14/15/16/19/20mm
Punching die selection reference Φ15mm CR20xx series coin cell electrode
Φ19mm CR20xx series coin cell and CR2325 coin cell anode electrode
Φ20mm CR2450 coin cell electrode,CR2325 cathode electrode,CR20xx series coin cell separator
Φ24mm CR24xx series coin cell electrode and separator

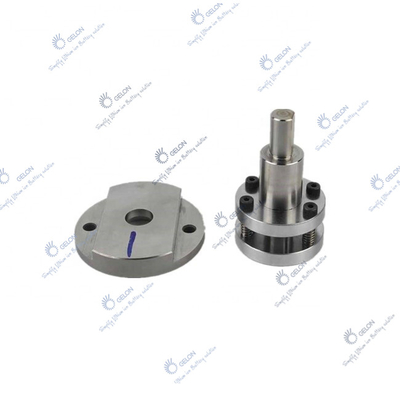

Die material SKD11 Die made of hardened steel
Way of working Manual This device can be used in a glove box
Equipment size L170*W200*H370mm Including hand rocker size
Shipping size L260*W230*H400mm
Net weight 7kg
Shipping weight 12kg Include 1 punching die



Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 0



Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 1Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 2Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 3

Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 4



Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 5Manual Coin Cell Battery Disc Cutter CR2016 Coin Cell Assembly Battery Anode 6
