Lithium Battery Materials Conductive Carbon Coated Copper Foil

Lithium Battery Materials Conductive Carbon Coated Copper Foil
Lithium Battery Materials Conductive Carbon Coated Copper Foil Lithium Battery Materials Conductive Carbon Coated Copper Foil Lithium Battery Materials Conductive Carbon Coated Copper Foil Lithium Battery Materials Conductive Carbon Coated Copper Foil Lithium Battery Materials Conductive Carbon Coated Copper Foil

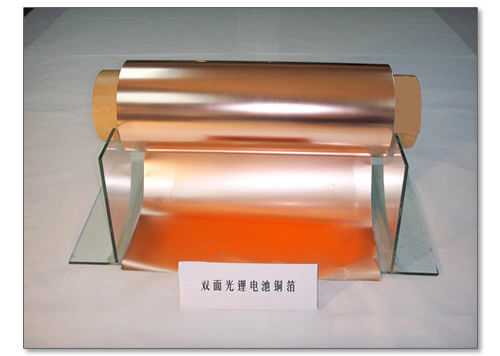

Large Image :  Lithium Battery Materials Conductive Carbon Coated Copper Foil

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-CF
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: $50-$70/roll
Packaging Details: Standard exporting package
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 rolls per month

Lithium Battery Materials Conductive Carbon Coated Copper Foil

Description
Product Name: Lithium Ion Battery Anode Material Copper Foil Application: Electric Vehicles, Electric Power Systems
Material: Brass Shape: Strip Coil Roll
Core (ID) Mm: 76.2 Processing Service: Welding, Cutting, Punching
Thickness: 8um,9um,10um,12um,15um Etc Usage: Lithium Ion Battery

Lithium Battery Materials Conductive Carbon Coated Copper Foil



Conductive carbon coated copper foil can replace conventional Al foil as better anode substrate with improved properties.

----Better electrical conductivity and less internal resistivity

----Better mechanical strength and toughness to avoid short circuit caused by dendrite growth

----Better coating strength with electrode material

----Therefore, it will provide larger discharging capability and longer service life for Li-Ion batteries



Technical specification of coated carbon copper foil


No. Item   Standard Testing
1 Cu purity % ≥99.8 ≥99.95
2 Penetration hole piece No No
3 Single-sided carbon coating quality g/㎡ Copper areal density +0.65 Copper areal density +0.65
4 Double-sided carbon coating quality g/㎡ Copper areal density +1.3 Copper areal density +1.3
5 Mass resistivity Ω.g/㎡ ≤0.17 0.168
6 Thickness tolerance um 1 1
7 Tensile strength kg/㎡ ≥30 35
8 Room temperature elongation % ≥3.5 4.2
9 High temperature elongation % ≥4.0 5.5

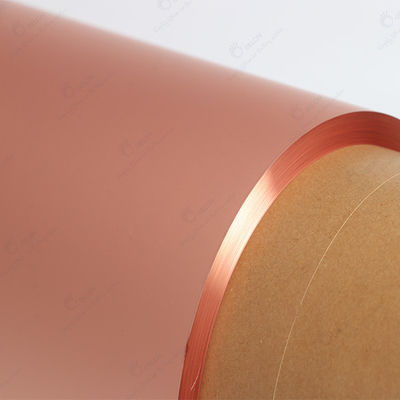

Lithium Battery Materials Conductive Carbon Coated Copper Foil 0Lithium Battery Materials Conductive Carbon Coated Copper Foil 1

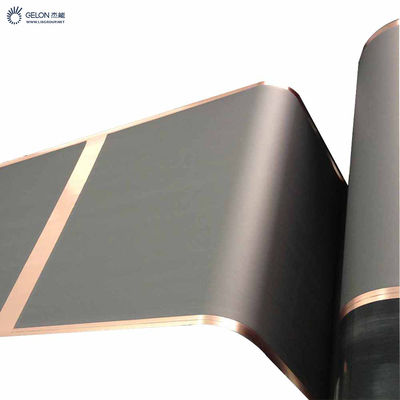

Lithium Battery Materials Conductive Carbon Coated Copper Foil 2

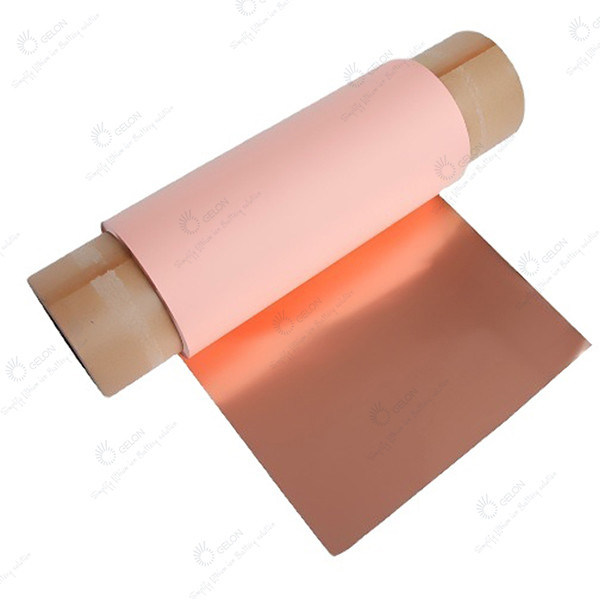

Lithium Battery Materials Conductive Carbon Coated Copper Foil 3

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.

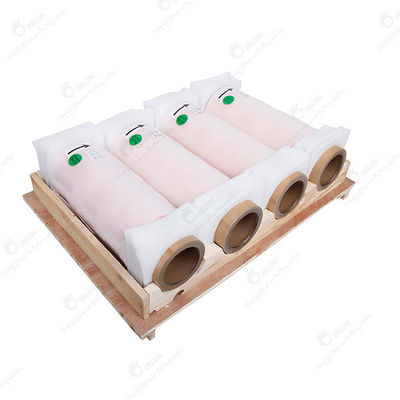

Lithium Battery Materials Conductive Carbon Coated Copper Foil 4
