750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery
750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery

Large Image :  750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-ST750
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 60000-100000USD
Packaging Details: wooden box package
Delivery Time: 2months
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30sets per months

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery

Description
Product Name: Automatic Slitting Machine Function: Electrode Slitting
Cell Type: 18650 21700 26650 32650 And Etc Equipment Type: Full Automatic
Efficiency: High Efficiency Application: Lithium Ion Batteries
Voltage: 380V Delivery Time: 3months
Material: Battery Electrode
High Light:

18650 Battery Automatic Slitting Machine

,

21700 Battery electrode slitting machine

,

750mm Automatic Slitting Machine

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery Electrode Slitting







1.1 Introduction of principle

The rolled cathode/anode electrode is loaded into the roll mechanism, and through the power traction, the electrode is sent to the cutter set which is arranged according to the process specifications for slitting, and the upper and lower rewinding device collects the slit electrode into the roll, and the edge materials are collected by the edge material device. The equipment is assisted by the deviation correction system, tension drive system, dust suction system (including knife suction dust) and other auxiliary precision operation to ensure the stable slitting of the electrode, burr, straightness and other process indicators within the process range.

1.2 Process flow

Transfer carriage Loading the material to unwind reels→èreceived platform→èTraction roller→èSlitting knife setè→Over-roller set →èSeparately up and down sliding differential rewinding axis→èEdge material rewinding→èSet the required electrode tension→èSwitching the electrode alignment system to automatic→èPress the system to start button→èThe equipment automatically slitting and collects in rolls.

No. Item Technical parameter Remark



1



Suitable for the material

Electrode with rolling pressed LFP,LCO,LMO,NMC,LTO,Carbon,Graphite







2







Running foil parameter

Aluminum foil(AL):thickness:9~30um; Width: 50~500mm

Roll diameter: Max.400mm



Cupper foil (Cu):thickness: 5~30um

Width:50~500mm;

Roll diameter: Max.400mm;


3 Roller width 550 mm
4 Slitting width 30~500mm
5 Mechanical operating speed 50m/min
5 Slitting speed 1-40m/min Depending on the slitting effect
7 Electrode thickness range 50-300μm



8



Slitting method

1, Combined slice knife slitting;

2, Nishimura type knife set structure.

3, Slitting specifications, 18650/21700(7 lanes,7knives /set,included Cathode and Anode slitting knives)


9 Rewinding method Two axis slip difference axis dislocation rewinding

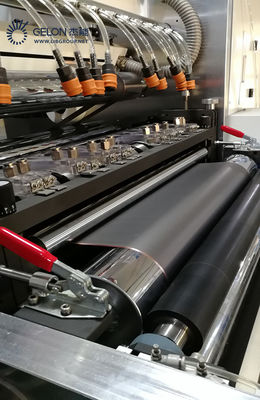

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 0

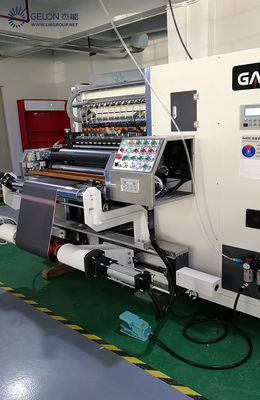

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 1

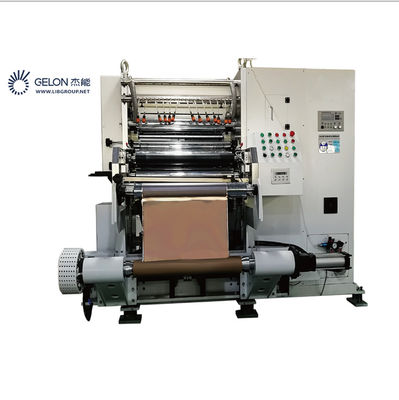

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 2

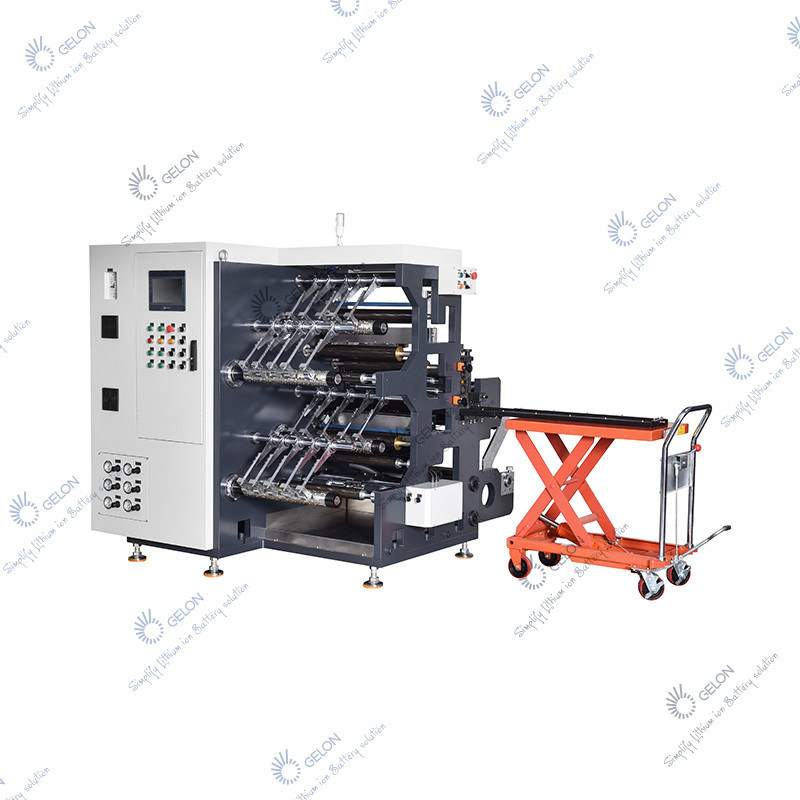

750mm Width Roll to Roll Automatic Slitting Machine For 18650 21700 Battery 3



We also provide other full automatic production line .
