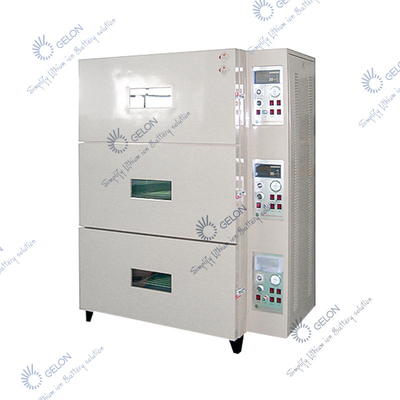

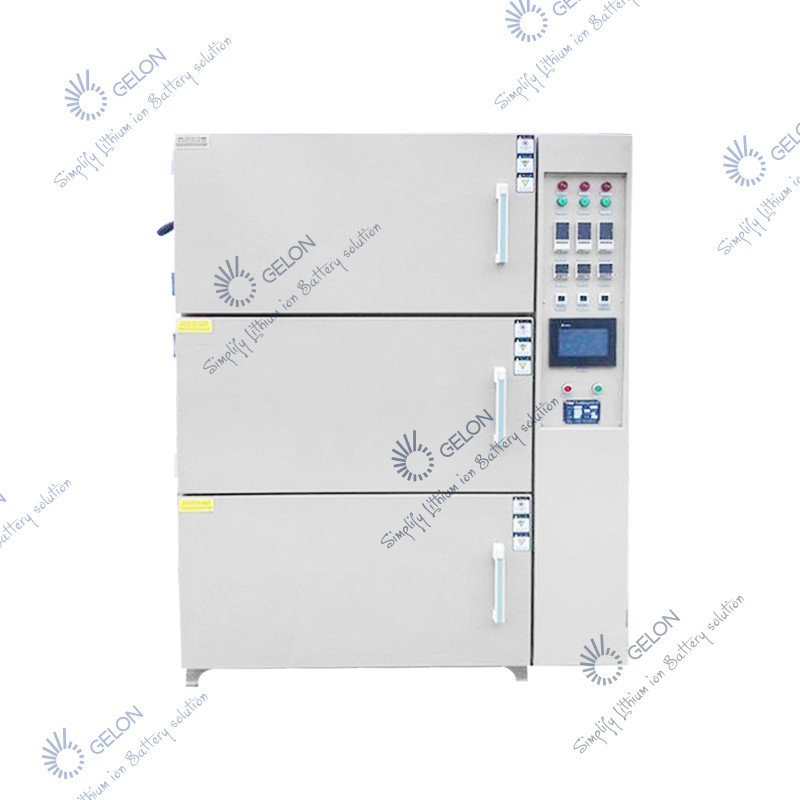

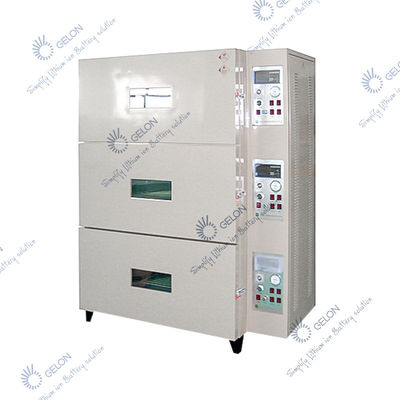

Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven

Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven
Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven

Large Image :  Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-VO-3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9500-13000/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven

Description
Description/model: Battery Special Vacuum Oven /SBVO-03 Workroom Size: Height:300mm Width: 800mm Depth: 600mm*3 Layers
Outline Size: Height:1850mm Width:1420 Mm Depth: 890mm Temperature Fluctuation: Room Temperature :+15℃~200℃
Heating Power: 4.5KW*3 Temperature Sensor: Three- Phases380V
Layer Floor: 2 Layer Mesh Partition / Layer
High Light:

lithium ion battery making machine

,

Three Layer Vacuum Drying Oven

,

Lithium Battery electrode drying oven

Gelon Three Layer Vacuum Baking Equipment Oven Pilot Line Battery Production Equipment



This oven is mainly used with square vacuum chamber, can make full use of space. Pumping speed fast and efficient, high vacuum, easy to operate. Toughened bulletproof double glass observation window clearly the object of the working chamber. The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber. This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode,and so on, has a high reputation in the electric industry field.



Open method

Single-door, flexible double steel glass, with overpressure protection function

sealing ring

silicone rubber ring with high temperature resistance, no connector

Temperature control mode

PID regulator

Temperature accuracy

±1℃

Temperature uniformity

±5℃

Temperature Sensor

PT100

Vacuum

100Pa, 6 hours pointer does not move ,12 hours to keep 98% , 24 hours to keep 95%

Gas leakage

≤300pa/h



Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven 0

Lithium Ion Battery Making Machine Three Layer Vacuum Drying Oven 1
