Product Details:
|
Product Name: | Pneumatic Al Laminated Film Forming Machine | Forming Size: | Max.L90*W50mm |
---|---|---|---|
Forming Pressure: | Max. 1T | Power: | 100W |
Molding Accuracy: | ±0.05mm | Punching Depth: | Max. 6mm |
Forming Thickness: | 0.1~0.2mm Aluminum Plastic Film | Power Supply: | AC220V/50Hz.AC110V/60Hz |
High Light: | 90mmx50mm Pouch Cell Assembly Equipment,Aluminum Laminated Film Forming Machine,aluminum film Pouch Cell Assembly Equipment |

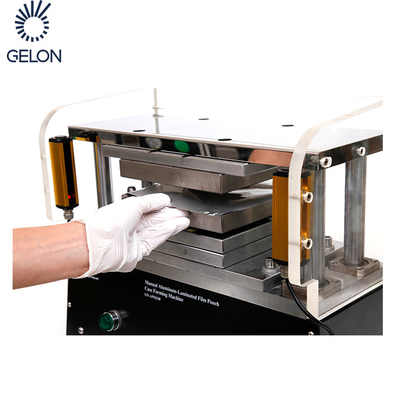

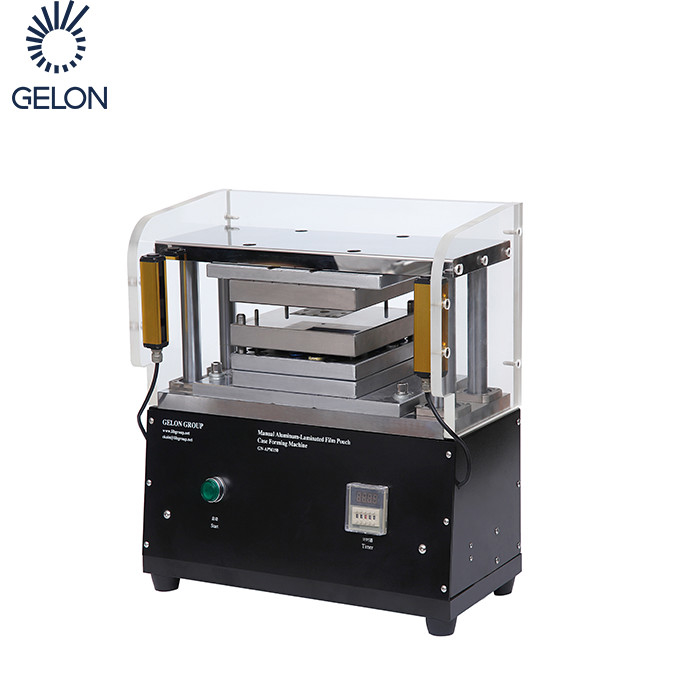

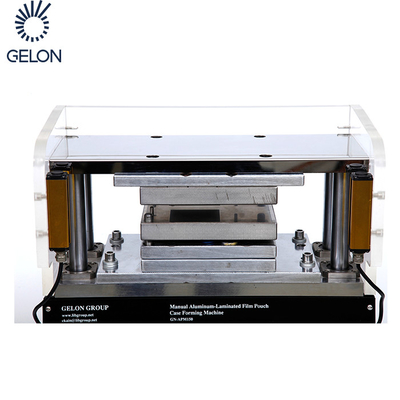

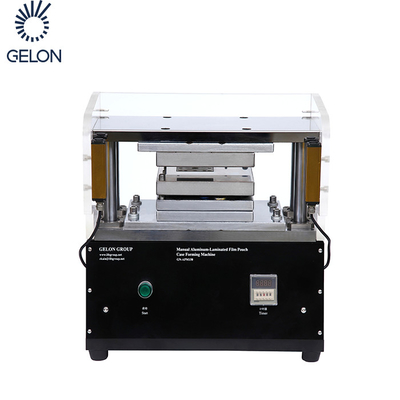

Battery Lab Aluminum Laminated Film Forming Machine Pouch Cell Case Pouch Cell Assembly Equipment
1. Equipment function: The Al laminated film forming machine is specially designed for the forming of lithium pouch cell case forming . Different forming molds can be customized according to customer requirements ,to realize the case forming of pouch cell of different sizes, and has high safety performance , convenient to replace the mold and easy to maintain.
2. The working principle of the equipment: the use of high-precision molding double force cylinder, drives the mold to rise, the work reaches the set range, and the lower mold returns to the original after the punching is completed.
Features
1. Sheet aluminum laminated film forming, suitable for R&D and sample preparation applications.
2. The molded product is stretched evenly, with high-quality stretching effect, and no defects such as strain or rupture.
3. Driven by cylinder, the forming pressure is adjustable.

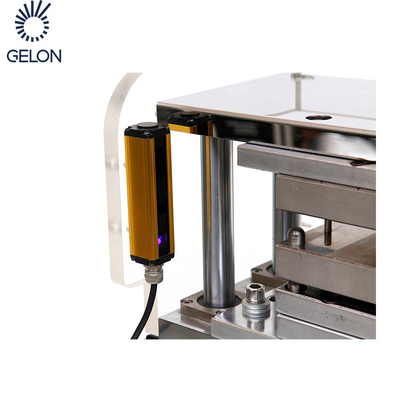

4. The discharge port is protected by a safety grating for safe operation.
5. A set of standard size molds are included, and can also be made according to customer requirements.
Model | GN-S100F |
Forming size | Max.L90*W50mm |
Punch depth | Max. 6mm |
Forming thickness | 0.1~0.2mm aluminum plastic film |
Molding accuracy | ±0.05mm |
Power supply | AC220V/50Hz.AC110V/60Hz |
Weight | about 110Kg |
