Product Details:
|
Production Name: | Lab Battery Research Production Equipment Bakery Oven Machine Heating Chamber 25L/50L Vacuum Oven | Usage: | Lithium Ion Battey Research And Production |
---|---|---|---|
MOQ: | 1 Pc | Customzie: | YES |
Shipping: | By Sea/Air/Express/Land | Supply: | Lithium Ion Battery Production Equipment |
Power: | 400W | Operating Ambient Temperature: | +5 ~ 40 ℃ |
High Light: | lithium battery lab equipment 50HZ,Lab Vacuum Drying Oven,400W lithium battery lab equipment |

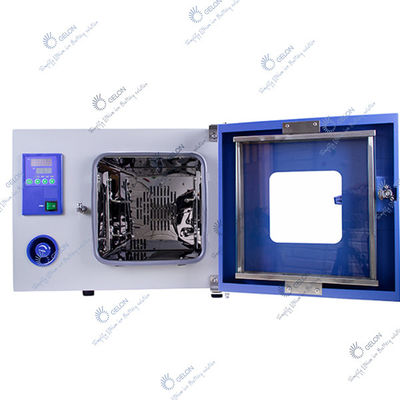

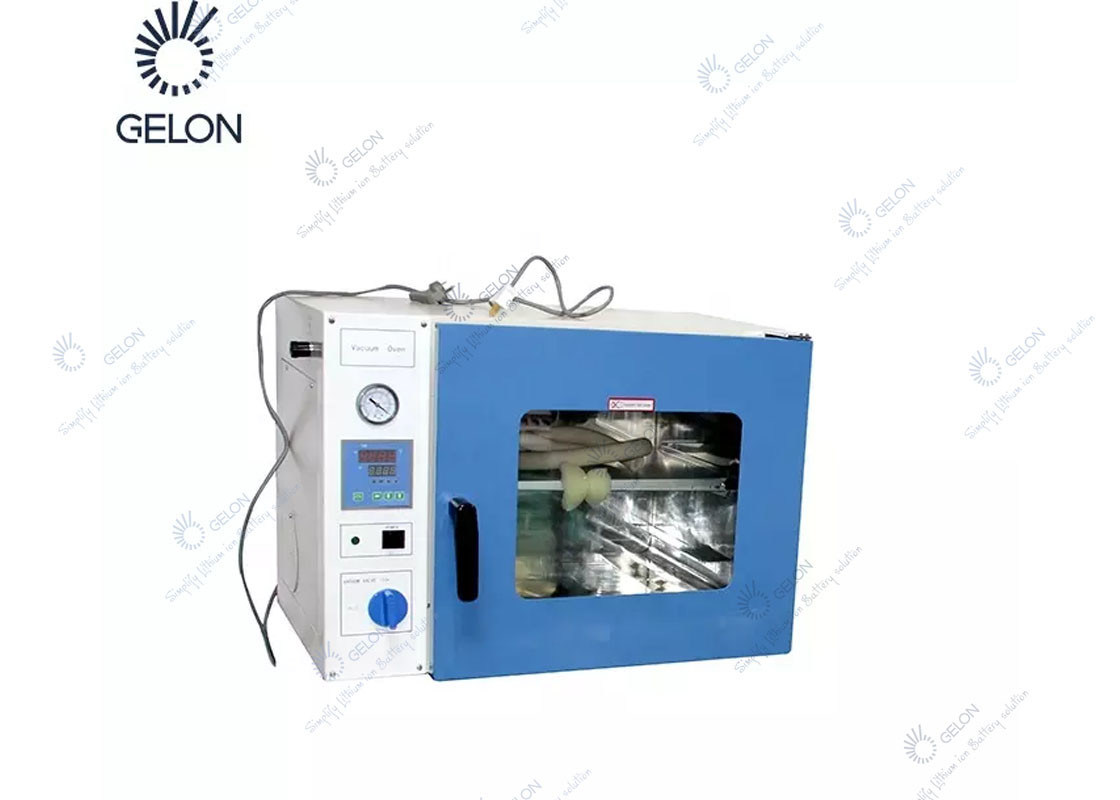

Gelon Lithium Ion Battery Drying Chamber bakery production machines Lab Vacuum Drying Oven
Features:
1 . Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
2. 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
3. Silicone door gasket and positive latch door maintain seal at all vacuum levels.
4. Exclusive polycarbonate safety shield protects door glass.
5. Easy-to-clean #304 stainless steel chamber interior.
6. Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
Type | GN-6020 |
Power Supply | Standard AC220V 50HZ, 110V can customize |
Power | 400W |
Temperature Range | RT+10 ~ 250 ℃ |
Temperature resolution | 0.1 ℃ |
Temperature fluctuation | ±1 ℃ |
Vacuum | <133Pa |
Operating ambient temperature | +5 ~ 40 ℃ |
Inner Chamber size ( mm ) W*D*H | 300*300*275 |
Outside size ( mm ) W*D*H | 605*490*450 |

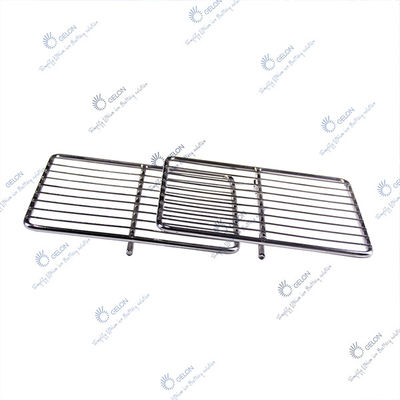

Shelf | one |
Weight | About 50kg |
Timing range | 0~9999min |
Studio material | Stainless steel liner |
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
