Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-CR2016 CR2025 CR2032 CR2430 CR2450
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD0.35-0.79/PCS
Packaging Details: wooden case
Delivery Time: 5-12days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month

Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases

Description
Product Name: Battery Coin Cell Case Material: 304SS/316SS/Aluminium
Dimension: CR2032 20*3.2mm Sealing Gasket: PP

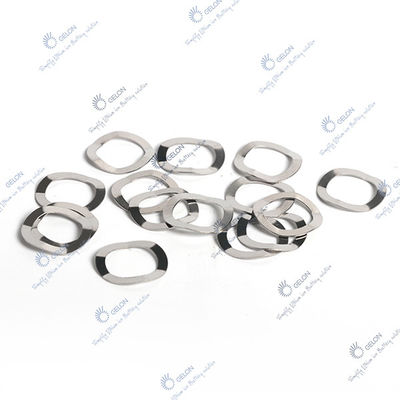

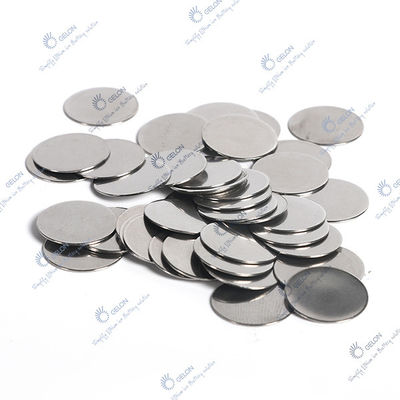

Thickness Of Case: 0.25±0.02mm Spacer: 0.2/0.5/0.8/1.0mm

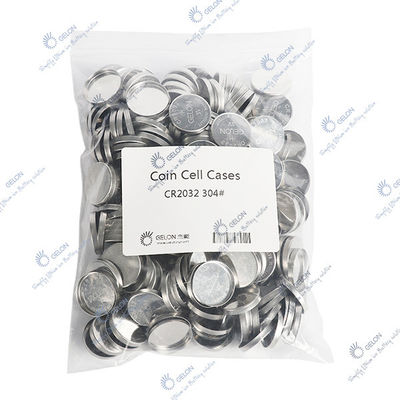

Insulating: PET Package: 100pcs/bag
High Light:

Lithium Ion Battery Materials SS304

,

SS316 Coin Cell Cases

,

Mesh Button Battery Case

SS304/SS316 Coin Cell Cases Mesh Button Battery Case Lithium Ion Battery Materials

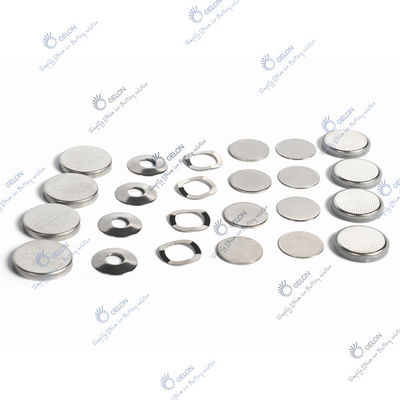

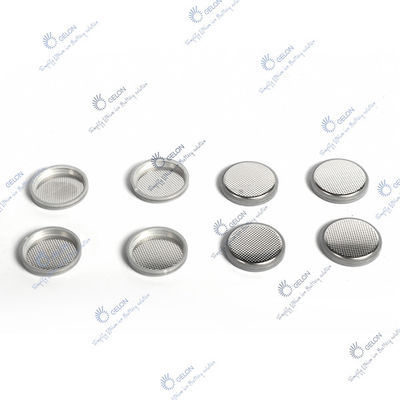

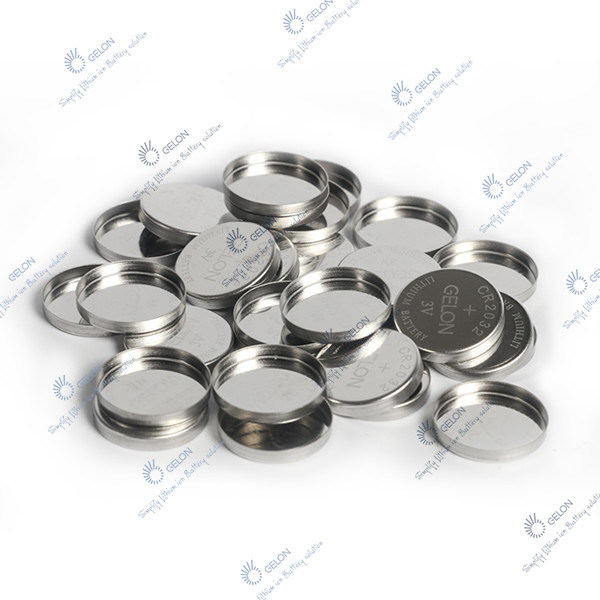

It is made of 304 or 316 stainless steel with sealing o-ring, including CR2016,CR2025,CR2032,CR2430,CR2450 etc; and we also have coin cell case with Aluminum coated on the inside of the positive can.



MATERIAL

1.Casing:SS304 or SS316 or Aluminium,
2.Sealing Gasket:PP ·

3.The thickness of the SS304/316 for both anode and cathode case is 0.25mm+/-0.02mm.





Dimensions (Dia x Height) 20 mm x 3.2 mm
Weight 1.71g
Materials 1.Casing: SS304 or SS316
2.Sealing Gasket: PP
3.The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm.
Application Note 1.After perfectly crimping, the External Height should be around 3.0mm.
2.The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
3.Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs,
and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)








Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 0



Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 1Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 2Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 3Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 4







Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 5

Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 6

Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 7

Mesh Button Battery Case Lithium Ion Battery Materials SS304 SS316 Coin Cell Cases 8
