320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly

320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly
320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly 320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly 320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly 320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly 320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly 320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly

Large Image :  320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-VM-7
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1300-1500/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50 PCS Per Month
Contact Now

320 Rpm High Speed Lithium Battery Vacuum Mixing Machine for Efficient Assembly

Description
Product Name: Vacuum Mixing Machine Rotary Speed: 320 Rpm
Net Weight: 70 Lbs Voltage Input: Single Phase 110VAC Or 220VAC
Vacuum Level: 0.08~0.09 Mpa (600 Torr- 675 Torr) Power: 150W
Highlight:

320 Rpm Battery Assembly Machine

,

150W lithium battery machine

,

Lithium Battery Vacuum Mixing Machine

320 Rpm Battery Assembly Machine Lithium Battery Vacuum Mixing Machine
Product Overview

The GN-VM-7 Vacuum Mixer is designed for mixing investment and refractory materials, plaster, and duplicating silicone. The vacuum mixing process eliminates air bubbles trapped in investment materials, improving firmness and compactness. Featuring a high-quality vacuum pump for extended lifespan, this equipment offers high vacuum degree, strong mixing power, and built-in vibrator with adjustable vibration power.

Technical Specifications
Specification Details
Voltage Input Single Phase 220VAC 50/60Hz
Power 150W
Rotary Speed 320 rpm

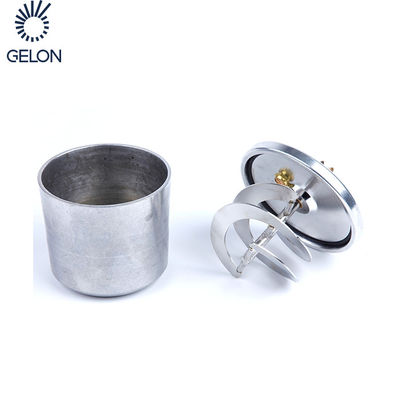

Mixing Container One 500ml aluminum container included (SS 150ml container available at additional cost)
Vacuum Pump Built-in
Vacuum Level 0.08~0.09 Mpa (600 torr- 675 torr)
Vibration Plate Vibrating at 1000 Hz
Dimension Approximately 330*310*560mm
Shipping Dimension Approximately 490*420*615mm
Weight 35KG
Product Images

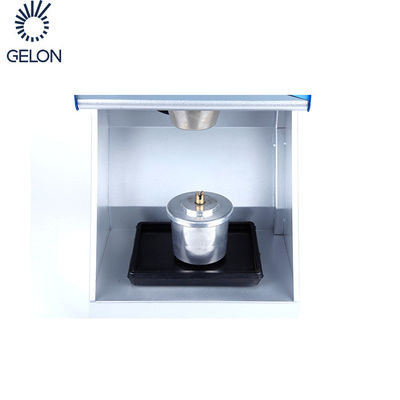

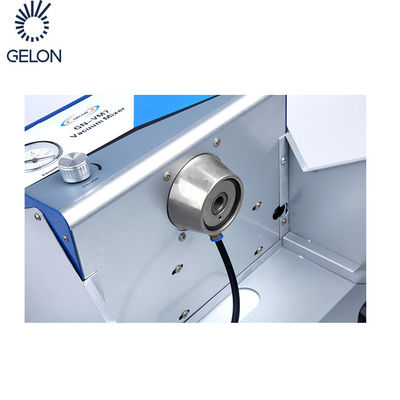

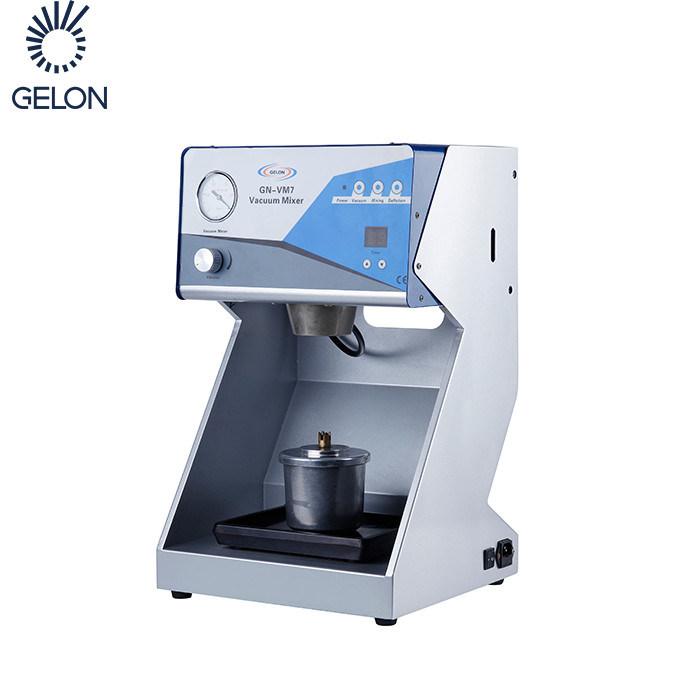

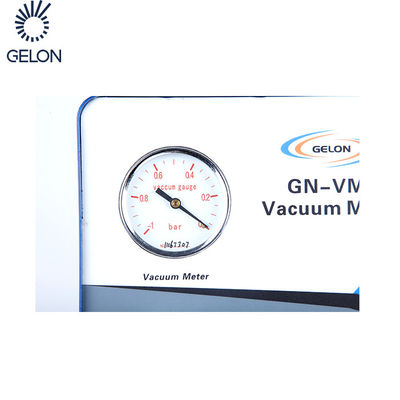

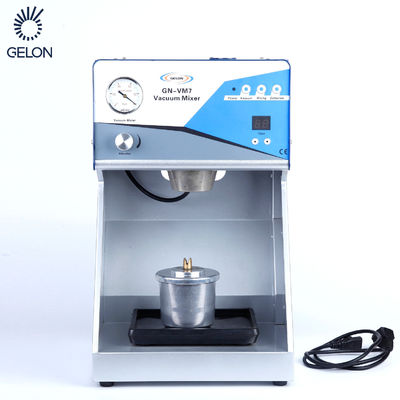

GN-VM-7 Vacuum Mixer front view GN-VM-7 Vacuum Mixer side view GN-VM-7 Vacuum Mixer operation view Lithium battery production equipment Battery manufacturing process Industrial mixing equipment Vacuum mixer components Battery assembly line equipment
Complete Lithium Battery Solutions

We provide comprehensive one-stop solutions (turn-key projects) for lithium battery production:

  • Full set of lithium battery materials including LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, Graphite (MCMB), aluminum foil, copper foils, battery separator, and other cathode & anode materials
  • Full set of lithium battery equipment including mixing machines, coating machines, ovens, rolling machines, welding machines, slitting/cutting machines, winding machines, and sealing machines
  • Complete lithium battery technology with custom laboratory and production line design according to customer requirements
Frequently Asked Questions
Are you a trading company or manufacturer?
We are both manufacturer and trading company.
Can I visit your factory?
Yes, you are very welcome to visit our facility.
How can I visit your company?
You can take a flight to Linyi or Shenzhen airport, and we can arrange pickup. Please contact us with your visit plan to confirm the schedule.
What are your terms of delivery?
We accept EXW, FOB, CIF, DAP, and other terms. You can choose the most convenient or cost-effective option for your needs.
What is your delivery time?
1-3 days for sample orders or equipment in stock. 10-30 days for mass production orders (depending on quantities).
What about after-sale service?
We provide one-year warranty and lifetime free technical support.
Do you provide other equipment or materials?
Yes, we provide full sets of lithium ion battery materials and equipment.
