Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller

Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller
Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller

Large Image :  Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-MR-100H
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1500-3000/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 PCS Per Month
Contact Now

Lab Desktop Battery Electrode Manual Roller Pressing Machine with Adjustable Rolling Thickness and Heating Rolling for High Precision Cylindrical Roller

Description
Rated Capacity: 2000W Welding Thickness: Max 3mm
Welding Materials: Nickel, Steel Strips Max Welding Speed: 3000PCS/
Air Source: 0.4-0.6MPa Welding Area: 500*400mm
Max Loading Battery Quantity: Y-Axis:20PCS*Z Axis: Welding Nickel Strip Thickness: 0.1mm-0.3mm
Highlight:

Manual roller pressing machine

,

Desktop battery research equipment

,

Lab roller pressing machine

Lab Desktop Battery Electrode Manual Roller Pressing Machine
Lab Desktop Battery Electrode Manual Roller Pressing Machine for Battery Making Research. Primarily designed for battery materials in laboratory settings, this machine enables adjustable processing of small quantities of precious metals (gold, silver) and non-ferrous materials (copper, aluminum) under controlled temperature conditions through electric hot rolling. Features adjustable rolling thickness and easy operation. Particularly suitable for clean energy materials lithium plate thinning and increased density applications.
Technical Specifications
Roll Diameter 2-Φ96mm
Rolls Finish More than 0.8
Cylindrical Roller ≤ ± 2um
Rolling Thickness 0 ~ 2mm gap adjustable
Rolling Width 0 ~ 100mm
Rolling Temperature 100ºC adjustable digital display
Voltage and Frequency AC220V / 50Hz
Feed Rate 0 ~ 40mm/s, adjustable speed
Dimensions L850mm × W350mm × H550mm

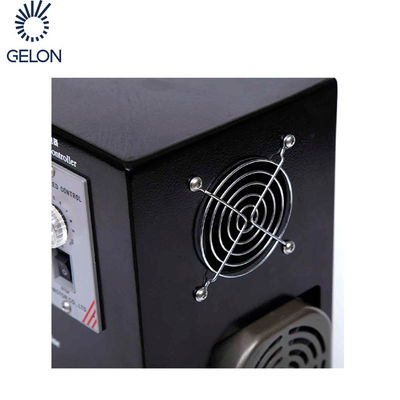

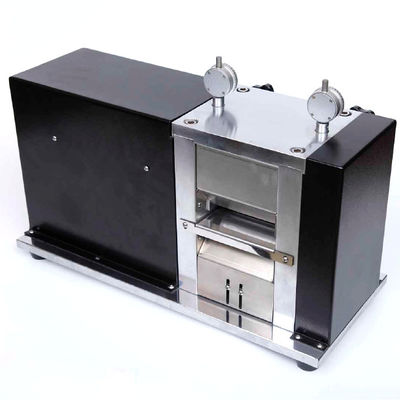

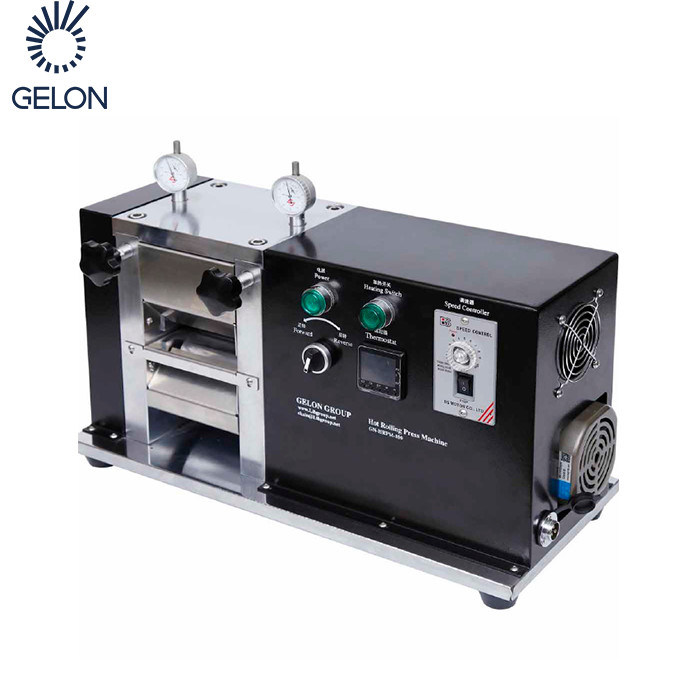

Lab Desktop Battery Electrode Roller Pressing Machine front view Lab Desktop Battery Electrode Roller Pressing Machine side view Lab Desktop Battery Electrode Roller Pressing Machine operational view Lab Desktop Battery Electrode Roller Pressing Machine detailed view
Main Features

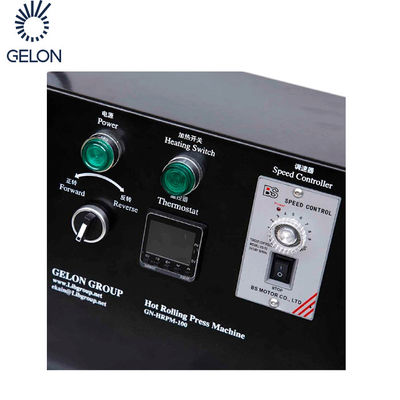

  • Heating rolling with adjustable thermostat temperature control and digital display
  • Optional operation with or without heating
  • Roll hardness with surface hard chrome plating, hardness up to HRC62 and rust-resistant

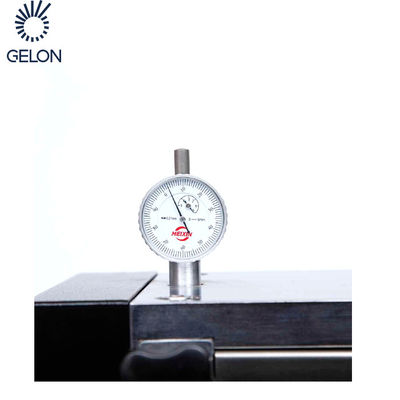

  • Ramp adjustment for compression gap with high precision
  • High precision cylindrical roller ≤±2um
  • Gear rotation system for roll repression
  • Adjustable tablet thickness and speed with exquisite appearance
  • Electric rolling with automated forming and reversing operation
  • Compact size for easy, flexible, and quick operation
Battery electrode roller pressing machine feature demonstration Battery electrode roller pressing machine close-up view
Complete Lithium Battery Solutions

We provide one stop solutions (turn key projects) including:

Full Set of Lithium Battery Materials
  • LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
  • Graphite (MCMB) and other cathode & anode battery materials
  • Aluminum foil, copper foils, battery separator, etc.
Full Set of Lithium Battery Equipment
  • Mixing machine → Coating machine → Oven → Rolling machine
  • Welding machine → Slitting/Cutting machine → Winding machine → Sealed machine
Complete Lithium Battery Technology

We design laboratories and production lines according to customer requirements.

Lithium battery production equipment setup Lithium battery manufacturing process demonstration
