Lithium Battery Pouch Pouch Cell Pilot Line Battery Assembly Line Battery Equipment

Large Image : Lithium Battery Pouch Pouch Cell Pilot Line Battery Assembly Line Battery Equipment

Product Details:

Place of Origin:	China
Brand Name:	GELON
Certification:	CE
Model Number:	GN-battery assembly line

Payment & Shipping Terms:

Minimum Order Quantity:	1/set
Price:	USD 50000-80000/set
Packaging Details:	Standard Export Package of pouch cell lab line
Delivery Time:	7-15/sky
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10/set/per /moon

Contact Now

Lithium Battery Pouch Pouch Cell Pilot Line Battery Assembly Line Battery Equipment

Description

Product Name:	Battery Assembly Line	Warranty:	1 Year
Core Components:	PLC, Engine, Motor, Pump	Application:	Lithium Ion Pouch Cell Making
After Warranty Service:	Video Technical Support, Online Support	Port:	Qingdao,Shenzhen,Shanghai
Packaging Details:	Standard Export Package Of Pouch Cell Lab Line	Applicable Industries:	Battery Making
High Light:	Lithium Battery Pouch Cell Pilot Line , battery manufacturing equipment , Pouch Cell Pilot Line CE

Battery Manufacturing Equipment Lithium Battery Pouch Pouch Cell Pilot Line Battery Assembly Line Battery Equipment

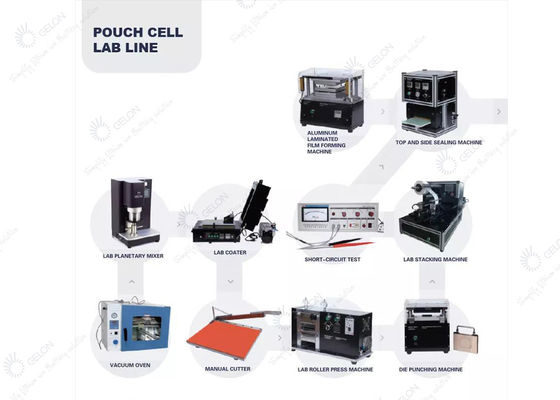

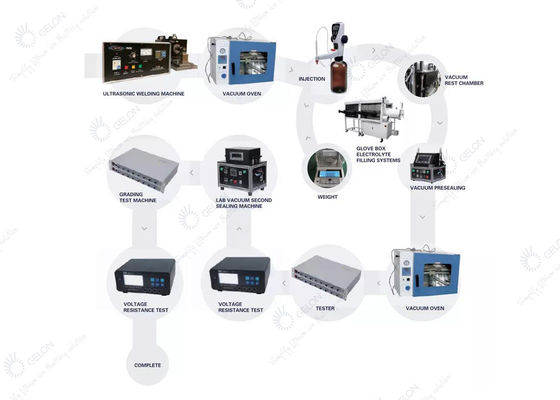

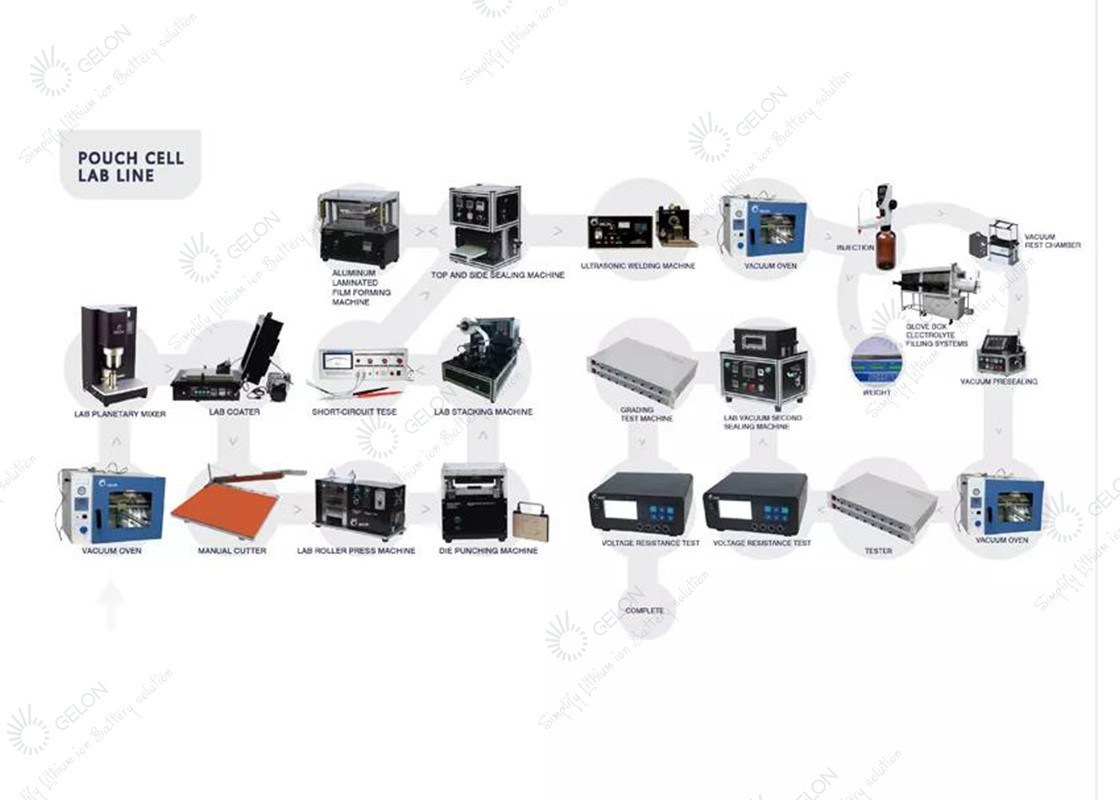

Recommend Equipment:

Process	Item	Machine name	Specification
Slurry mixing	Mixer	Small planetary mixer	With 250ml/500ml SS container
Slurry mixing	Mixer	Planetary mixer	Volume:2L,5L,10L,20L30L,etc
Electrode coating	Coater	Lab electric coating machine	Coating width :200mm,250mm,300mm ,etc
		Lab Doctor blade continuous coating machine	temperature: room temperature ~ 150 ℃ adjustable; Electrode width: ≤ 300mm;
		Lab intermittent coater	Electrode width: ≤ 300mm
		Lab slot die coater	Electrode width: ≤ 320mm
Electrode rolling	Rolling machine	Lab small electric rolling machine	Rolling width :200mm,250mm,300mm ,etc
		Hydraulic lab single piece rolling machine	Electrode Max :300mm
		Hydraulic continuous rolling	Roller size :dia200mm*300mm width
Electrode Punching	Punching machine	Lab electrode die cutter	Suitable for small size electrode cutting Max. L80*W60mm
Electrode Punching	Punching machine	Semi-Automatic Die Cutter	Max die cutting size:300x200mm(can customize as your request)
Electrode stacking	Stackig machine	Manual stacking machine	Suitable for various electrode size stacking, manual
Electrode stacking	Stackig machine	Semi-auto stacking machine	Max suitable electrode size:200mm*200mm
Tab welding	Ultrasonic welding machine	Tabs Ultrasonic welding machine	800W-8000W
Pouch cell case forming	Forming machine	Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films	Can be customized as request
Top and side sealing	hot sealing machine	Top and side sealing machine for pouch cell case	200,300,400mm sealing length
Electrolyte injection	Electrolyte filling machine	Electrolyte injection pump	Can be choosed according to pouch cell size
Electrolyte Diffusion & Degassing	Electrolyte Diffusion & Degassing	Pouch Cell Electrolyte Diffusion/Degassing Chamber	Can be put into glove box Type 200mm,300mm,400mm
Vacuum sealing	Vacuum sealing	Lab pouch cell case pre-sealing machine	Can be put into glove box Sealing length200mm,300mm,400mm
Battery testing	Battery tester	5V 6A	Testing range:Current 6A Voltage 5V

Lithium Battery Pouch Pouch Cell Pilot Line Battery Assembly Line Battery Equipment 0
