Manual Hydraulic Crimping Machine for High Precision Sealing with CR20XX Coin Cell Crimper

Large Image : Manual Hydraulic Crimping Machine for High Precision Sealing with CR20XX Coin Cell Crimper

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-CC20

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden box
Delivery Time:	within 15 days
Payment Terms:	L/C,T/T
Supply Ability:	10set/month

Contact Now

Manual Hydraulic Crimping Machine for High Precision Sealing with CR20XX Coin Cell Crimper

Description

Working Type:	Manual	Product Name:	Coin Cell Crimping Crimper Machine
Sealing Pressure:	Min.80Kg， Max.1400Kg	Sealing Stroke:	30mm
Pressure Accuracy:	±1.5%	Sealing Mold:	Cr20XX
Net Weight:	About 27kg	Equipment Size:	About L270W290H340mm
Highlight:	CR20XX Coin Battery Research , Coin Cell Hydraulic Crimper Machine , Coin Battery Research Hydraulic

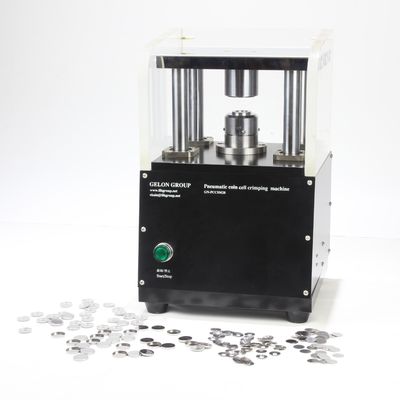

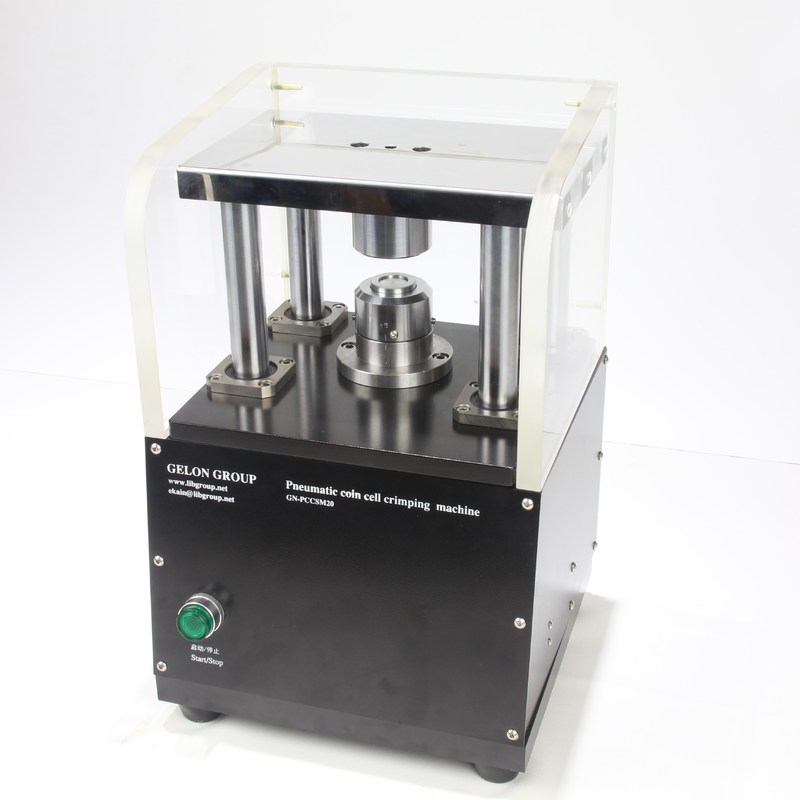

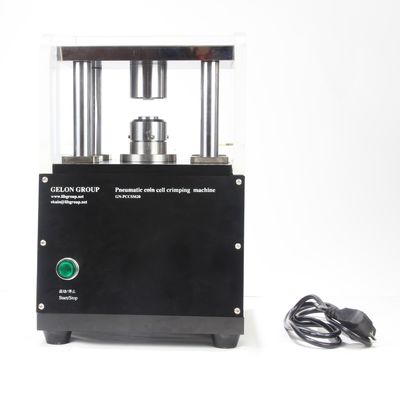

CR20XX Coin Battery Research Hydraulic Lithium Coin Cell Crimper Machine

CR20XX Hydraulic Lithium Coin Cell Crimping Crimper Machine

Equipment Features

Adopt special hydraulic structure, high pressure, easy operation
High precision sealing, easy to operate
The button cell of different specifications can be sealing and disassembled with different moulds
It has the advantages of small size, convenient operation and precise molding

Technical Specifications

Name	Specs	Note
Sealing pressure	Min.80Kg, Max.1400Kg	The battery pressure of different diameters can be adjusted. The best pressure for CR20 series will be set if without special requirements: 50kg/cm²~60kg/cm²
Sealing stroke	30mm
Pressure accuracy	±1.5%
Sealing efficiency	20second/pcs	Refer to CR2032 cell
Sealing mold	CR2032 for standard	Others can be customized
Disassembling mold	CR2032 for standard	Others can be customized
Working type	Manual	Can be in glove box
Equipment size	About L270W290H340mm
Packing size	About L380W300H440mm
Net weight	About 27kg
Gross weight	About 38kg
Using field		Can use in the glove box freely. For details, check whether the space of the glove box matches the external size of the device
Warranty	One year limited warranty with lifetime support

Complete Battery Manufacturing Solutions

We also supply all materials and full sets of equipment for Li-ion battery manufacturing.

Available Products & Services

Full set of lithium battery materials including: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂, Graphite (MCMB) and other cathode & anode battery materials; Aluminum foil, copper foils, battery separator, etc.
Full set of lithium battery equipment including: mixing machine, coating machine, oven, rolling machine, welding machine, slitting/cutting machine, winding machine, sealed machine, etc.
Full set of lithium battery technology - we can design the laboratory and production line according to customer's request
