2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine
2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine

Large Image :  2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: 2L 5L 10L 20L 60L 100L 1000L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD20000-150000/Set
Packaging Details: Wooden box
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000set/month

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine

Description
Product Name: Planetary Vacuum Mixing Machine Barrel Volume (L): 2L 5L 10L 20L 60L 100L 1000L
Max. Loading Volume (L): 1000 L Max. Loading Capacity: 1000
Material: SUS304, SUS304L, SUS316, SUS316L Applicable Industries: Lithium Ion Battery Manufacturing
Mixing Propeller Shape: Espiral Vacuum Degree: -0.098Mpa
Dispersion Speed(rotation): 0~4500rpm Mixing Shaft/propeller Rotate Speed: 0~65rpm Can Be Adjustable
Linear Speed: 0~12m/s Barrel Inside Materials: SUS304
Range Of Spindle Speed(r.p.m): 1 - 50 R.p.m
High Light:

100L Slurry Vacuum Mixer

,

60L Planetary Mixing Machine

,

20L Slurry Vacuum Mixer



2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer High Speed Double Planetary Mixing Machine for Lithium Battery Production
GN-PM-20L Vacuum Planetary Mixer with effective 20-liter containers .It is a set of scattered, mixed multifunctional efficient equipment for lithium-ion polymer battery fluid and liquid lithium ion battery fluid, electronic battery paste.The main include disperser scraper paddle, mixing bucket, stir cover, stirring power head, temperature control device, the body lifting devices, lock barrel device and control system and other components.
Barrel part
lDesign Volume: 28L; working volume: 8-20L; lTank Liner Size: φ350mm × 300mm;
lContainer material: contact with material 304
Mixing part
lWorking frequency: 5-50hz lStirring power: 2.2kw
lRotor speed: 7-79rpm
lPlanetary box speed: 4-49 rpm
lImpeller diameter: 194mm

Power 1.85KW
Working voltage 380V/50Hz,3 phase
Effective volume 2L,5L,10L,20L,30L,60L
Main shaft speed 0-65rpm,can be adjustable
Stirring speed 0-105rpm,can be adjustable
Dispersing speed 0-3000rpm,can be adjustable

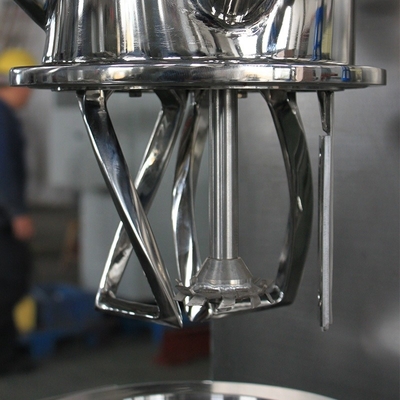

Mixing blades 3 axis planetary mixing 2 stirring blade
1 dispersing blade
1 spatula
Accessories vacuum pump and water chiller can be included

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 02L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 12L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 22L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 3

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 4

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 5

2L 5L 10L 20L 60L 100L Slurry Vacuum Mixer Double Planetary Mixing Machine 6
