Lab Planetary Vacuum Mixing Machine Pouch Cell Pilot Line Mixing Machine

Description
Production Name: Lithium Battery Pouch Cell Lab Assembly Equipment Usage: Pouch Cell Research And Production
MOQ: 1 Pc Customzie: YES
Shipping: By Sea/Air/Express/Land Supply 1: Lithium Ion Battery Raw Material
Supply 2: Lithium Ion Battery Production Equipment Supply 3: Lithium Solid Battery Raw Material
High Light:

Lab Pouch Cell Pilot Line

,

Lithium ion battery vacuum mixing machine

,

Pouch Cell Pilot Line CE

Lab Planetary Vacuum Mixing Machine Pouch Cell Pilot Line Mixing Machine

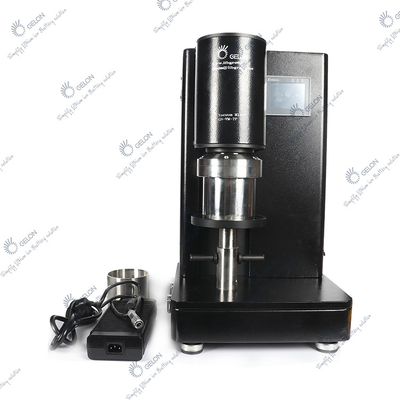

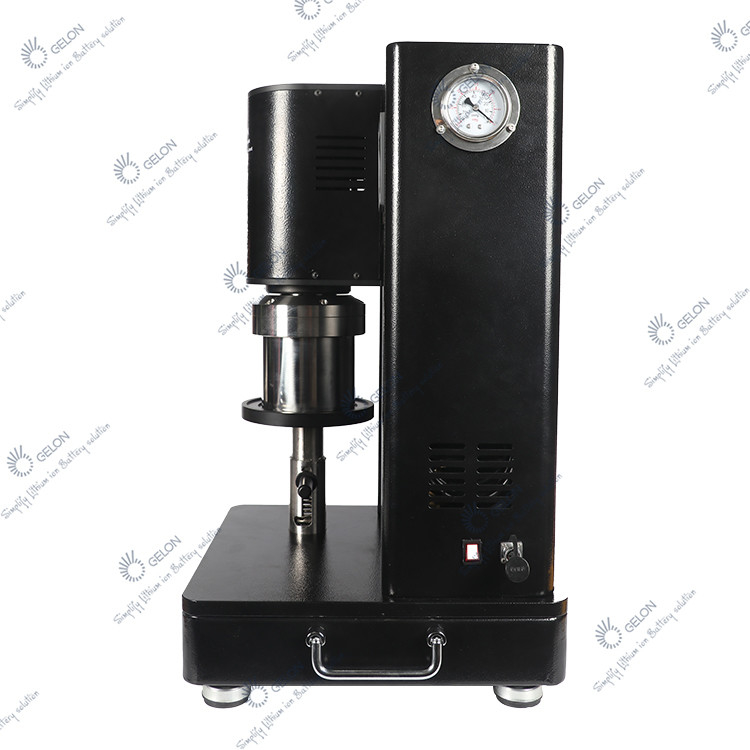

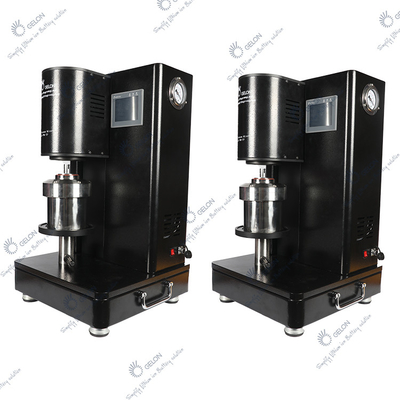

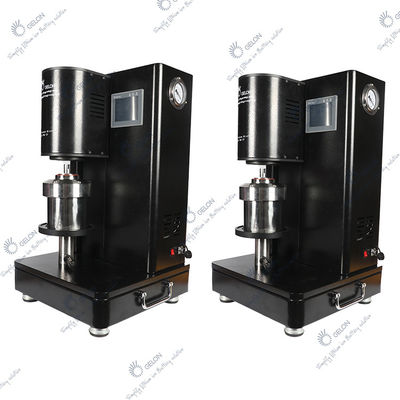

The planetary vacuum mixer can be applied to the mixing process of various solvents and powders, such as the raw material batching process of lithium ion batteries, tape, solar energy, and chemical industries. The equipment is beautiful in appearance, small size, convenient and easy to use. The speed of the motor is adjusted in the man-machine interface to drive the blades to rotate and stir the slurry evenly. It is an ideal choice for laboratory slurry preparation.



Lab Planetary Vacuum Mixing Machine Pouch Cell Pilot Line Mixing Machine 0

Lab Planetary Vacuum Mixing Machine Pouch Cell Pilot Line Mixing Machine 1

Features:

(1) The equipment is equipped with dual-shaft planetary ribbon stirring paddle and single-shaft blade stirring paddle, and different stirring shaft forms and combinations are configured according to the size of the stirring tank;

(2) The design of forward and reverse mixing function can realize high-speed mixing of higher viscosity slurry with good mixing uniformity;

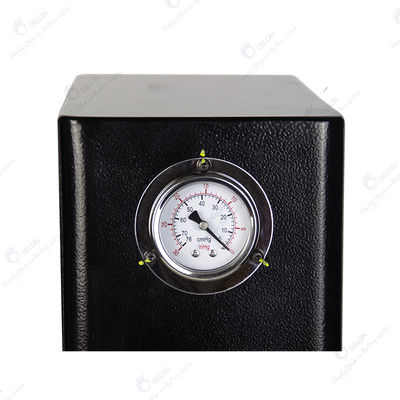

(3) The vacuum environment can effectively eliminate the bubbles generated during the mixing process. The machine comes with a vacuum system;

(4) Multi-stage speed operation is possible, and the stirring speed and time of each stage can be set;

(5) The volume of the stirring tank is respectively 50ml, 150ml, 500ml optional, (can be customized according to requirements);

(6) The bracket design is convenient for operation and ensures the safety during the vacuum mixing process;







ITEM  VALUE
Power Supply single-phase 110~220V
Use environment 25±3℃, humidity is 30~90RH
Speed Max 600rpm
Vacuum Build in, vacuum degree ≥-70Kpa
Mixing Time 0-600min can be set
Multi-stage function  Three-stage speed can be set
Working Viscosity Speed <600R/min, Max1000mpa.s
Equipment Size 360(L)*340(W)*580(H)
Weight About 60KGS

























Lab Planetary Vacuum Mixing Machine Pouch Cell Pilot Line Mixing Machine 2

Lab Planetary Vacuum Mixing Machine Pouch Cell Pilot Line Mixing Machine 3

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
