Product Details:
|
| Product Name: | Intermittent Coater Machine | Application: | Coating |
|---|---|---|---|
| Usage: | Battery Electrode Making | Warranty: | 1 Year |

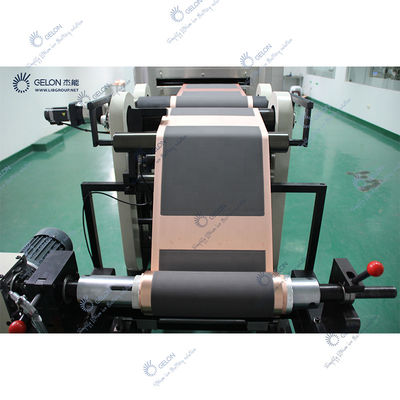

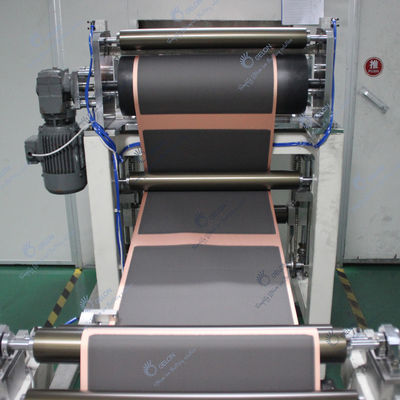

| Methods: | Continuous And Intermittent Coating | Coating Structure: | Controlled By PLC,feeding System |
| High Light: | Battery Electrode Intermittent Coater Machine,Automatic Continuous Coater Machine,Gelon ntermittent Coater Machine |
||

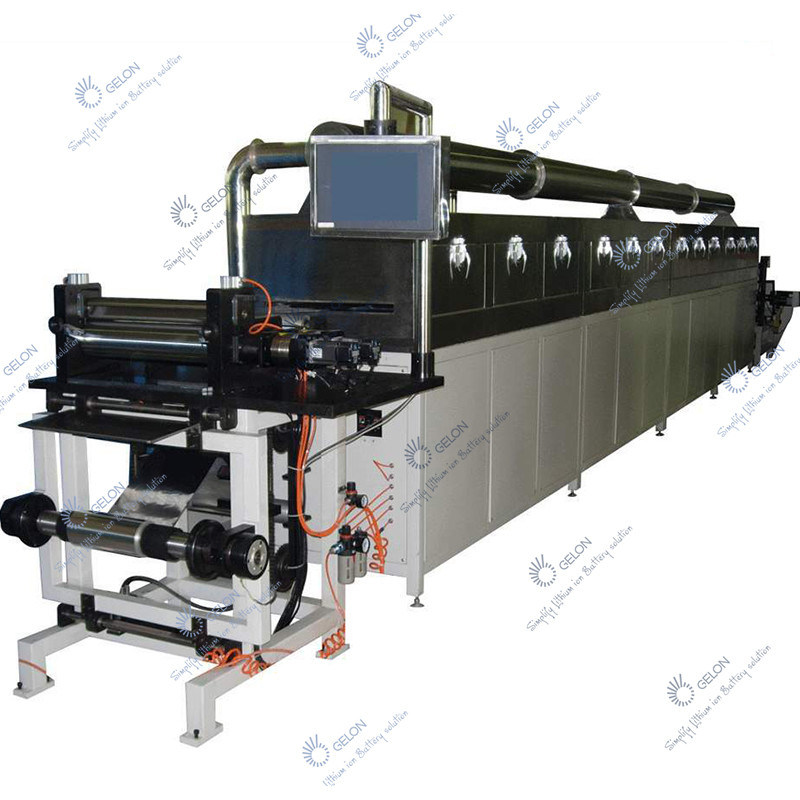

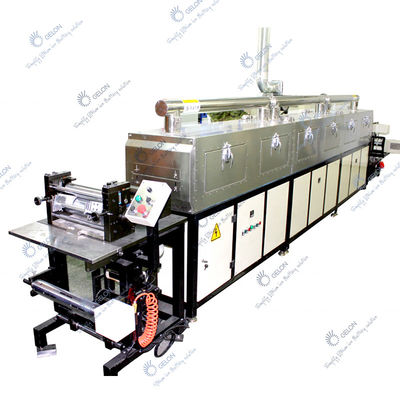

High Grade Automatic Continuous And Intermittent Coater Machine
1.Basic material thickness: aluminum foil 0.012~ 0.030mm ; Copper foil 0.008 ~ 0.030mm ；
2.Basic material width: aluminum foil 100-440mm; Copper foil 100-440mm.
3.The max.thickness of wet coating:80~400um(viscosity of the slurry be allowed)
4.The max. coating width: 440mm , The max. coating roll width: 500mm
5.The mechanical tape speed: 0.5 ~ 8m/min(Max) ;
6.The coating Speed: 0. 5 ~ 5m/min ( different from with the slurry material, thickness, viscosity )
7.Total Length of the machine:2m*Drying Box 4 part+3m=11m
8.Power supply: 380V 50HZ 40KW
9.Air supply:0.5-0.7MPa
|
Unwinding structure |
Adjustable-speed motor,unwinding roller with tension control,auto rectify deviation system and etc |
|
Coated floating roller tension structure |
Roller,chain wheel,position sensor,counterweight roller |
|

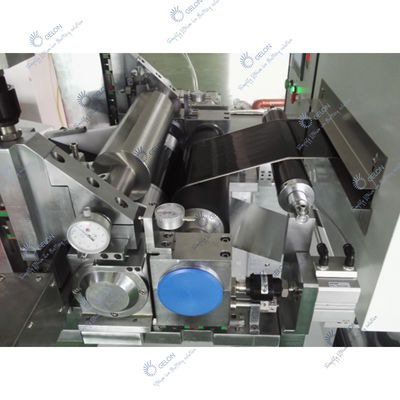

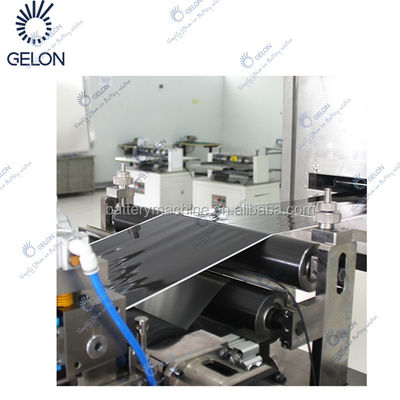

Coating structure |
Controlled by PLC,feeding system,applicator knife roller,backup roll,drive motor,FOS,precision bearing,and high-performance pneumatic elements |
|
Drying system |
Heater,wind machine,exhaust duct and wind hole,heat preservation box,inspection door |
|
Take-up structure |
Outlet of oven,float roller tension structure,wrap-up driving device and wrap-up tension sensor system |
|
Wrap-up system |
Adjustable-speed motor,wrap-up roller and auto rectify deviation system |
