Product Details:
|
| Mixer Type: | Planetary | Barrel Volume (L): | 100-1000 |
|---|---|---|---|
| Material Processed: | Lithium Ion Battery | Max. Loading Volume (L): | 1000 L |
| Weight (KG): | 570 KG | Product Type: | Mixing Machine, Battery Slurry Mixing |
| Application: | Liquid, Lithium Ion Battery | Voltage: | 380V |
| Dimension(L*W*H): | 1350*800*1550mm | Power (kW): | 1.85 KW |
| High Speed: | 0~8800r/min | Fast Shaft: | Double Fast Shaft With Two Sets Dia 50 Dispersion Disk |
| Vacuum Degree: | -0.098MPa | Rotation Speed: | 0~102r/min |
| High Light: | Lithium Ion Battery Production Equipment,Double Planetary Mixing Machine,1000 L Battery Production Equipment |
||

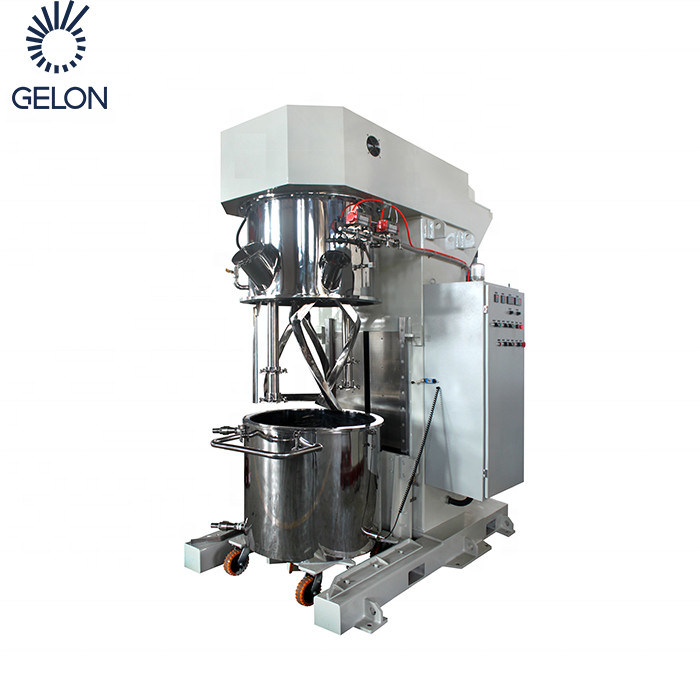

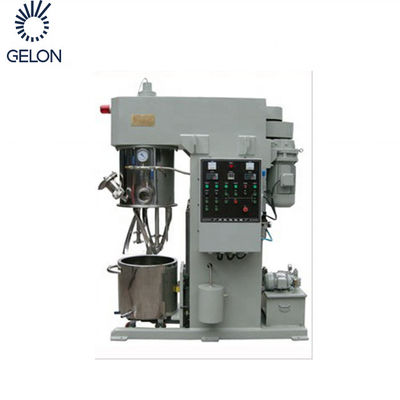

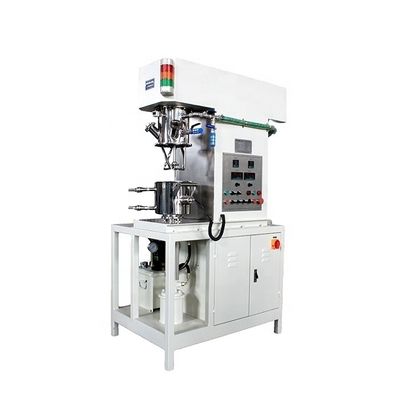

Gelon Manufacture Large Double Planetary Mixing Machine for Lithium Ion Battery Production Equipment
Product Description

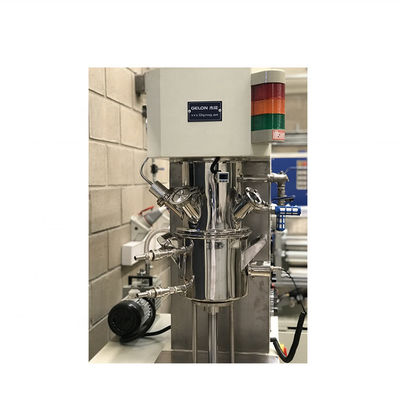

GN-PM-20L Vacuum Planetary Mixer with effective 20-liter containers .It is a set of scattered, mixed multifunctional efficient equipment for lithium-ion polymer battery fluid and liquid lithium ion battery fluid, electronic battery paste.The main include disperser scraper paddle, mixing bucket, stir cover, stirring power head, temperature control device, the body lifting devices, lock barrel device and control system and other components.
Our double planetary dispersing power mixer has combined the theories of the traditional double planetary mixer and high speed dispersing mixer, to create a new, high-efficient machine, at present it is widely used in new energy fields.

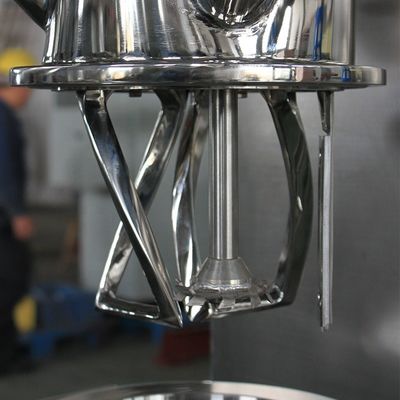

As per the character of Lithium-ion power cells and electronics capacity, we developed new reinforced machinery applied to the dry powder process for making Lithium power positive&negative electrode slurry , based on the traditional planetary mixers and dispersing power mixers, with high rotation speeds and larger torque. During the design, our company fully considered factors such as the rotational speed of stirrers, mixing power, linear dispersion speed, high viscosity slurry resistance reduced by reasonable twist stirrer shape, and distribution of turbulence intensity inside of the vessel to create the more efficient and more stable double planetary power mixer and the reinforced twist stirrers can deal with high viscosity battery slurry. The stirrer characters for the power mixer is that - the revolution and rotation of twist stirrer is clockwise -meanwhile rotation for high speed dispersing is anticlockwise,whose speed is adjustable to make the materials move complicatedly under shearing,kneading and dispersing,effectively eliminates all dead point and climbing phenomena during mixing. Three sets of mechanical seals, coupled together with soft and silence sealing to make sure reliable seal performance. On materials temperature control, it’s used with unique thermoscope technology-planetary frame and thermoscope rod for revolution. Pt100 temperature measurement sensors have direct contact with material, greatly increasing accuracy of temperature measurement, response is much faster, error is reduced to only ±0.2℃.
The machine is comprised of the base, crossbeam, upright column , sealing cover ,vessel, transmission system and electronic control system.
Main Technical Parameter
| 1 | Vacuum Degree | -0.098MPa |
| 2 | Structure | Single arm type |
| 3 | Rotation Speed r/min |
Revolution:0~51r/min,Rotation:0~102r/min(Frequency-converting 0~50Hz); High speed:0~8800r/min(Frequency-converting 0~70Hz); |
| 4 | Slow Shaft | 2 shafts with Twist type Stirrer; |
| 5 | Fast shaft | Double fast shaft with two sets Φ50 dispersion disk |
| 6 | Lifting mode | Liner guide rail vessel motor-driven lifting |
| 7 | Lifting height | 210mm |
| 8 | Location of vessel | There are four pieces of curve shape position plate at the front and rear for fixture,with convex verge structure , to make sure the center position |
| 9 | Noise | Measured outside 1M of the equipment, noise ≤80dB |
| 10 | Mode of Temperature Measurement | Temperature testing head touches the material,1/3 far away from the vessel bottom, revotion motion,inner sets electric transfer device |
| 11 | Electric power | AC:3phase*380V,50Hz; |
| 12 | Dimension | L1350W800H1550(mm); |
| 13 | Weight | Abt 570kg |
| Type | 100L | 200L | 300-500L | 1000L |
| Design Volume(L) | 130 | 265 | 650 | 1258 |
| Effective Volume (L) | 100 | 200 | 500 | 1000 |
