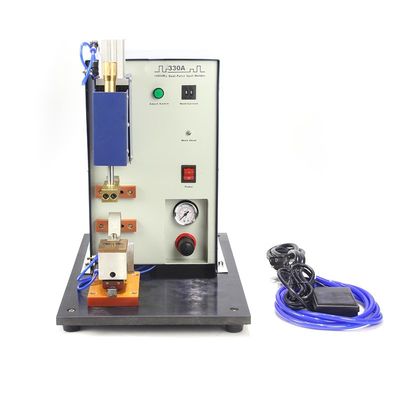

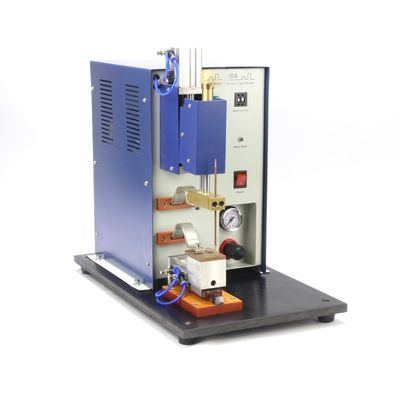

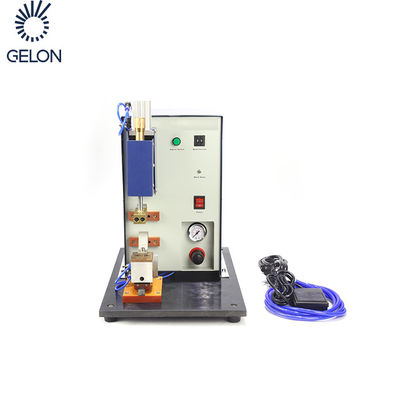

Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal

Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal
Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal

Large Image :  Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-6020
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: USD 1300-1400/PCS
Packaging Details: Wooden Carton
Delivery Time: 4-6 week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 PCS Per Month

Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal

Description
Max Output Power: 10kVA Welding Materials: Nickel, Steel Strips
Welding Thickness: 0.03mm-0.5mm Current: Inverter Current
Weight: 45kg Size: 800L × 580W × 1200h(mm)
Welding Current: 0-99A Input Air Pressure: 0.1-0.8MPa

Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal

GELON precision spot welding is widely popular AC pulse spot welding, based on the production of high-grade battery (nickel-cadmium, nickel hydrogen, lithium batteries) the world needs now and specially designed. Microcomputer MCU control, more stable and reliable.

Specification:
Battery welding machine welder for battery tabs packs
1. Power supply: AC 220V±10% 50Hz±2Hz
2. Max output power: 10KVA
4. Welding current: 00-99
5. Overall weight: 48KG
6. Dimension: 800L×580W×1100H (mm)
7. Scope of application: Suitable for 0.03mm~0.5mm soldering lugs.

Produce:

This precise pneumatic single point welding machine is specifically designed for professional Li-ion Battery Research.

1. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case.

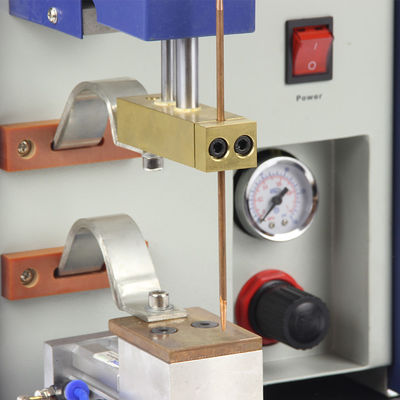

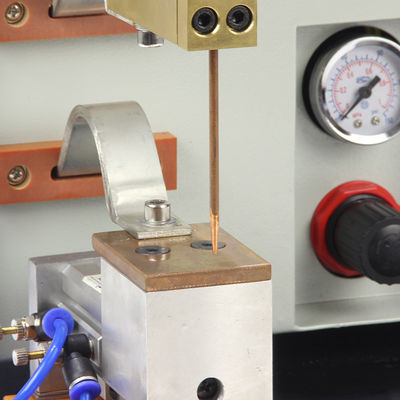

2.A diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom.

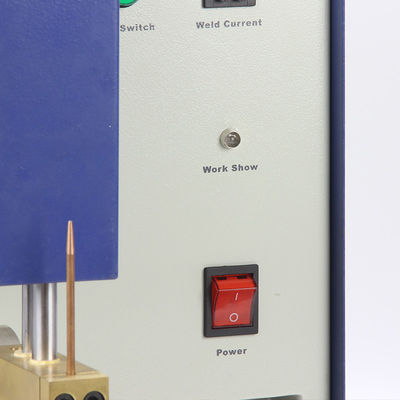

3.This machine is controlled by the microcontroller, which is very easy to operate and can provide stable performance .
SPECIFICATIONS
Power Supply
220-240V, Single Phase 50/60Hz
Max. Power
10KW
Air Pressure Range
0.1 - 0.8 MPa ( air compressor is required, pls order at related product below )
Welding Current
0-99A
Welding Thickness
0.03 - 0.25mm
Operation Temperature
-20 - 40ºC
Controller

Controlled by microcontroller,achieve monopulse, dipulse, mutiple-pulse welding
Pressure
Pressure applied on the welding needle can be adjusted independently and easy to operate
Design
*Unique Photoelectric switch design

*Good appearance, small size and light weight

*Welding spot looks beautiful,free spark, stable welding current
Weight
45 kg (100 lbs)
Product Dimensions
30.5cm(L) x 50.5cm(W) x 49cm(H)
Warranty
one year limited with lifetime support



Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 0Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 1Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 2

Our Services

We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.

Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 3Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 4Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 5Single Spot Welding Machine for Welding Cylinder Core′ S Negative Terminal 6
