Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter

Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter
Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter

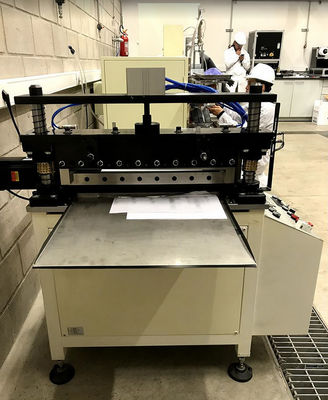

Large Image :  Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S400
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD6500-7800/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter

Description
Product Name: Intermittent Cutting Machine Cutting Range: 400mm
Cutting Precision: ± 0.3mm Speed: 0-7m/min Adjustable
Unwinding Tension Adjustment: 12Nm Dimension: L*W*H=1120*500*900mm
Power: 0.5KW Control: PLC Control
High Light:

0.5KW Battery Production Equipment

,

400mm electrode cutting machine

,

Intermittent Cutting Battery Production Equipment

Battery Equipment Electrode Cutting Machine Pneumatic Intermittent Cutter Battery Production Equipment

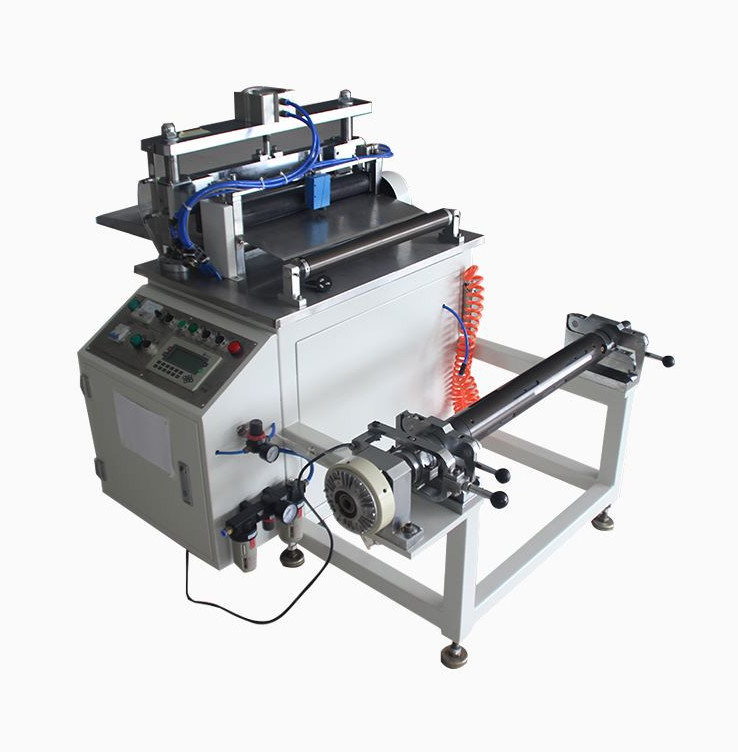

The equipment used for the lithium-ion battery cutting pole piece automatically, the user can set the size of the cut length. It’s mainly consists of the drive part, PLC control, cutting device (or automatic discharge device) parts.The drive part adopts motor driver of feed rollers to cut pole piece; PLC controlled using a special motor drive can be realized Chinese display, length setting, speed setting;the cutting device adopts precision mold, the up and down knife mold and pneumatic driven, automatic feeding according to the pole piece feeding, or according to the coating gap to track for pole piece cutting,cutting can be set many times



Cutting range 400mm
Cutting precision ± 0.3mm
speed 0-7m/min adjustable
Unwinding tension adjustment 12Nm
Dimension L*W*H=1120*500*900mm
Power 0.5KW










Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter 0Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter 1

Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter 2

Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter 3

Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter 4

Electrode Cutting Machine Battery Production Equipment Pneumatic Intermittent Cutter 5
