Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-SMA400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-27000 set
Packaging Details: Standard export package
Delivery Time: 30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Electrode Cutting Battery Assembly Machine Continuous Automatic Slitting Machine

Description
Product Name: Automatic Battery Slitting Machine Suitable Substrate: Cathode And Anode Electrode Of Lithiumbattery
Application: Electrode Slitting To Smaller One. Customize: YES
MOQ: 1 PC Other Supply: Lithium Ion Battery Raw Material
Other Equipments: Battery Coating Machine, Electrode Winding Machine,slurry Mixing Machine... Technical Support: Yes, According To Customer's Request
High Light:

Electrode Cutting Battery Assembly Machine

,

Battery automatic slitting machine

,

Battery electrode cutting machine

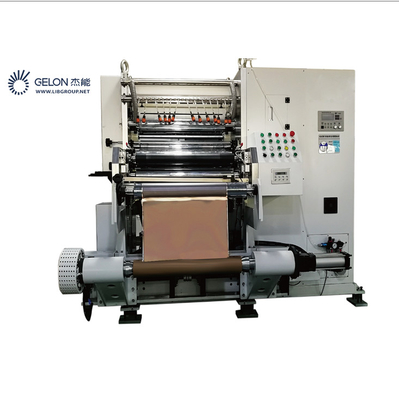

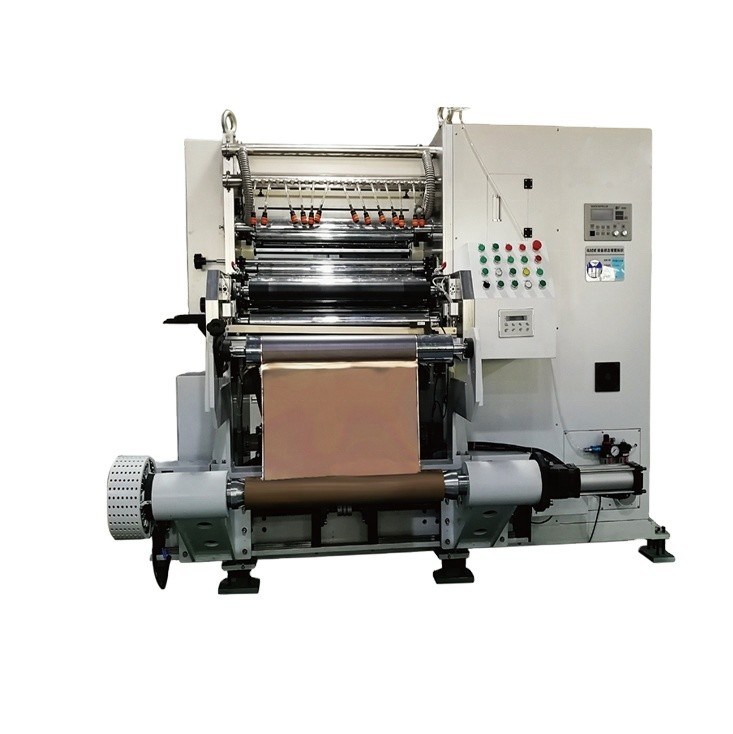

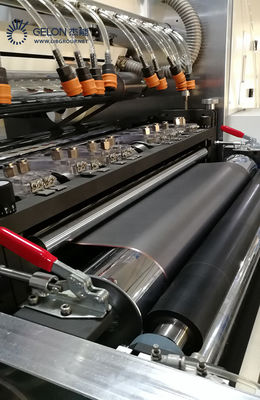

Battery Electrode Cutting Continuous Automatic Slitting Machine For Battery Assembly Machine


1. It is used for normal lithium ion battery electrode, EV battery electrode and super capacity electrode slitting.

2. It adopts French un-winder tension system, adjustable constant tension un-winder with digitizing, the electrode tension is stable, and the tension control precision is high, also with high precision EPC system.It also could cut little undesirable electrode, so the adaptability for electrode is good.
3. Re-winder in slip frequency shaft way, it has constant tension or taper to adjust the tension re-winder mode, and with the auto-tracker for neat, steady and un-wrinkle.
4. Adopts switching cutter module, aslso could be ordered several modules with customer's request. it could achieve the battery type transform and maintain, high efficiency.
5. PLC system

Suitable substrate Cathode and anode electrode of lithiumbattery
Suitable for substrate width Foil Max.400mm
Unwinding roll 3 in.
Unwinding system Constant tension closed-loop unwindingsystem

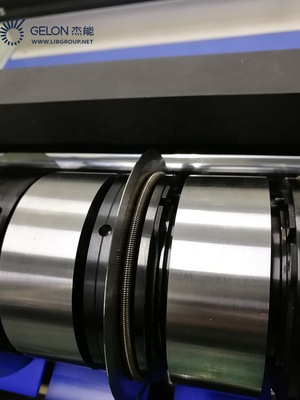

Slitting system Circular knife cutting
Mechanical speed 1~50m/min
Reel width afte rslicing 50-400mm
Slitting width precision ±0.05mm
control method PLC+Servo System
Scrap edge slitting width ≥5mm



Electrode Cutting Battery Assembly Machine Continuous Automatic Slitting Machine 0Electrode Cutting Battery Assembly Machine Continuous Automatic Slitting Machine 1



Electrode Cutting Battery Assembly Machine Continuous Automatic Slitting Machine 2Electrode Cutting Battery Assembly Machine Continuous Automatic Slitting Machine 3Electrode Cutting Battery Assembly Machine Continuous Automatic Slitting Machine 4

What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.
2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
