Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate
Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate

Large Image :  Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate

Product Details:
Place of Origin: China
Brand Name: GELON
Certification: ce
Model Number: GN-LMFP64
Payment & Shipping Terms:
Minimum Order Quantity: 1KG
Price: USD50-55/kg
Packaging Details: Standard carton for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10000 kgs per month

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate

Description
Production Name: Lithium Ion Battery Cathode Powder Active Raw Materials NMC 811/111 Usage: Lithium Ion Battery Research And Production
MOQ: 5KG Sample: Yes
Warranty: 3months-1 Year Supply 1: Lithium Ion Battery Raw Material
Supply 2: Lithium Ion Battery Production Equipment Supply 3: Lithium Ion Solid State Battery Raw Material
High Light:

LMFP powder Coin Battery Research

,

solid state battery cathode materials

,

lithium manganese iron phosphate powder

Lithium Ion Battery cathode materials Lithium Manganese Iron Phosphate LMFP powder



The theoretical capacity of lithium iron manganese phosphate is 170mAh/g, which is the same as that of lithium iron phosphate, but its electrode potential relative to Li+/Li is 4.1V, which is much higher than the 3.4V of lithium iron phosphate, and it is located in the stable electricity of the organic electrolyte system. Chemistry window. The high potential of 4.1V gives lithium iron manganese phosphate the potential advantage of high energy density, which is its biggest advantage over lithium iron phosphate. If the actual capacity of lithium iron manganese phosphate reaches the same level as that of lithium iron phosphate, its energy density will be 15% higher than that of lithium iron phosphate, and its mass energy density can also be increased by more than 25% compared with lithium manganate with the same voltage.



Type: LMFP64, LMFP82





ITEM UNIT VALUE
D10 um 0.507
D50 um 2.043
D90 um 5.439
Moisture ppm 614
Tap Density g/cm3 1.16
SSA m2/g 28.7
Li % 4.4
Mn % 27.5
Fe % 6.8
P % 19.3
C % 2.76
First discharge efficiency % 93.47

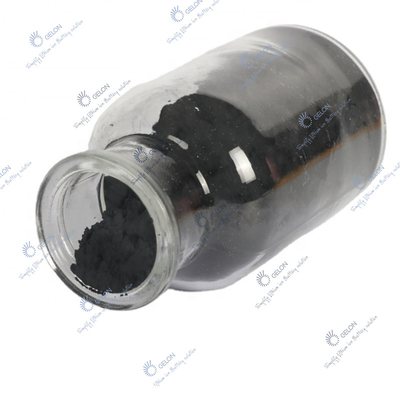

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate 0

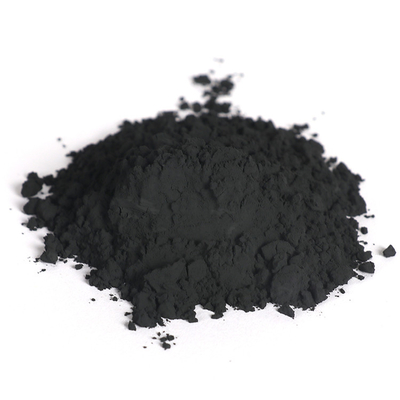

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate 1

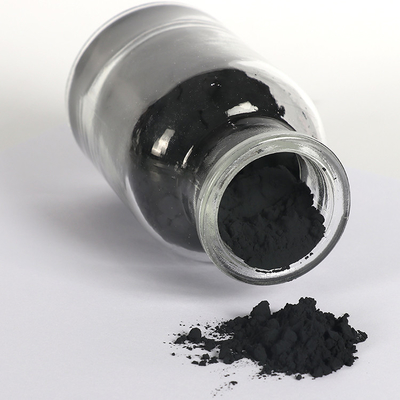

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate 2

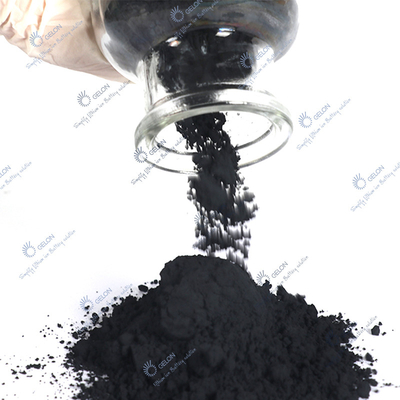

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate 3

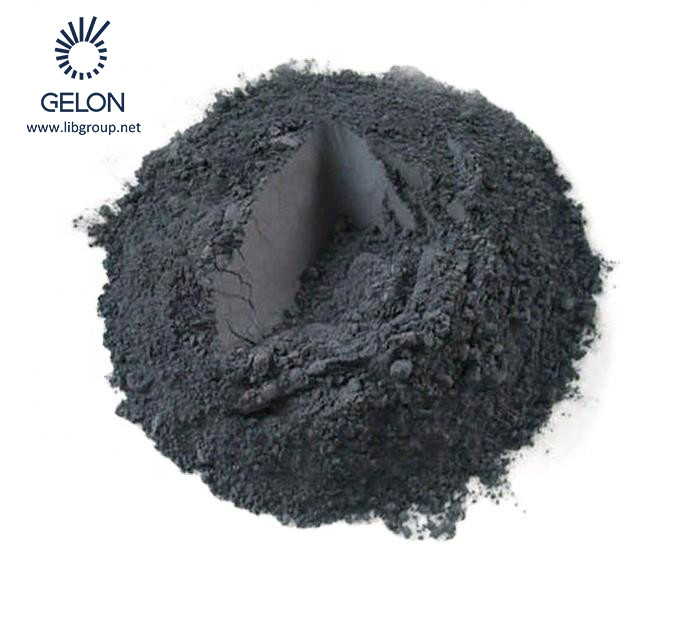

Li Ion Coin Battery Research Battery Cathode Materials Lithium Manganese Iron Phosphate 4
