Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-DE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1275000-2720000 set
Packaging Details: Standard export package
Delivery Time: 30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per month

Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine

Description
Product Name: Dry Electrode Making Machine Electrode Width: 100-300mm
High Energy Density: >500Wh/kg Roll Surface Roughness: Ra≤0.04μm
Roll Cylindricity: ≤0.002mm Roll Radial Runout: ≤0.002mm
Radial Runout Tolerance: ≤±0.002mm Roll Gap Adjustment Accuracyweight: 0.001mm
High Light:

Dry Electrode Making Machine

,

Hot Pressing Film Forming Machine

,

CE Battery Coating Machine

Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine Lithium Solid State Battery Equipment

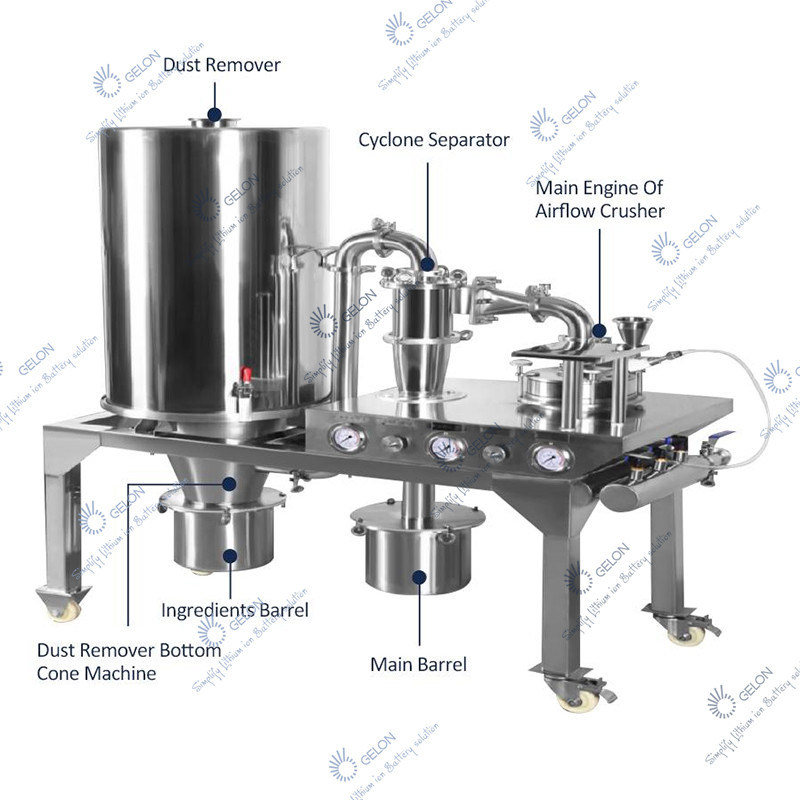

Jet Mill Description:

Working principle:

1. Crushing: high pressure air and material enter the crusher at the meanwhile separately. The material is crushed by high-speed airflow, and the air material is removed from central outlet.

2. Cyclone separator: mixed air powder into the upper cylinder with high speed, powder rotates downward to the lower outlet due to large mass , the gas has small mass and spins out from upward, to make gas and solid separated, and then collect most of powder.

3. Dust filtration bag: The incoming gas will bring a few of dust will be filtered by the bag. The gas with dusty will become to clean gas and discharged from the outlet after filtered, complete separate the gas and solid.



Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 0Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 1








Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 2Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 3Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 4



Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 5Dry Electrode Making Machine Hot Pressing Film Forming Machine Coating Machine 6



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
