Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment
Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

Large Image :  Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP250S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD8700/pcs
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 pcs/month

Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment

Description
Product Name: Pouch Cell Electrode Semi-Auto Stacking Machine Assembly Equipment Stacking Type: Z-folding
Brand: Gelon Dimention: L770*W730*H840mm
Electrode Length: 0-200mm Electrode Width: 0-200mm
Correction Accuracy: 0.05mm Power: 500W
Warranty: 1 Year
High Light:

Electrode Stacking Machine

,

200mm Pouch Cell Equipment

,

Semi Auto Stacking Machine

Pouch Cell Electrode Semi-Auto Stacking Machine Assembly Equipment
Product Description


Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 0

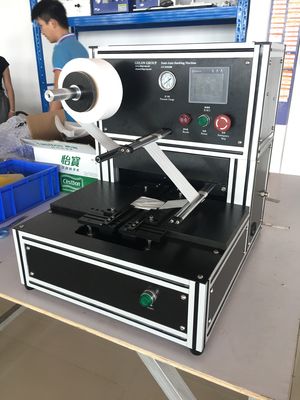

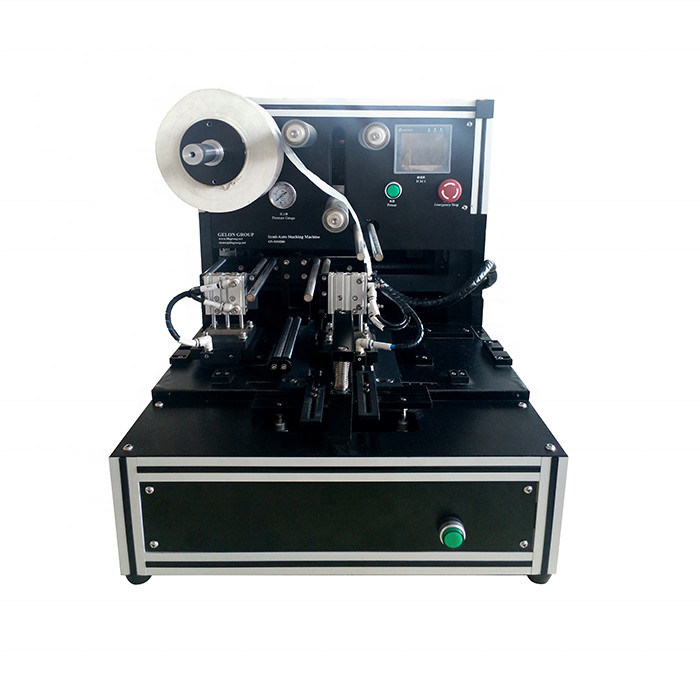

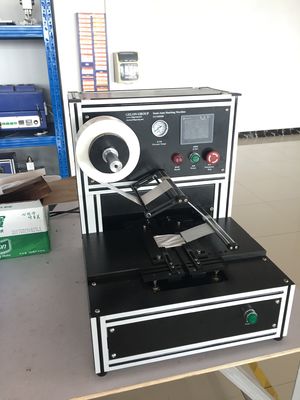

Laboratory semi-auto stacking machine
This equipment is suitable for the stacking process of lithium-ion battery electrodes. The equipment adopts a tension roller structure design, automatic constant tension control of the coil separator, and a motor driven left and right movement to achieve a zigzag stacking. This reciprocation realizes the stacking assembly of the entire battery cell. The separator discharge adopts constant tension, and there is an electrode automatic correction function during the discharge process, and the discharge is neat and consistent; it has the characteristics of high stacking efficiency and high stacking precision. Different electrode sizes can be realized by adjusting the fixture, which is suitable for the research and development and sample production of stacking lithium-ion batteries.

Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 1Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 2Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 3



SPECIFICATIONS FOR POUCH CELL STACKING MACHINE
Max rolls for separator

φ250mm
Electrode size
L(0-200)mm, W(0-200)mm
Fixed Travel Distance
400mm
Power
AC220V/ 50Hz
Air Source
0.5MPa
Stacking Platform
L650mmW400mmH700mm
Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 4

Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 5
Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 6
Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 7
Pouch Cell Electrode Semi Auto Stacking Machine Assembly Equipment 8
