Pouch Cell Electrode Calendaring Machine Heat Pressing Machine

Pouch Cell Electrode Calendaring Machine Heat Pressing Machine
Pouch Cell Electrode Calendaring Machine Heat Pressing Machine Pouch Cell Electrode Calendaring Machine Heat Pressing Machine Pouch Cell Electrode Calendaring Machine Heat Pressing Machine Pouch Cell Electrode Calendaring Machine Heat Pressing Machine

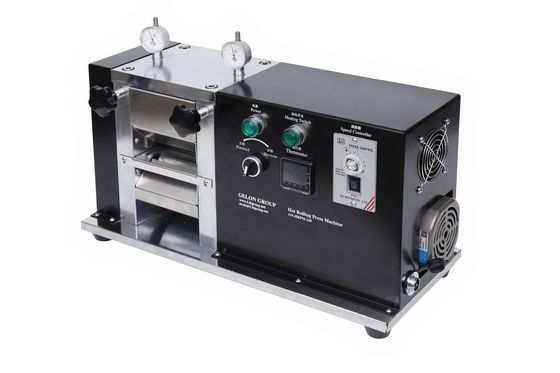

Large Image :  Pouch Cell Electrode Calendaring Machine Heat Pressing Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: MR-100H
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD2800/PC
Packaging Details: Standard Export Packaging.
Delivery Time: 5-10work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10Pcs/Week

Pouch Cell Electrode Calendaring Machine Heat Pressing Machine

Description
Product Name: Electrode Calendaring Machine Heat Pressing Machine Roll Diameter: 2-Φ96mm
Cylindrical Roller: ≤±2um Roll Hardness: HRC62
Rolls Finish: More Than 0.8 Rolling Thickness: 0~2mm Gap Can Be Adjusted
Rolling Width: 0~100mm Operation: Electric
Power: AC220V/50Hz Feed Speed: 0~40mm/s
High Light:

Pouch Cell Calendaring Machine

,

Heat Pressing Machine 220V

,

Electrode Calendaring Machine

Pouch Cell Electrode Calendaring Machine Heat Pressing Machine





Product Description

1. Heating rolling, adjustable thermostat temperature control.
2. Optional with or without heating to work.
3. Roll hardness, hard surface chrome plated, hardness up to HRC62, and rust.
4. Use the ramp to adjust the compression gap, since petty good, high precision adjustment.
5. Rolling high precision cylindrical roller s±2um.
6. Small size, easy to operate, flexible, and quick.

Pouch Cell Electrode Calendaring Machine Heat Pressing Machine 0

Pouch Cell Electrode Calendaring Machine Heat Pressing Machine 1Pouch Cell Electrode Calendaring Machine Heat Pressing Machine 2



Product Parameters



Product name
roller press machine
Roll diameter
2-Φ96mm
Rolling width
0~100mm
Place the roll
vertically
Power
120W
weight
55kg
Feed rate
0~40mm/s
Voltage
AC220V/50Hz
Rolls finish
more than 0.8
