Product Details:
|
| Product Name: | Continuous Hydraulic Calendaring Machine | Powe Supply: | AC380V / 50Hz |
|---|---|---|---|
| Power: | 12KW | Roll Size: | 300-1000mm |
| Effective Rolling Width: | Max 900mm | Working Pressure: | 20-200T |
| Press Gap: | 0-2mm Adjustable | Temperature Accuracy: | 2℃ |

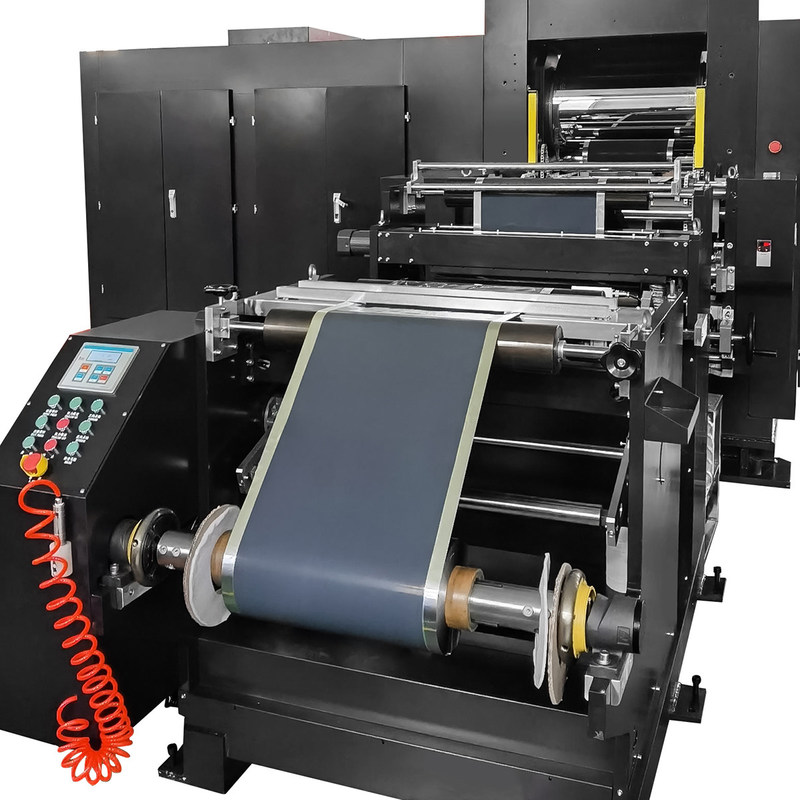

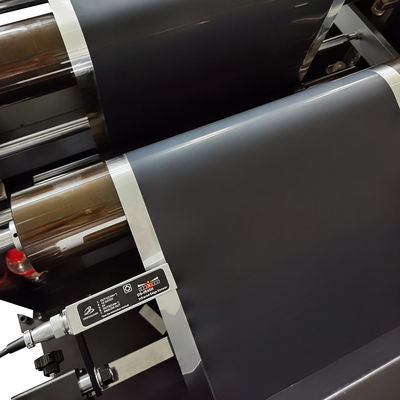

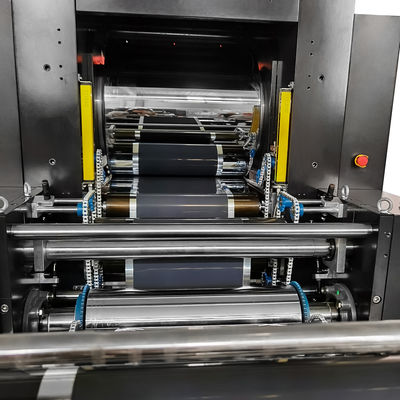

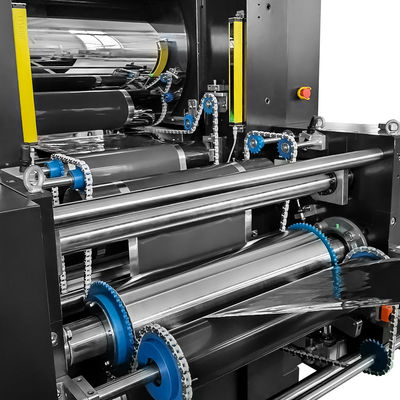

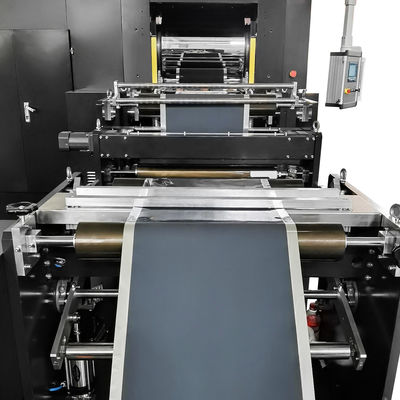

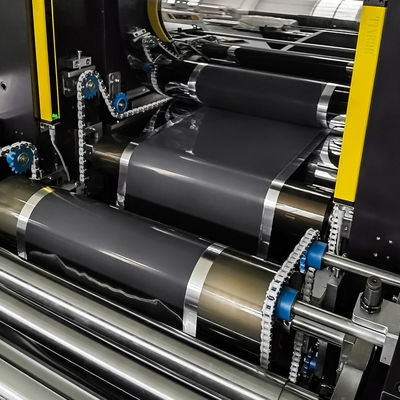

Battery Roller Pressing Machine Continuous Hydraulic Calendaring Machine
Feature:
1. It's an automatic roll to roll calender press system with precision digital pressure control for battery electrode production.
2.It has 450mm width(can be customized) and 400 diameter(can be customized) high strength alloy rollers and can be produce electrode up to 400mm width(can be customized) at 20 m/min(can be customized) max speed.
Gelon as a leading manufacturer of lithium cell industry,We have accumulated 15+ years experiences on lithium ion battery raw material production,battery manufacturing and equipment production.We've been working with many big companies wordwide and has achieved massive projects every corner of the world.
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
