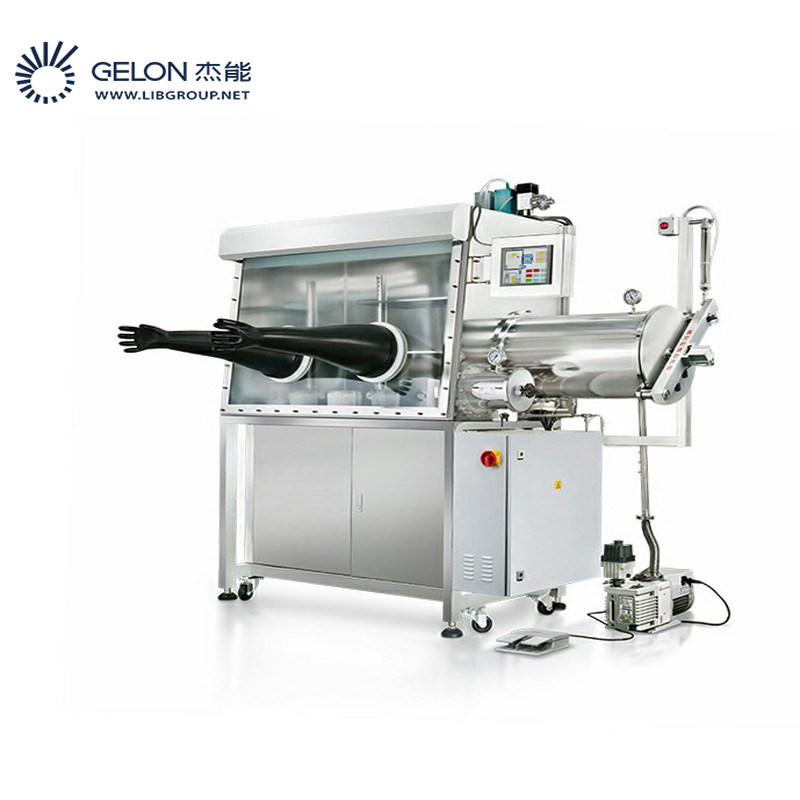

Li Ion Battery Single Station Electrolyte Glove Box With H2O O2 Purification System

Gelon Li-ion Battery Single Station Electrolyte Glove Box with H2O & O2 Purification System

Specifications.

1,Glove box: single cooperation, stainless steel 304, size:1220(L)*750(W)*900(H)mm.Height of underframe is 900mm.

2,Main pipe:stainless steel,valves size DN40.

3,adapter module size: large one: Dia. 360mm,L600mm small one: Dia. 100mm,L300mm.

4,window:tempered glass,thickness 8mm

5,gloves: butyl rubber(imported,7B1532).Diameter of the gloves hole:200mm

6,circulating fan:flow90m3/h,frequency conversion

7, water analyzer :independent display panel;measurement range:0-2000ppm,imported from USA XENTAUR,XDT-PM

8,oxygen analyzer: independent display panel; measurement range:0-10ppm,0-100ppm,0-1000ppm,0-25%,high precision,no drifting,precision 1%

9,organic solvent absorber: installed on the behind,in parallel with main cycle pipe,can absorb the organic solvent first.

Our Services

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
