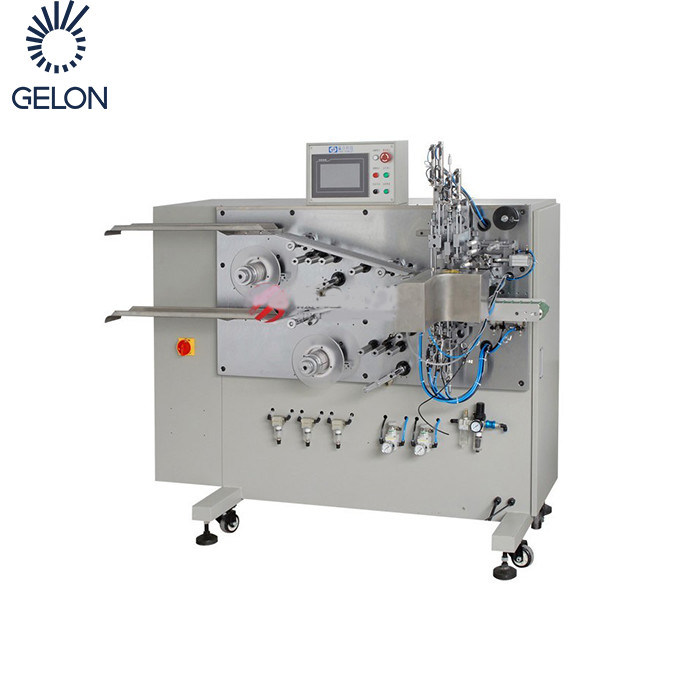

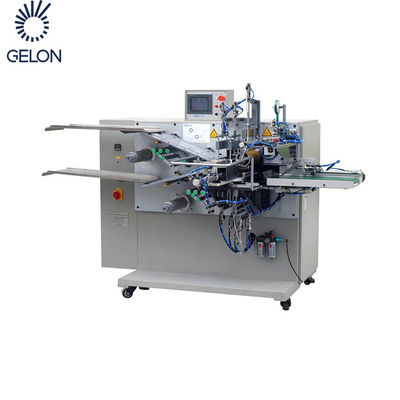

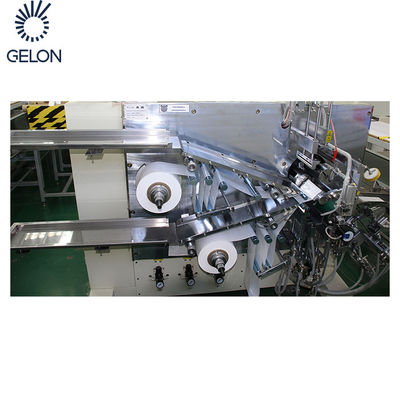

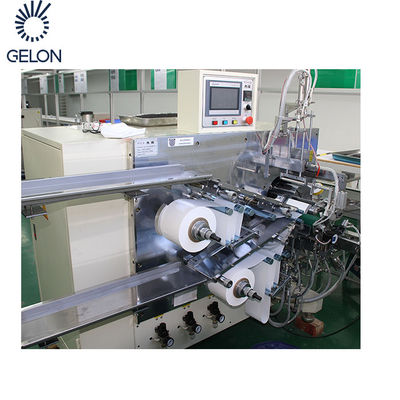

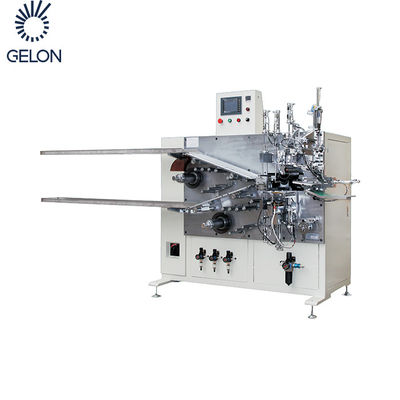

Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making

Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making
Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making

Large Image :  Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: 18650/21700/32650 cylindrical battery
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$17000~30000/set
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month

Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making

Description
Name: Cylindrical Battery 18650 21700 Winding Machine Separator Width: 40-70 Mm
Electrode Width: 38-68 Mm Tape Width: 30-80 Mm
Electrode Length: 400-1500 Mm Core Components: PLC, Motor, Other
Diameter Of Winding Needle: Customization Warranty: 1 Year
High Light:

Semi Automatic Battery Winding Machine

,

21700 Lithium Ion battery winder

,

Lithium Ion Battery Winding Machine

Semi-Automatic Cylindrical Battery 18650 21700 Winding Machine Lithium Ion Batteries Making





This tyep machine is mainly used for precision winding of 18650/21700 batteries. The working process is as follows: the positive and negative plates are manually introduced into the winding part, stacked with the separator, and wound according to the process requirements, the termination tape is automatically attached, and the battery core is automatically discharged.



Power 2KW Max
Electrode Winding Size 14-32mm O.D/25-70mm L
Winding Rod 3.5mm O.D
Separator Winding PP or PE
Thickness Range<100um
Max adaptable size:Thickness <10 mm;Width 30-80mm;Length 30-100mm
Cathode/Anode Winding Cathode:Aluminum foil coated with an active material
Anode:Copper foil coated with graphite
Thickness Range:100-300um
Suggested Overall Length:<1200um
Maximum Width:70mm







Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making 0





Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.



Semi Automatic Cylindrical 18650 21700 Battery Winding Machine Batteries Making 1
