Automatic PLC Control Electrode Slitting Machine EV Battery Electrode Slitting Equipment

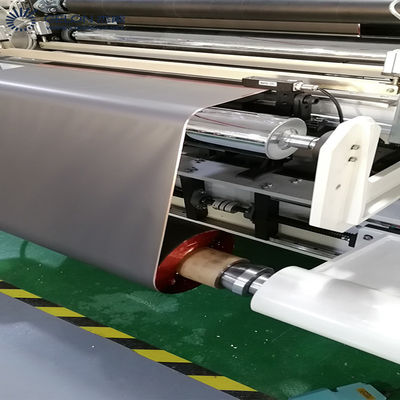

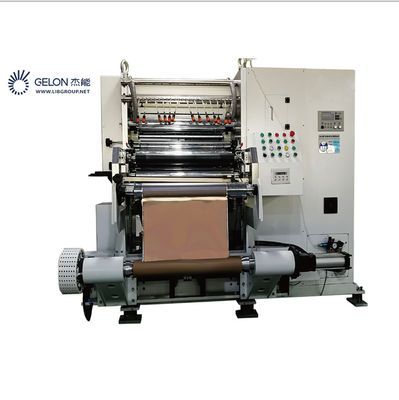

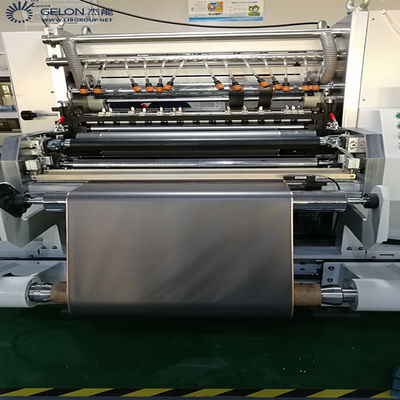

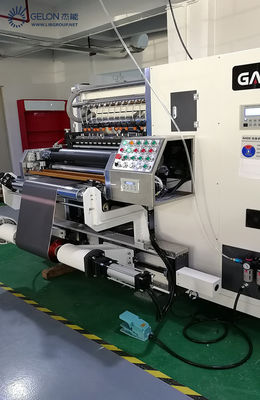

Large Image : Automatic PLC Control Electrode Slitting Machine EV Battery Electrode Slitting Equipment

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	Automatic Slitting Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$50000~100000 set
Packaging Details:	Standard packing/Wood packing
Delivery Time:	20~25days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	30 sets per month

Contact Now

Automatic PLC Control Electrode Slitting Machine EV Battery Electrode Slitting Equipment

Description

Name:	Automatic Slitting Machine	Running Speed:	0-50m/min(continuous Adjustable)
Slitting Electrode Thickness:	50-300micron	Dimension:	265019002000mm
Slitting Width Precision:	±0.05mm	Type:	Can Be Customization
Warranty:	1 Year
High Light:	PLC electrode slitting machine , EV Battery Electrode Slitting Equipment , Automatic electrode slitting machine

Gelon Automatic PLC Control Electrode Continuous Slitting Machine EV Battery Electrode Slitting Equipment

PRODUCT FEATURE:

1.It is used for normal lithium ion battery electrode, EV battery electrode and super capacity electrode slitting.

2.It adopts French un-winder tension system, adjustable constant tension un-winder with digitizing, the electrode tension is stable, and the tension control precision is high, also with high precision EPC system. It also could cut little undesirable electrode, so the adaptability for electrode is good.

3.Re-winder in slip frequency shaft way, it has constant tension or taper to adjust the tension re-winder mode, and with the

auto-tracker for neat, steady and un-wrinkle.

4.Adopts switching cutter module, also could be ordered several modules with customers’ request. It could achieve the battery type transform speediness, easy to operate and maintain, high efficiency.

5.PLC control

6.Can be customization

SPECIFICATION FOR AUTOMATIC CONTINUOUS SLITTING MACHINE
Running Speed	0-50m/min(continuous adjustable)	Slitting type	Disk cutters multiterm roll shear continuously at the same time
Slitting Electrode Thickness	50-300micron	Slitting width precision	±0.05mm
Dimension	265019002000mm	Weight	3.5T

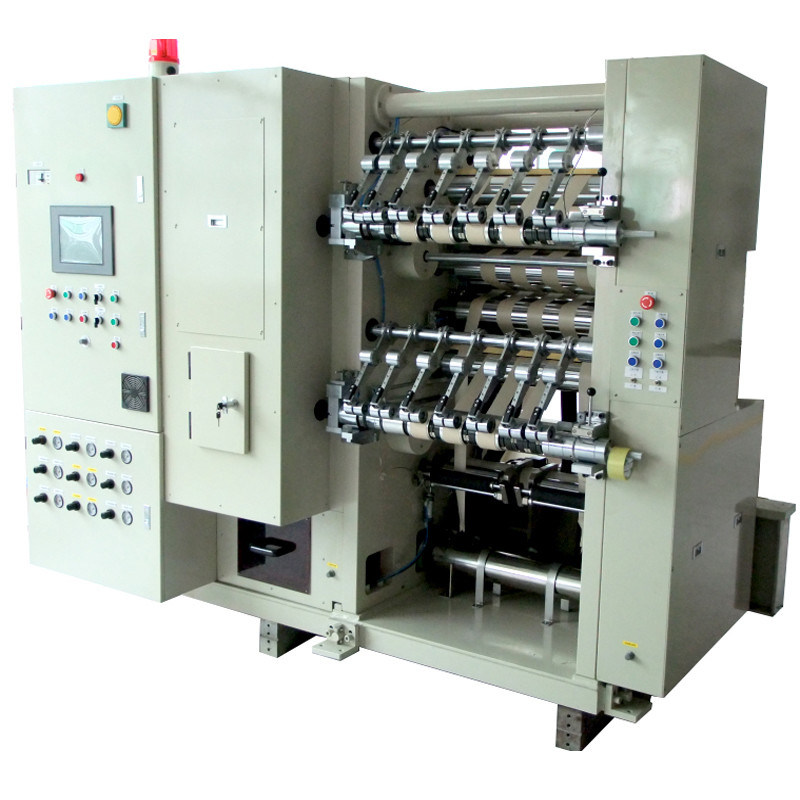

Automatic PLC Control Electrode Slitting Machine EV Battery Electrode Slitting Equipment 0

Our Services

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.

Automatic PLC Control Electrode Slitting Machine EV Battery Electrode Slitting Equipment 2

Tag:

Contact Person: Ekain Zhang

Tel: +8618669965529

Fax: 86-0539-8067529
