Product Details:
|
| Max Sealing Width: | 200mm | Voltage: | AC220/50HZ |
|---|---|---|---|
| Power: | 1.7KW | Additional Accessories: | Air Source |
| Air Source: | 0.6~0.8Mpa | After Warranty Service: | Video Technical Support |
| Product Name: | Presealing Machine | ||
| High Light: | 200mm Pouch Cell Assembly Equipment,Battery Vacuum Pre-sealing Machine,1.7KW Pouch Cell Assembly Equipment |
||

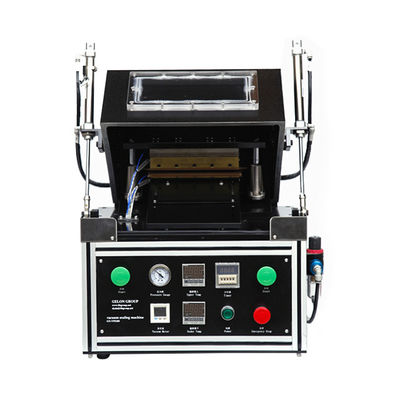

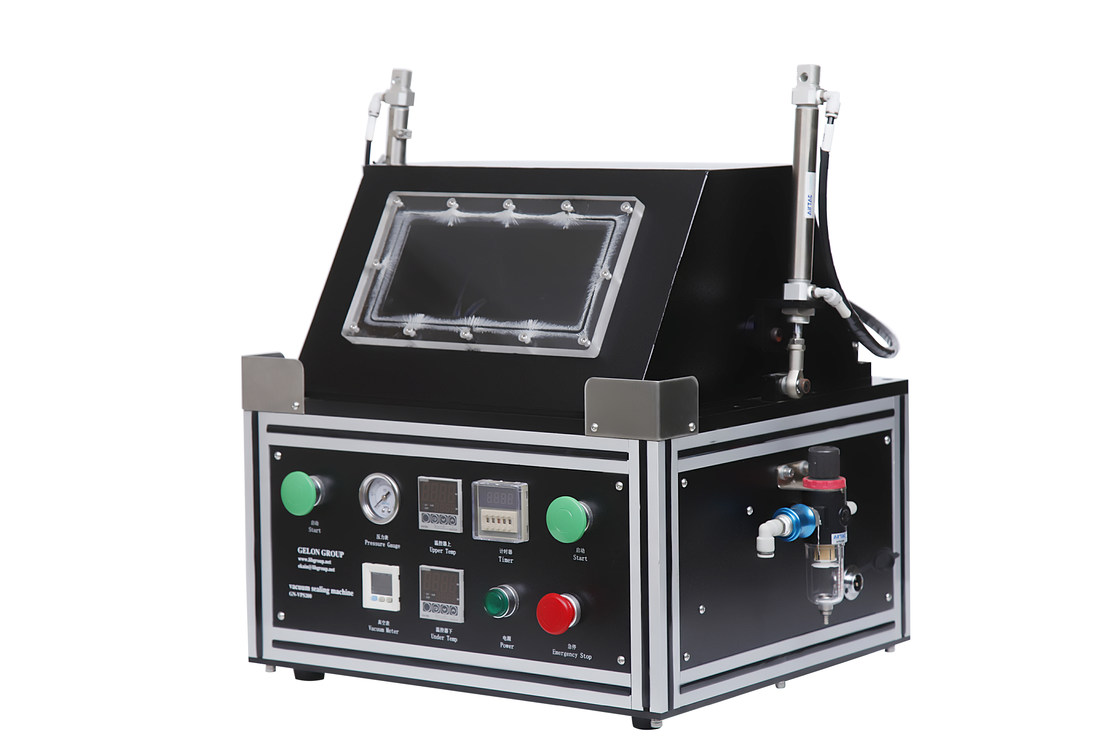

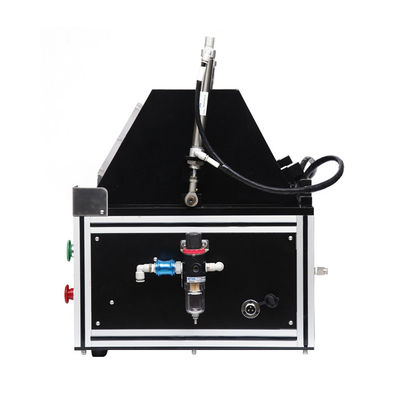

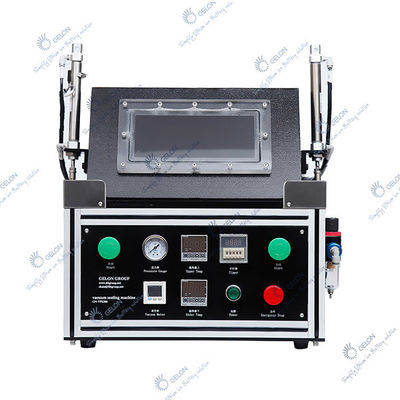

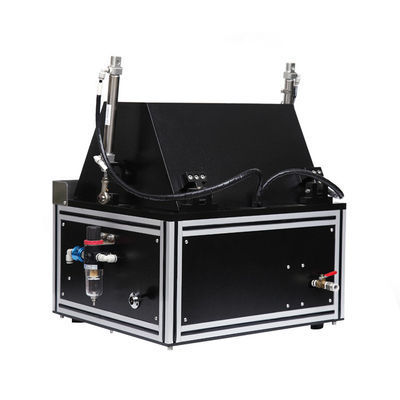

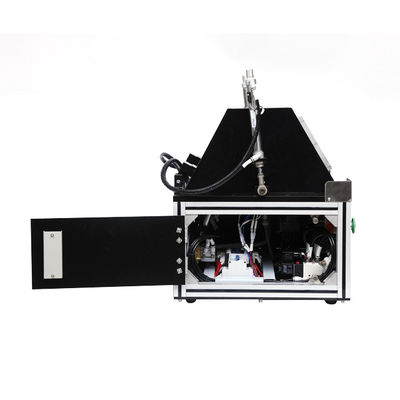

Battery Vacuum Pre-sealing Machine Pouch Cell Assembly Equipment With Competitive Price
PRODUCT FEATURE
| Sealing head length | 200/300/400/500mm | Output | 300-600EA/H |
| Adapt Al laminated film thickness | 0.1-0.3mm | Sealing with | 4mm/5mm/6mm |
| Sealing head parallel | ±0.01mm | Temperature | Room temp to 25°c |
1. The cavity is made of aluminum alloy, corrosion-resistant and structurally sound;
2. The vacuum is adjustable up to -90kpa ~ 0 (buyer's own vacuum pump);
3. The head temperature: room temperature to 250 ℃, the temperature is adjustable;
4. Temperature control accuracy:±3℃;
5. Heat sealing pressure:0~7Kg/cm2 adjustable;
6. Heat sealing time:0~99 seconds adjustable;
7. Edge width:5mm(According to customer requirements);
8. Maximum edge sealing size:200mm;
9. Head parallel: sanlian non-carbon carbon paper, head pressure is 0.6 MPa, the temperature at 200 ℃ seal of uniform
10. Air consumption: about 0.2l compressed gas/each time for sealing.
11. Air pressure working speed:≥180 times/h
12. Power: 800w heating pipe is adopted, and the power consumption is about 1.6kw when heating.
13. Power supply:220V/50Hz;
14. Power:1.7KW;
15. Weight:56.5KG
16. Compressed air source:0.6~0.8Mpa;
