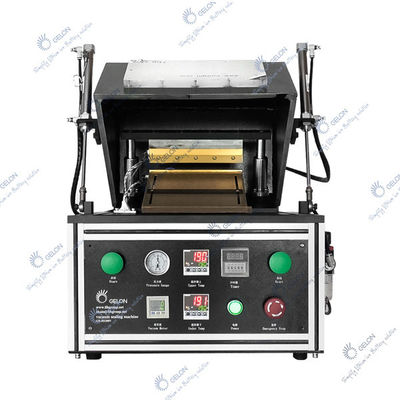

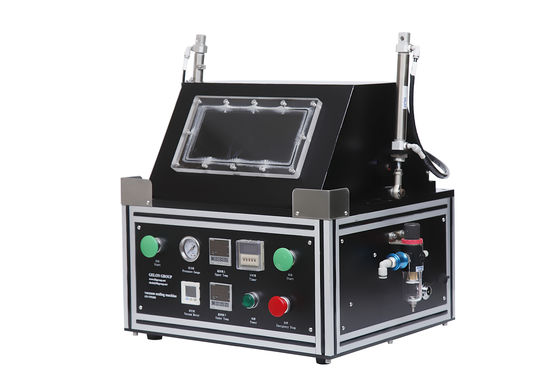

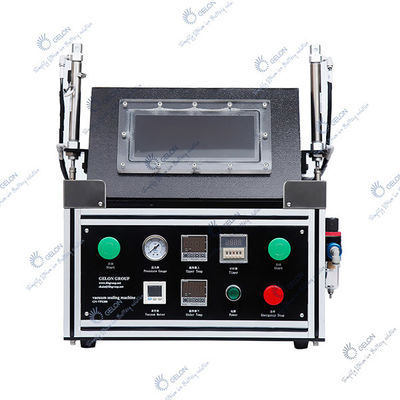

Gelon Laboratory Vacuum Sealer Pouch Cell Vacuum Pre-Sealing Machine In A Glove Box
This equipment is mainly suitable for the vacuum-pumping and hot-pressing packaging of flexible packaging (medium and small size) lithium battery after the liquid injection; The sealing head is made of copper material with good heat transfer effect, saving electricity consumption, improving work efficiency and saving energy compared with similar products. The pressure of the upper and lower head can be adjusted by the pressure regulating valve to meet the requirements of different process parametersThis equipment is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
The upper and lower sealing heads are driven by cylinders and guided by two linear guide sleeves. The upper and lower movement is flexible and the guidance is accurate to ensure the parallelism of the product after sealing; With automatic puncture function, waste liquid recovery device, cover cavity driven by cylinder, guided by linear guide sleeve, flexible up and down movement, accurate guide to ensure product sealing requirements;
|Max. Sealing Dimensions
||200mm(L) x 150mm(W)(Other width can be customized.)
|Edge Sealing Width
||Hard type (without rubber, only for Al case sealing, not suitable for sealing case with tab in between)
Sealing Unit with Chamber Closed: 470mm(L) x 430mm(W) x 480mm(H)
Sealing Unit with Chamber opened: 470mm(L) x 430mm(W) x 559mm(H)
Control Unit: 420mm(L) x 320mm(W) x 220mm(H)
||110V or 208-240V selectable, Single Phase 50/60Hz
-90 kPa Max.
Vacuum pump is not included.
0~7Kg/cm² adjustable: Vacuum chamber lid and sealing die need to be drived by compressed high purity inert gases with recommended 60 psi
Air Compressor is not included.
||50 - 250°C adjustable with control accuracy of +/-2°C
||0 - 99 seconds Adjustable
||One Year limited warranty with lifetime support
|Shipping Weight & Dimension
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
