Laboratory Pouch Cell Pilot Line

Laboratory Pouch Cell Pilot Line
Laboratory Pouch Cell Pilot Line Laboratory Pouch Cell Pilot Line Laboratory Pouch Cell Pilot Line Laboratory Pouch Cell Pilot Line

Large Image :  Laboratory Pouch Cell Pilot Line

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Top and Side sealing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$1600~3500 per set
Packaging Details: Standard packing/Wood packing
Delivery Time: 5~10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

Laboratory Pouch Cell Pilot Line

Description

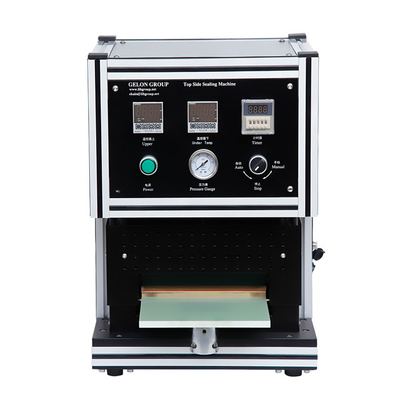

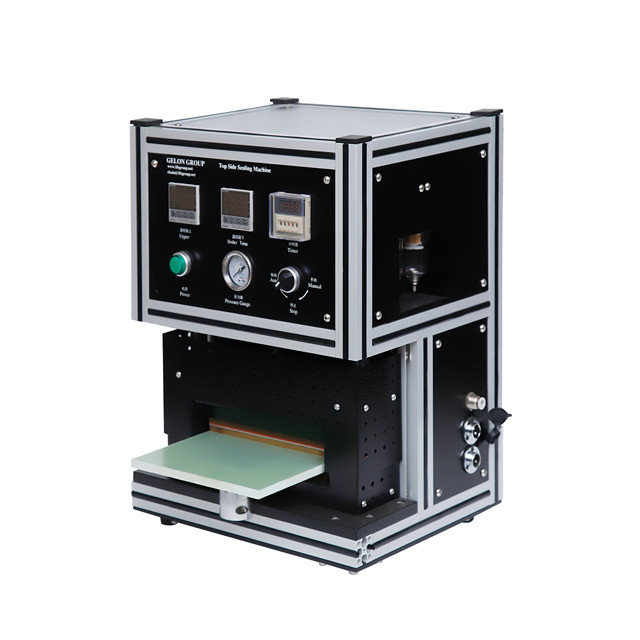

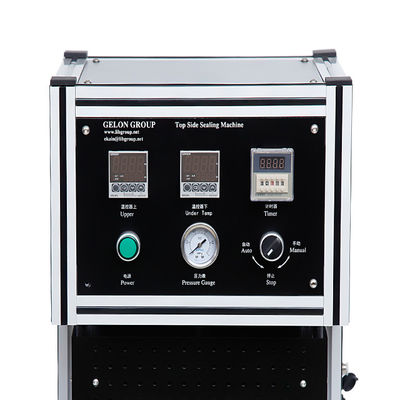

Brand: Gelon Type: Top & Side Sealing Machine
Sealing Width: 3.2~6mm/customization Compressed Air: ≥6kg/cm2
Sealing Time: Standard 2~3s Warranty: 1 Year
High Light:

Laboratory Pouch Cell Pilot Line

,

Batteries Top And Side Sealing Machine

,

Desktop Pouch Cell Pilot Line

Desktop Laboratory Lithium Ion Batteries Top And Side Sealing Machine





Application: heating sealing for top and side sealing before electrolyte filling process


Working principle

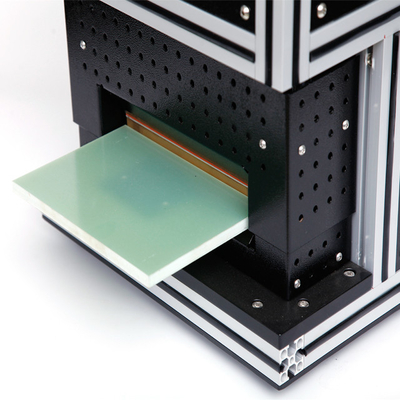

It adopts thermal conductivity used on lithium battery packing materials(Aluminium-plastic film),heating it to make it jointing together.The resistance heating pipe transfer the heat source to sealing head(special made from Copper),then transfer it to aluminium-plastic film under press.The temperatrure can be adjusted and kept by thermocouple and thermostat.



Name Model/Spec Name Model/Spec
Suitable size ≤200*200*12MM Dimension 450×300×400MM
Production capacity 600EA/H Weight 37KG
degree of parallelism of sealing head ±0.01mm Input power supply AC220V 50HZ
Sealing width 8MM Power 1.0KW
Temperature error ±2°C Input air source 0.6Mpa
Compressed air pipe diameter Φ8MM RH 20~90%RH
suitable thickness of aluminium film 0.1-0.3MM Current temperature 10~35°C
Sealing method Soft sealing



It can be customization





Our Services

We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
