Product Details:
|
| Brand: | Gelon | Voltage: | 220V/110V |
|---|---|---|---|
| Temperature Range: | RT+10~250 C | Temperature Resolution: | ±0.1°C |
| Time Range: | 1~9999M | Achieved Vacuum Degree(pa): | -133 |
| Warranty: | 1 Year | ||
| High Light: | Vacuum Heating Drying Oven,220V vacuum drying oven,Laboratory Heating Drying Oven |
||

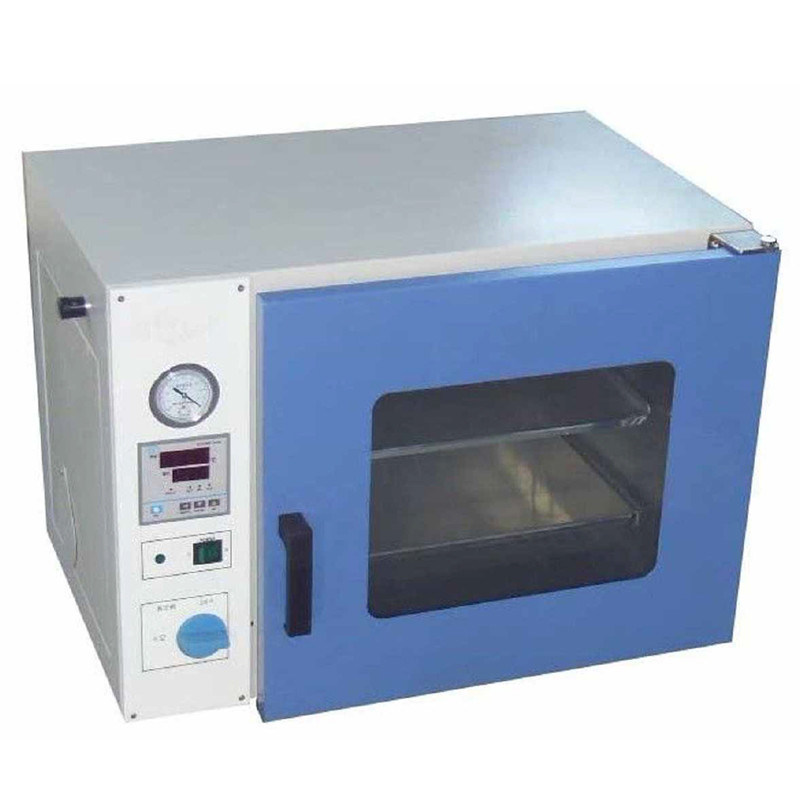

Battery Equipment Gelon Factory Direct Laboratory Vacuum Heating Drying Oven Machine
vacuum drying oven can be used for drying of battery materials and batteries, with programmable temperature controller, PID precision control that supports automatic adjustment, over-radiation protection and anti-theft system, temperature measurement accuracy 0.1 ℃, uniformity 5 ℃, built-in 28 programmable programs, special time period, temperature and power are set separately; the vacuum degree is displayed on the instrument from 0 to -0.1Mpa (relative pressure), the vacuum and air pipeline structure is corrosion-resistant stainless steel pipe, suitable for cavity Clean and maintain long-term performance.
1. Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications. 2. 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber. 3. Silicone door gasket and positive latch door maintain seal at all vacuum levels. 4. Exclusive polycarbonate safety shield protects door glass. 5. Easy-to-clean #304 stainless steel chamber interior. 6. Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
| Model | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6090 |
| Working Room Size(mm) | 300*300*275 | 415*370*345 | 450*450*450 | 560*600*640 |
| Overall Size(mm) | 605*490*450 | 710*560*550 | 610*660*1400 | 720*820*1750 |
| Loading Shelf/Bracket | 1 layer | 2 layer | 2 layer | 3 layer |
| Temperature range | RT+10~250 C | |||
| Temperature resolution | ±0.1°C | |||
| Constant temperature volatility | ±1°C | |||
| Achieved vacuum degree(pa) | -133 | |||
| Time range | 1~9999M | |||
| Total power | 450W/1450W/1400W/2200W | |||
| Power supply requirements | AC220V ± 10% 50 ± 0.5HZ (Single-phase three-wire system) | AC220V ± 10% 50 ± 0.5HZ (Single-phase three-wire system) | ||
Our Services
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
