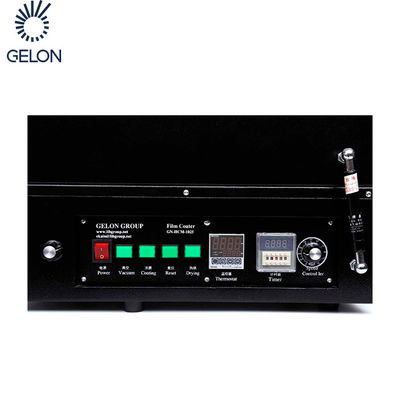

Laboratory Pouch Cell Pilot Line Heating Vacuum Film Coating Electrode Machine

Large Image : Laboratory Pouch Cell Pilot Line Heating Vacuum Film Coating Electrode Machine

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	Coating Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$3000~5000
Packaging Details:	Standard packing/Wood packing
Delivery Time:	20~35days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000 sets per month

Contact Now

Laboratory Pouch Cell Pilot Line Heating Vacuum Film Coating Electrode Machine

Description

Brand:	Gelon	Type:	Vacuum Coating Machine
Dry Temperature:	100C Or To Be Request	Coating Length:	250mm--1000mm
Vacuum Pump:	Needed	Speed:	10-100mm/sec Variable
Warranty:	1 Year
High Light:	Laboratory Pouch Cell Pilot Line , Lab electrode coating machine , 250mm Pouch Cell Pilot Line

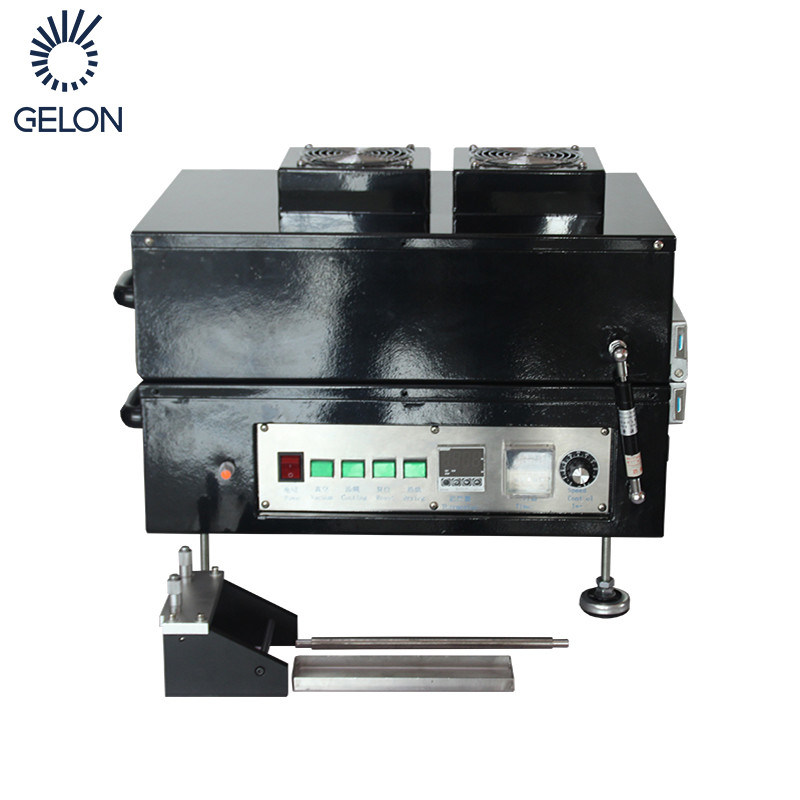

Gelon Battery Equipment Laboratory Heating Vacuum Film Coating Electrode Machine

This product is a small coating machine with automatic drying function. The precision film maker is pushed at a uniform speed to achieve a smooth and uniform coating effect. The equipment uses vacuum suction to fix the substrate, so that the substrate will not be wrinkled during the coating process, so that the coating is smoother. After coating, the sample can be heated and dried by closing the upper cover of the instrument. The maximum temperature can reach 180°C, and the temperature control accuracy is ±2°C.

This device is particularly suitable for the preparation of solid electrolytes and lithium battery pole pieces. It is widely used in the research of various high-temperature coating films, such as battery material films; it can adapt to the development of film-forming technology under high-temperature conditions in the future.


			ITEMS

			SPECIFICATION

			Film coating speed

			0～60mm/sec;

			Maximum stroke

			300mm;

			Vacuum plate

			Aluminum Vacuum Suction Plate;

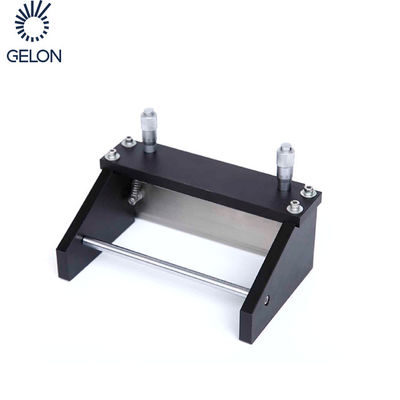

			Adjustable range of scraper

			0.02～3.5mm;

			Heating drying system

			room temperature～180℃, digital display temperature controller, accuracy ±3℃

			Power supply

			220V/50Hz;

			Power

			1200W

			Weight

			about 90KG

Our Services

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
