198V To 242V AC Short Circuit Tester Automotive Lithium Ion Batteries

198V To 242V AC Short Circuit Tester Automotive Lithium Ion Batteries
198V To 242V AC Short Circuit Tester Automotive Lithium Ion Batteries

Large Image :  198V To 242V AC Short Circuit Tester Automotive Lithium Ion Batteries

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: YD2681A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$400
Packaging Details: Standard packing/Wood packing
Delivery Time: 5~10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month

198V To 242V AC Short Circuit Tester Automotive Lithium Ion Batteries

Description
Brand: Gelon Type: YD2681
Used For: Short Circuit Testing Powder Request: 198V-242V AC 47.5Hz-52.5Hz
Warranty: 1 Year
High Light:

242V short circuit tester

,

short circuit current test

,

198V short circuit tester

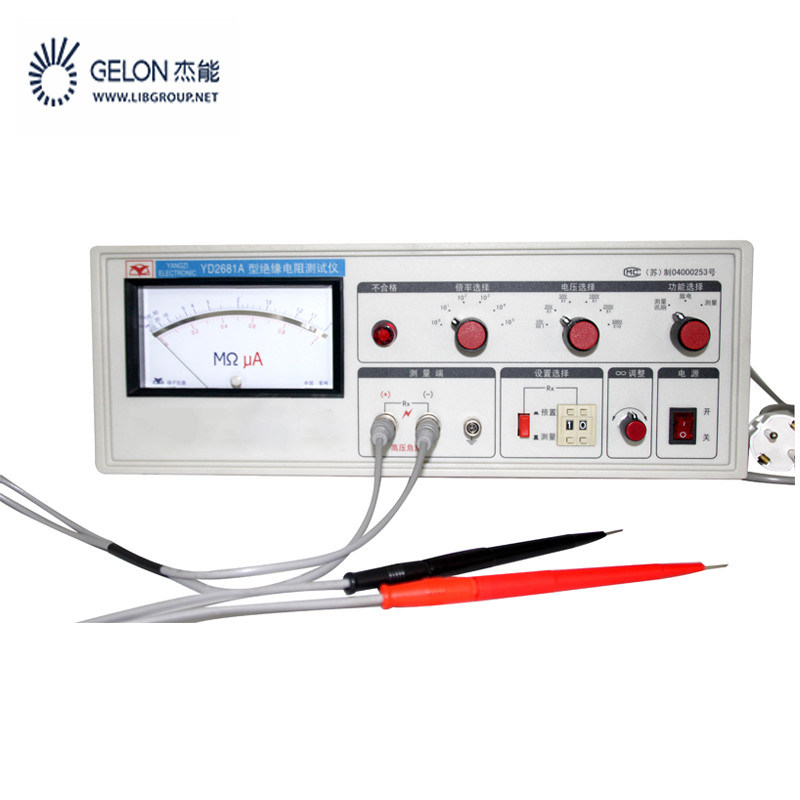

Easy operation YD2681A Short Circuit testing machine Lithium Ion Batteries



Simple operation,direct display
Fast measurement speed,wide resistance measurement range
Fail alarm with sound and light
General purpose insulation resistance tester




Model
YD2681A
Range Setting
manual
Test Voltage
10V,25V,50V,100V,250V,500V
Measurement Speed
Resistance≤0.5s
Capacitance 0.5s-10s
Voltage Accuracy
2%
Comparator Function
Pass and fail,fail alarm
Resistance Measurement Range
105Ω—1013Ω
Operation Temperature And Humidity
0℃-40℃ ≤85% RH
Resistance Accuracy
<1012Ω 5% ≥1012Ω 10%
Power Requirements
198V-242V AC, 47.5Hz-52.5Hz
Display Form
Mirror analog panel meter indication
Dimension
380×140×320(mm)
Weight
7kg







Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
